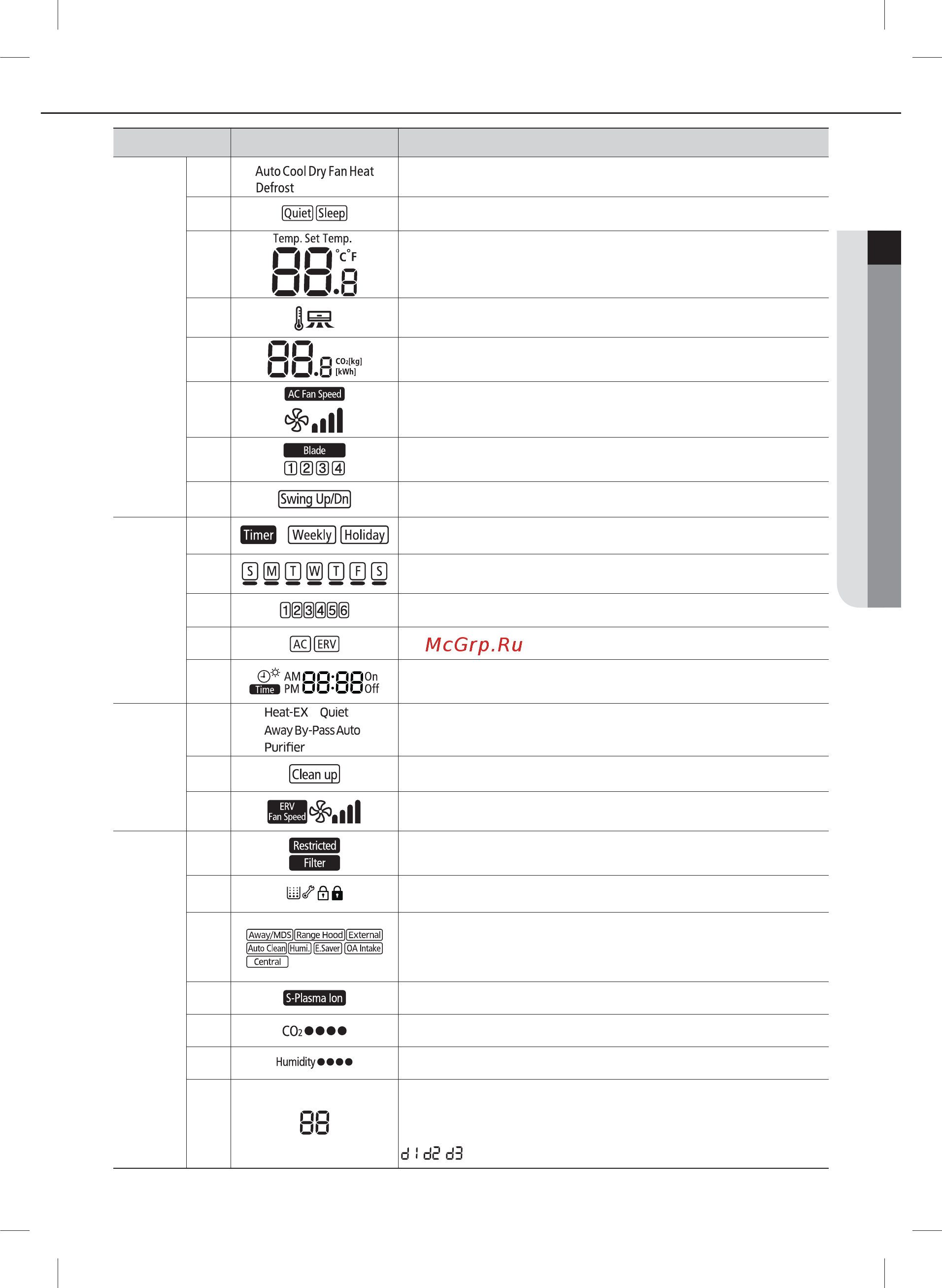

Classication Indication Function
Air
Conditioner
Related
Information
①
Displays Air conditioner operation
②
Displays Quiet/Sleep operation
③
Displays Indoor temperature/Set temperature
④
Displays discharge temperature control
⑤
Displays CO2 /power consumption
⑥
Displays AC fan speed
⑦
Displays Blade selection
⑧
Displays Air swing(Up/Dn)
Schedule
related
information
⑨
Weekly schedule/Holiday setting displays
⑩
Displays Current day() or scheduled day(_)
⑪
Displays Schedule number
⑫
Displays Scheduled device selection
⑬
Displays Current time/summer time/scheduled time
Ventilator
(ERV)
related
information
⑭
Displays Ventilator(ERV) operation
⑮
Displays Clean up
⑯
Displays Ventilator(ERV) fan speed
Common
function
related
information
⑰
Displays Invalid operation /Filter cleaning (filter cleaning period)
⑱
Displays Dust box cleaning alert/check/partial locking/full locking
⑲
Displays Away/Motion detect sensor
/Range hood/External interconnection
control/Auto clean/ Humidifying/Energy saving/Outdoor air supply intake/
Central control
⑳
Displays S-Plasma Ion
Displays Indoor CO2 density
Displays Indoor humidity
Displays remaining time of the auto stop time/ERV delay time
- Solid : Hour unit, Blinking : Minute unit
Displays Demand Response Mode during a Demand Response Event :
, , (It is applicable to some models for Australia only.)
