Transport, Lifting and Positioning
3 TRANSPORT, LIFTING AND
POSITIONING
Refrigerators are supplied assembled (apart from
standard antivibrating rubber supports, that will be
installed on site). The equipment are full of refriger-
ant and oil, in the quantity required for a proper op-
eration.
3.1 Inspection
When the unit is delivered, it is recommended to
check it carefully and to identify any damage oc-
curred during transportation. The goods are shipped
ex-factory, at the buyer’s risk. Check that the delivery
includes all the components listed in the order.
In case of damage, note it down on the carrier’s de-
livery note and issue a claim according to the instruc-
tions provided in the delivery note.
In the presence of any serious damage, that does not
affect the surface only, it is recommended to inform
Itelco-Industry immediately.
Please note that Itelco-Industry may not be held li-
able for any damage to the equipment during trans-
portation, even though the carrier has been appoint-
ed by the factory.
3.2 Lifting
The unit must be lifted by using the hooks inserted in-
to the relevant eyebolts (see the figure).
It is recommended to use a spacer to prevent cables
from damaging the unit.
For the minimum size of the spacer, please refer to
Figure a
for sizes from 1002 to 1902 (R407C) and
from 1602 to 1902 (R134a), to
Figure b
for sizes
from 2202 to 4402 (R407C) and from 2202 to
4802 (R134a).
Before positioning the unit, make sure that the place
of installation is appropriate and sturdy enough to
hold the weight and to withstand the stress caused
by the operation of the whole assembly.
Do not displace the unit on rollers, and do
not lift it with a lift truck.
To lift and displace the unit:
I
Insert and secure eyebolts into the holes marked
on the frame.
I
Connect cables to eyebolts.
I
Hook near the barycentre of the unit.
I
The cables must be long enough to form, if ten-
sioned, an angle of at least 45° with respect to the
horizontal plane.

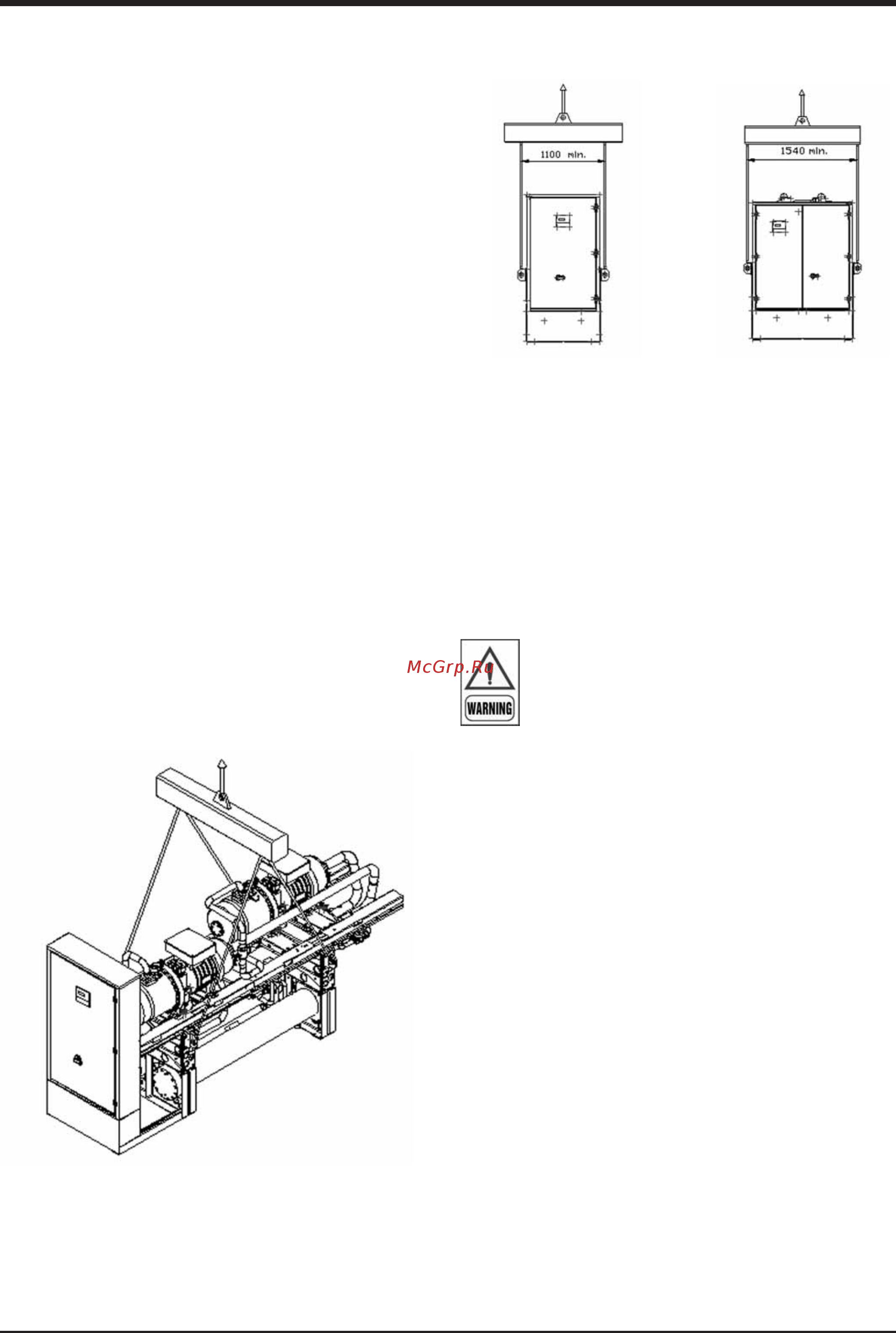

Figure a Figure b
