Page 64
TTeecchhnniiccaall ddaattaa

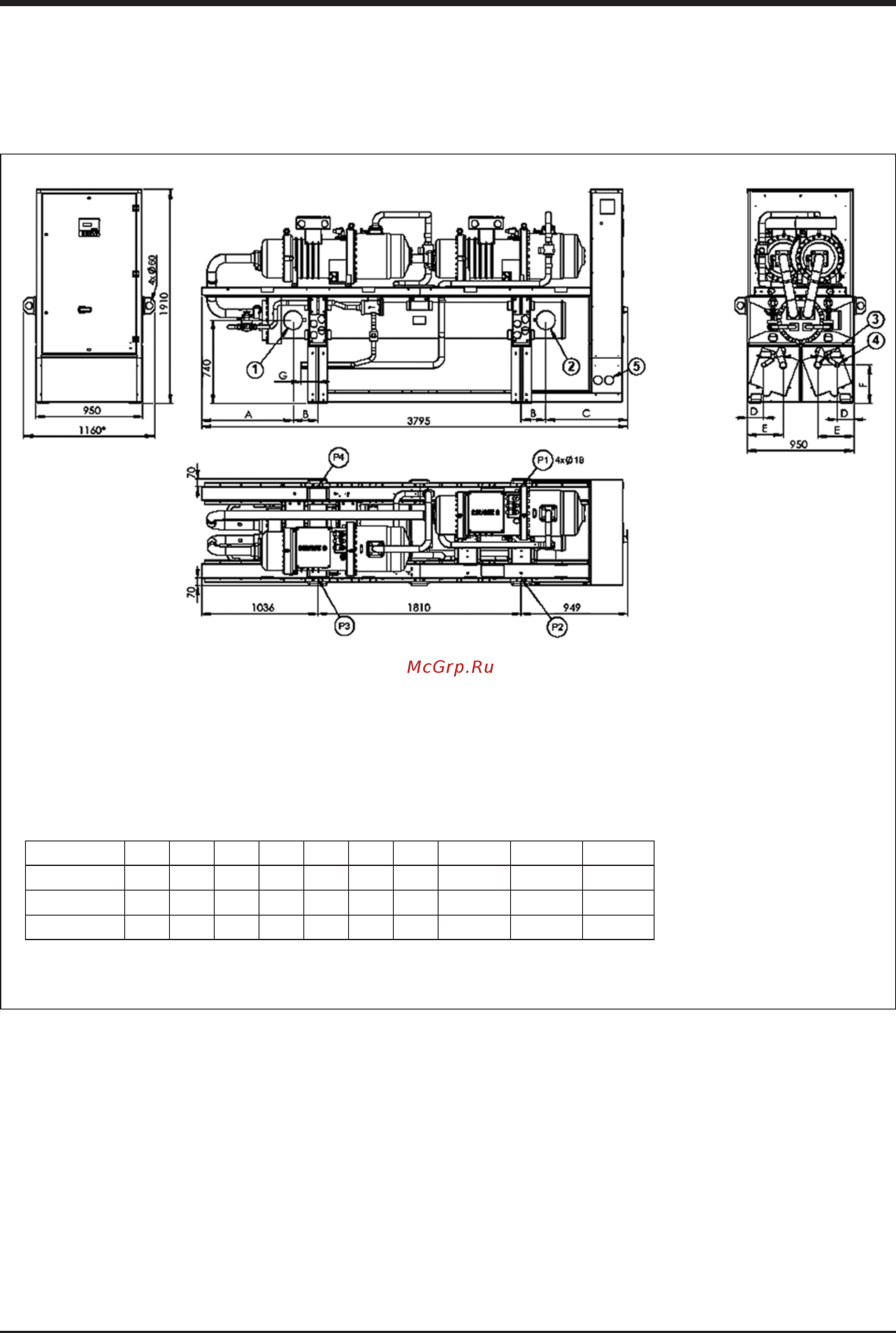

Overall dimensions
SWR 1002 - 1902 STD R407C and SWR 1602 - 1902 STD R134a
LLeeggeenndd::
* Only for shipping
1 Evaporator water inlet
2 Evaporator water outlet
3 Condenser water inlet
4 Condenser water outlet
5 Power inlet
DDiimmeennssiioonnss AA BB CC DD EE FF GG 11--22 33 44
11000022--11220022
800 235 715 230 320 340 150 DN125 (5”) 1 5/8” 1 3/8”
11440022--11660022
800 235 715 230 320 340 150 DN125 (5”) 1 5/8” 1 3/8”
11990022
815 220 730 150 320 340 150 DN150 (6”) 2 1/8” 1 3/8”
Manuale SWS-SWR EN2.qxp 19/11/06 11:20 Pagina 64
