Page 63
English
TTeecchhnniiccaall ddaattaa
8.5 Overall dimensions and maintenance space

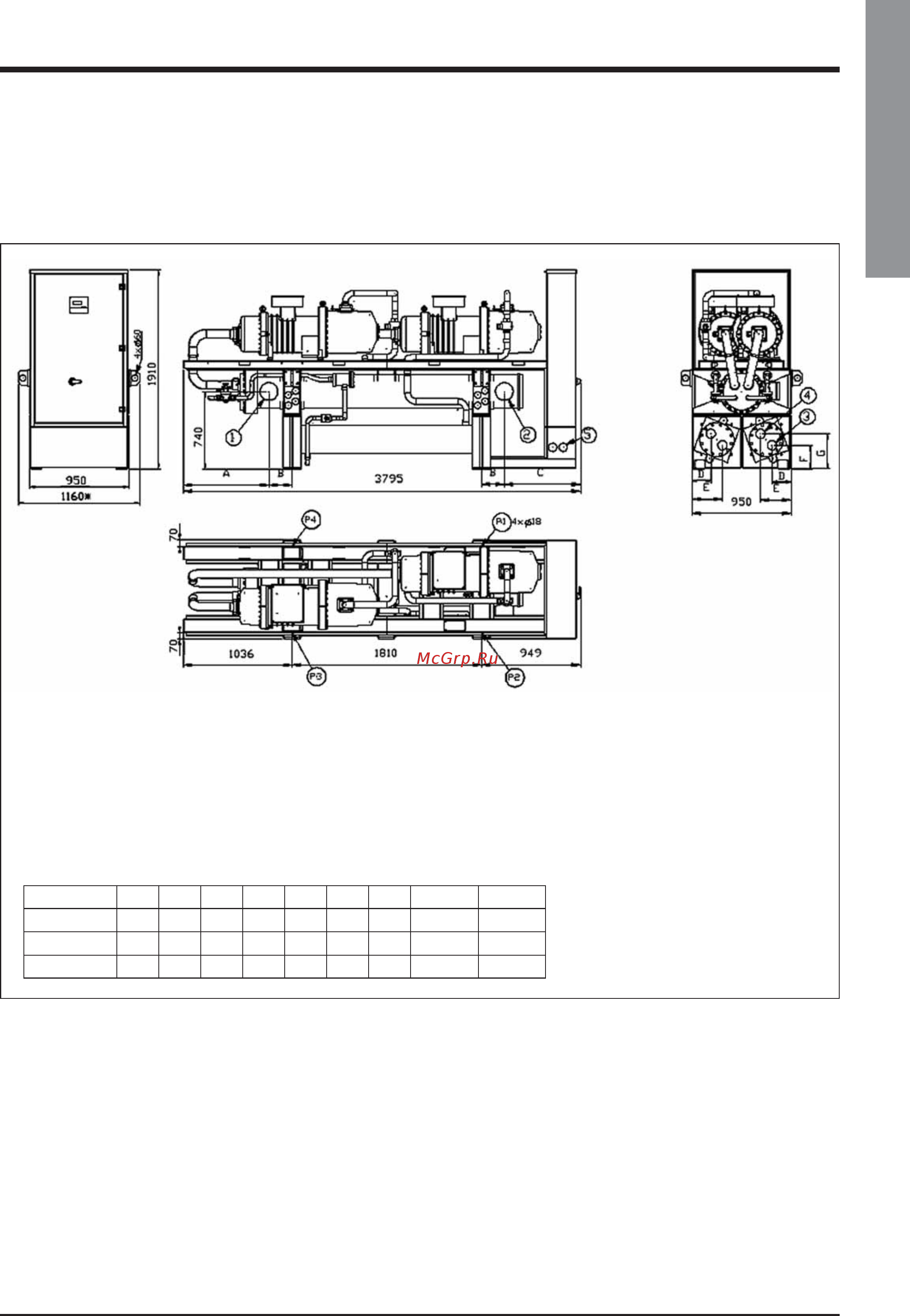

Overall dimensions
SWS 1002 - 1902 STD R407C and SWS 1602 - 1902 STD R134a
LLeeggeenndd::
* Only for shipping
1 Evaporator water inlet
2 Evaporator water outlet
3 Condenser water inlet
4 Condenser water outlet
5 Power inlet
DDiimmeennssiioonnss AA BB CC DD EE FF GG 11--22 33--44
11000022--11220022
800 235 715 205 275 245 315 DN125 (5”)
2” 1/2 GAS F
11440022--11660022
800 235 715 205 275 245 315 DN125 (5”)
2” 1/2 GAS F
11990022
815 220 730 185 295 225 335 DN150 (6”) 3” GAS F
