Page 66
TTeecchhnniiccaall ddaattaa

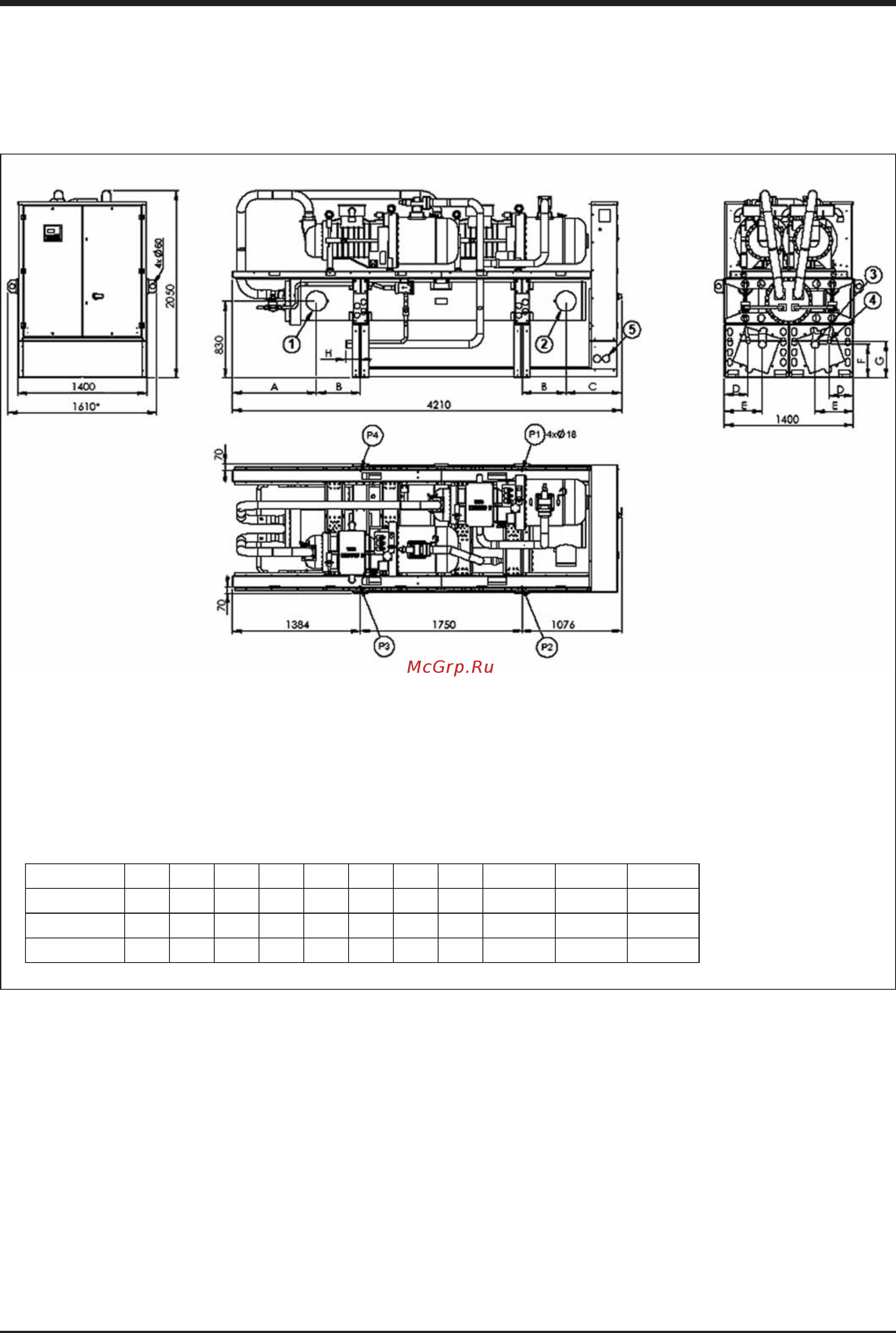

Overall dimensions
SWR 2202 - 4402 STD R407C
eeggeenndd::
* Only for shipping
1 Evaporator water inlet
2 Evaporator water outlet
3 Condenser water inlet
4 Condenser water outlet
5 Power inlet
DDiimmeennssiioonnss AA BB CC DD EE FF GG HH 11--22 33 44
22220022
1160 225 850 260 430 360 390 160 DN200 (8”) 2 1/8” 1 3/8”
22660022--33000022--33440022
1160 225 850 260 395 360 390 160 DN200 (8”) 2 5/8” 1 3/8”
33880022--44220022--44440022
910 475 600 260 410 360 390 160 DN200 (8”) 3 1/8” 1 3/8”
Manuale SWS-SWR EN2.qxp 19/11/06 11:20 Pagina 66
