FUNCTIONAL OVERVIEW 9
English
Functional overview

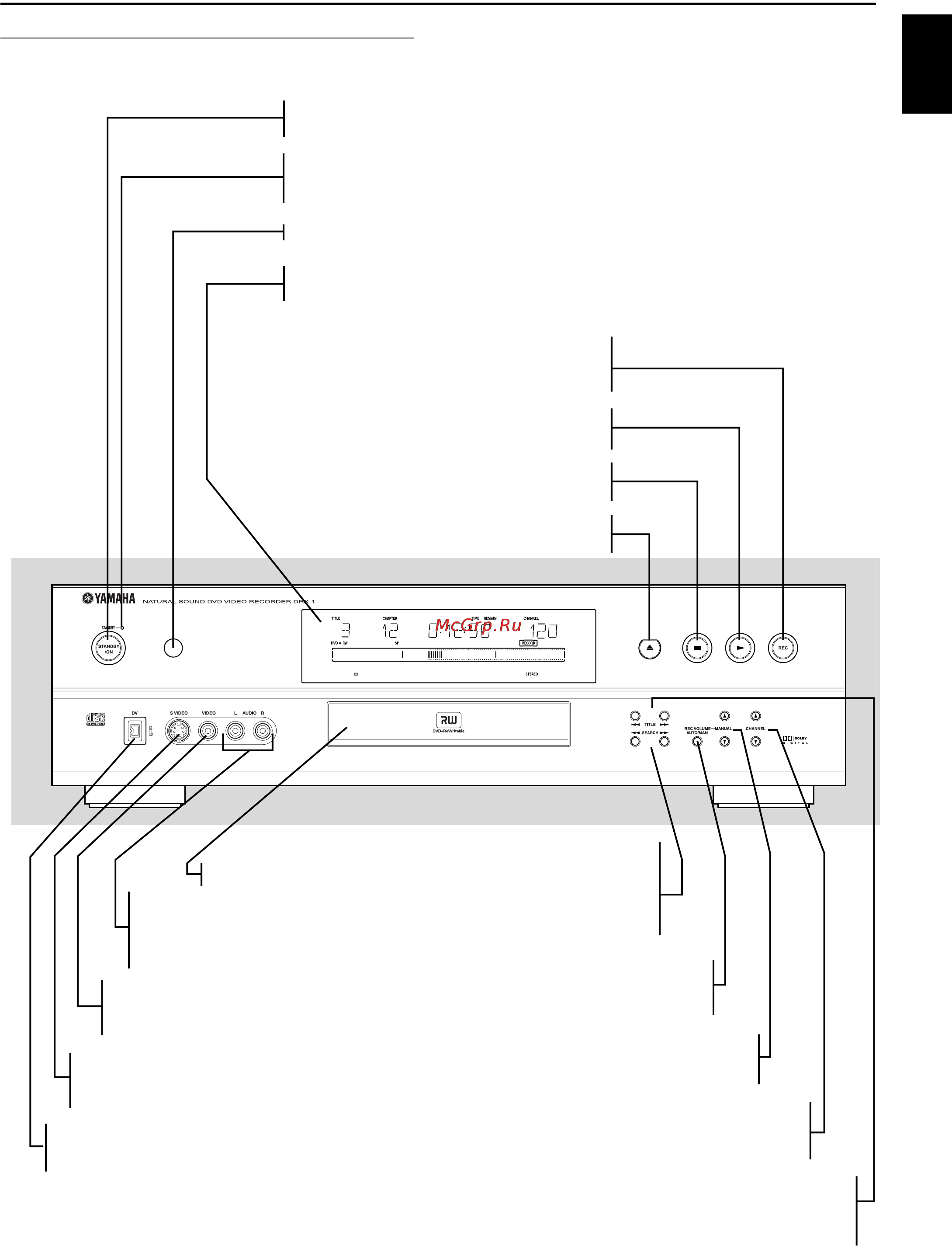

Front of recorder
DIGITAL
STANDBY/ON
- switches the Recorder On or to standby mode (off)
STANDBY indicator
- lights red when the Recorder is in standby mode; Recorder is not operable
- lights green when the Recorder is operable
Infrared remote control receiver
DISPLAY
- displays the current status of the Recorder
/ (open/close)
- opens/closes the disc tray
9 (stop)
(play)
- stops disc playback or recording
2
- starts disc play
REC
- recording of the selected channel
or source
SEARCH
- 5 search backward
- 6 search forward
REC VOLUME AUTO/MAN
- to adjust the recording volume
level automatically or manually
MANUAL
- 34to increase/decrease the
recording volume level
CHANNEL
- to select TV channels manually
When the Recorder is in monitor mode.
TITLE
- ∞ selects previous title/chapter/track/index
or beginning of current title/chapter/track/index
- § selects next title/chapter/track/index
AUDIO In (Left/Right) (CAM1/2)
- Audio left/right input jack to
connect a video camera or video
Recorder
VIDEO In (CVBS) (CAM2)
- Video input jack to connect a
video camera or video Recorder
S-VIDEO In (CAM1)
- Video input jack to connect a
video camera or video Recorder
DV (CAM3)
- Audio/Video input jack to connect a digital
video camera
Disc tray
during disc playback
during disc playback
