10 FUNCTIONAL OVERVIEW

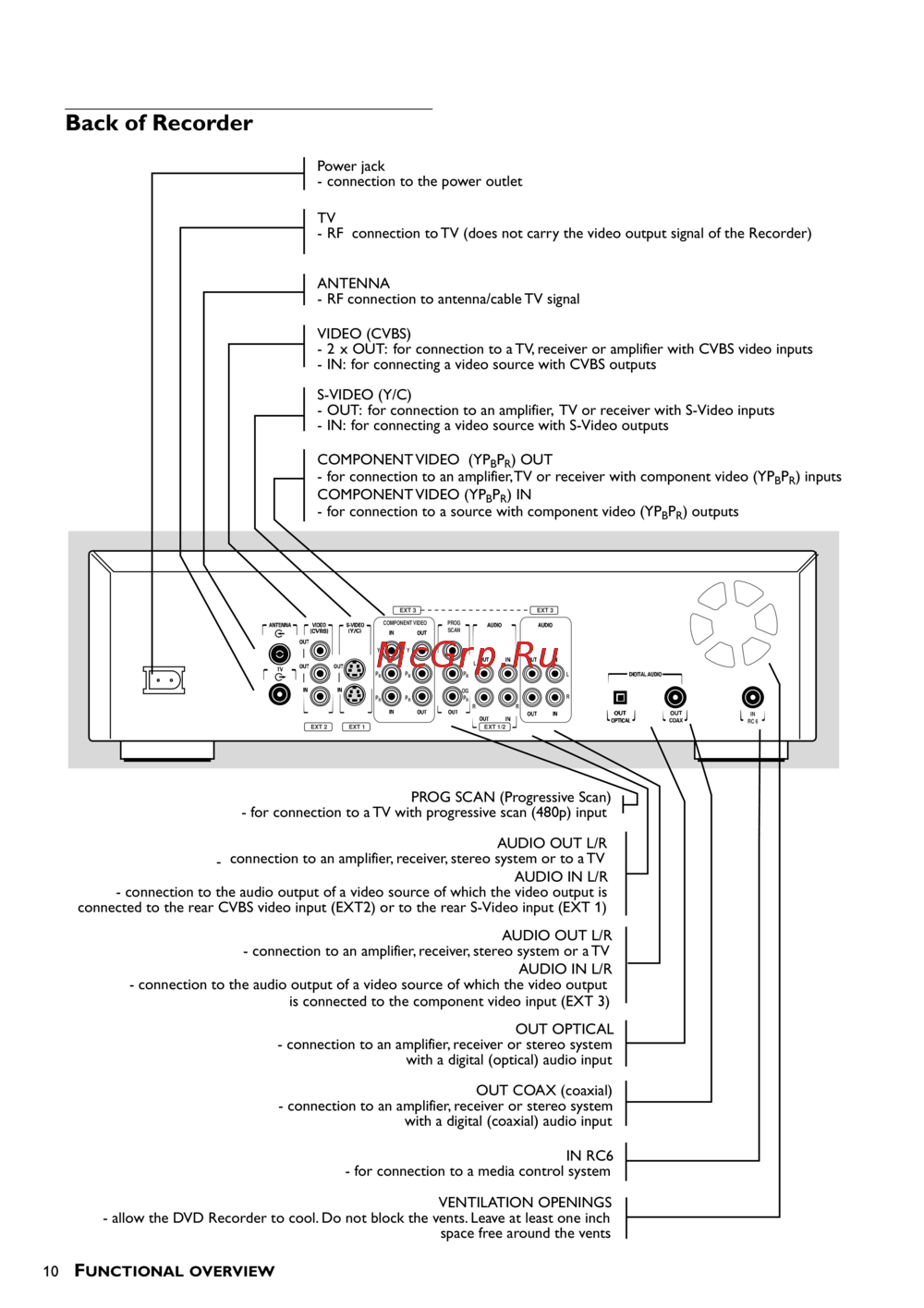

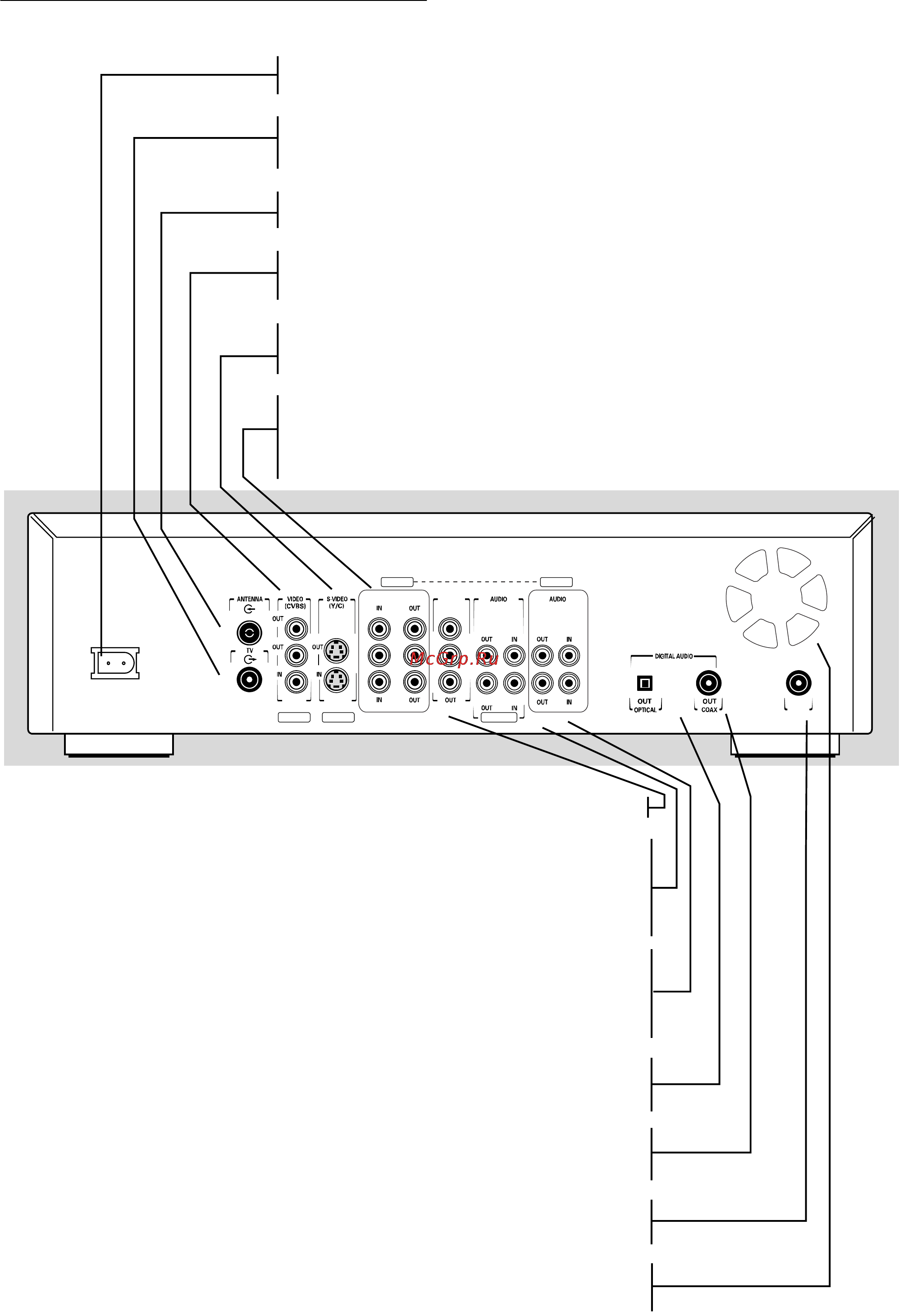

Back of Recorder
COMPONENT VIDEO PROG
OG
SCAN
EXT 2
YY
P
B
P
B
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Power jack
- connection to the power outlet
ANTENNA
- RF connection to antenna/cable TV signal
VIDEO (CVBS)
- 2 x OUT: for connection to a TV, receiver or amplifier with CVBS video inputs
- IN: for connecting a video source with CVBS outputs
S-VIDEO (Y/C)
- OUT: for connection to an amplifier, TV or receiver with S-Video inputs
- IN: for connecting a video source with S-Video outputs
COMPONENT VIDEO (YP
B
P
R
) OUT
- for connection to an amplifier, TV or receiver with component video (YP
B
P
R
) inputs
COMPONENT VIDEO (YP
B
P
R
) IN
- for connection to a source with component video (YP
B
P
R
) outputs
TV
- RF connection to TV (does not carry the video output signal of the Recorder)
PROG SCAN (Progressive Scan)
- for connection to a TV with progressive scan (480p) input
AUDIO OUT L/R
-
connection to an amplifier, receiver, stereo system or to a TV
AUDIO IN L/R
- connection to the audio output of a video source of which the video output is
connected to the rear CVBS video input (EXT2) or to the rear S-Video input (EXT 1)
OUT OPTICAL
- connection to an amplifier, receiver or stereo system
with a digital (optical) audio input
OUT COAX (coaxial)
- connection to an amplifier, receiver or stereo system
with a digital (coaxial) audio input
AUDIO OUT L/R
- connection to an amplifier, receiver, stereo system or a TV
AUDIO IN L/R
- connection to the audio output of a video source of which the video output
is connected to the component video input (EXT 3)
IN RC6
- for connection to a media control system
VENTILATION OPENINGS
- allow the DVD Recorder to cool. Do not block the vents. Leave at least one inch
space free around the vents
