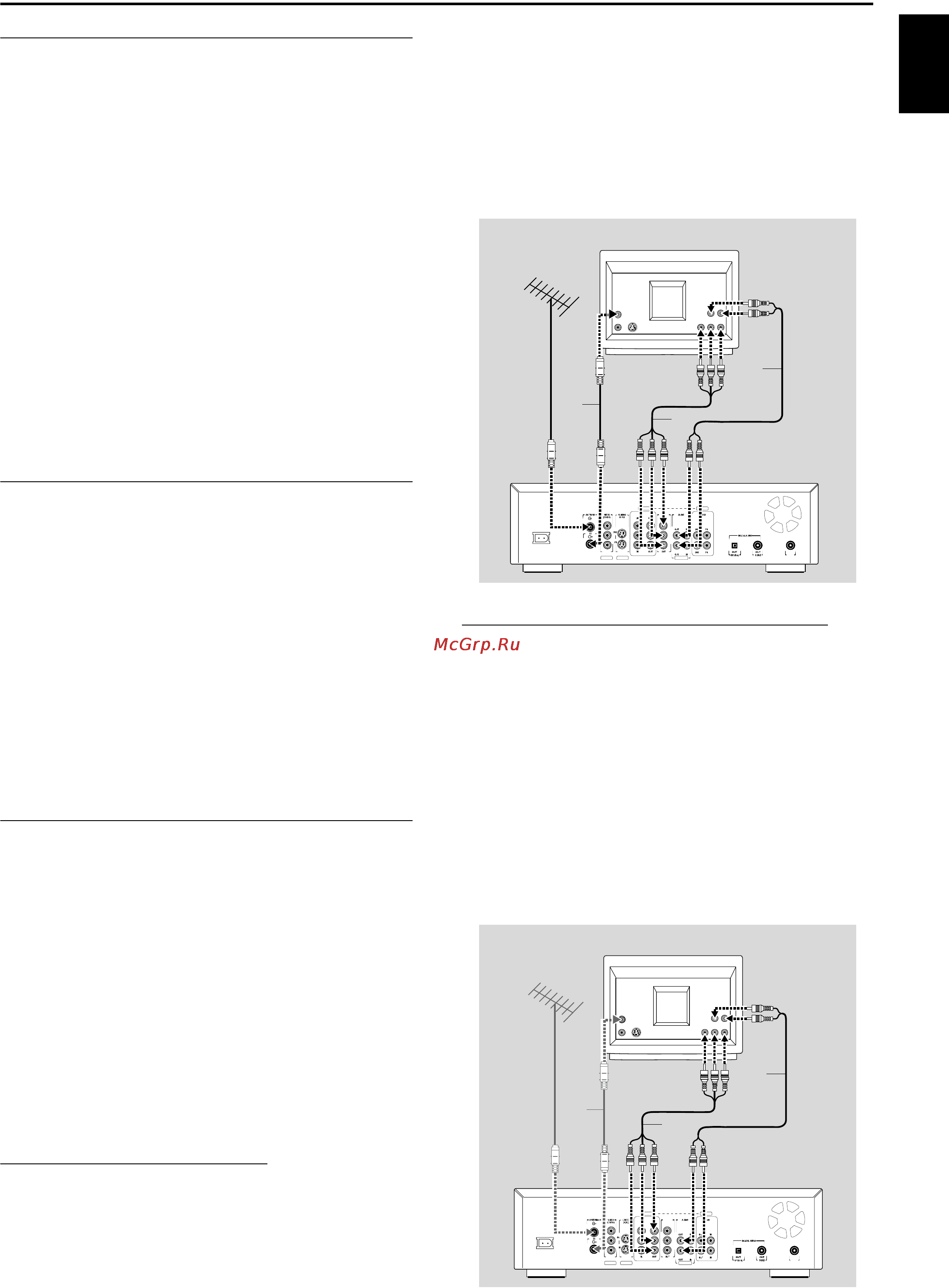

![Yamaha DRX-1 [7/56] Progressive scan connection](/views2/1041403/page7/bg7.png)
INSTALLATION 3
English
Installation
Connections - back of your DVD
Recorder
- Please refer to your TV, VCR, Stereo and any other User
Manual(s) as necessary to make the optimal connections.
- Do not connect the power cords until all other
connections are made.
- Do not connect your DVD Recorder to your TV via your
VCR. The video quality could be distorted by the copy
protection system.
- For better sound, connect the Recorder’s audio outputs
to your amplifier, receiver, stereo system or A/V
equipment. See ‘Connecting to an A/V receiver or A/V
amplifier.’
Caution:
Do not connect the Recorder’s audio output to the
phono input of your audio system. This could
damage your equipment.
Step 1: Connecting to the
antenna or Cable TV signal
1 Remove the antenna cable from your TV and connect
it to the ANTENNA jack at the back of the DVD
Recorder.
2 Connect one end of the antenna cable supplied (1) to
the TV jack on the DVD Recorder and the other end
to the antenna input jack on your TV.
The antenna connection transmits TV channels through
the Recorder to the TV. You still need a video connection
to send DVD playback from the Recorder to the TV. See
‘Connecting to a TV.’
Step 2: Connecting to a TV
This DVD Recorder is equipped with Directional
Correlational Deinterlacing, known as DCDi™. DCDi was
developed by Faroudja Laboratories for ultra-high-end
home theater equipment to eliminate the jagged edges
that appear when standard interlaced video is viewed on
Progressive Scan displays. This patented technology
identifies edges at any angle in moving video images and
interpolates along the edge, pixel-by-pixel, to produce
smooth, natural looking images.
To obtain the highest possible picture and sound quality
from your TV, use the Progressive Scan video jacks on the
DVD Recorder and TV.
Progressive Scan connection
● Connect the PROG SCAN OUT (YP
B
P
R
) jacks on the
Recorder to the corresponding IN jacks on the TV,
using the Component Video cable supplied (2) as
shown in the drawing.
● Connect the audio Left (white) and Right (red) OUT
jacks on the Recorder to the corresponding AUDIO
IN jacks on the TV using the audio cables supplied (4).
Note:
The PROG SCAN OUT jacks do not carry Closed Captioning or
V-chip signals. These features will not be available if you use the
Progressive Scan connection.
Component Video (YP
B
P
R
) connection
If your TV does not have Progressive Scan, connect the
DVD Recorder with the Component Video jacks.
● Connect the COMPONENT VIDEO (YP
B
P
R
) OUT
jacks to the corresponding IN jacks on the TV, using
the Component Video cable supplied (2) as shown in
the drawing.
● Connect the AUDIO Left (white) and Right (red)
OUT jacks to the corresponding AUDIO IN jacks on
the TV using the audio cable supplied (4).
● Do not connect a Progressive Scan video source to
the Component Video IN jacks on your TV.
Apparatus Claims of U. S. Patent Nos.
4,631,603, 4,577,216, 4,819,098, and 4,907,093
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
B
P
B
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
2
1
4
TV
Apparatus Claims of U. S. Patent Nos.
4,631,603, 4,577,216, 4,819,098, and 4,907,09 3
licensed for limited viewing uses only.
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
B
P
B
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
2
4
TV
1
