INSTALLATION 5
English
If you cannot connect your DVD Recorder to an A/V
receiver with a Multi-channel decoder, choose one of the
following alternatives.

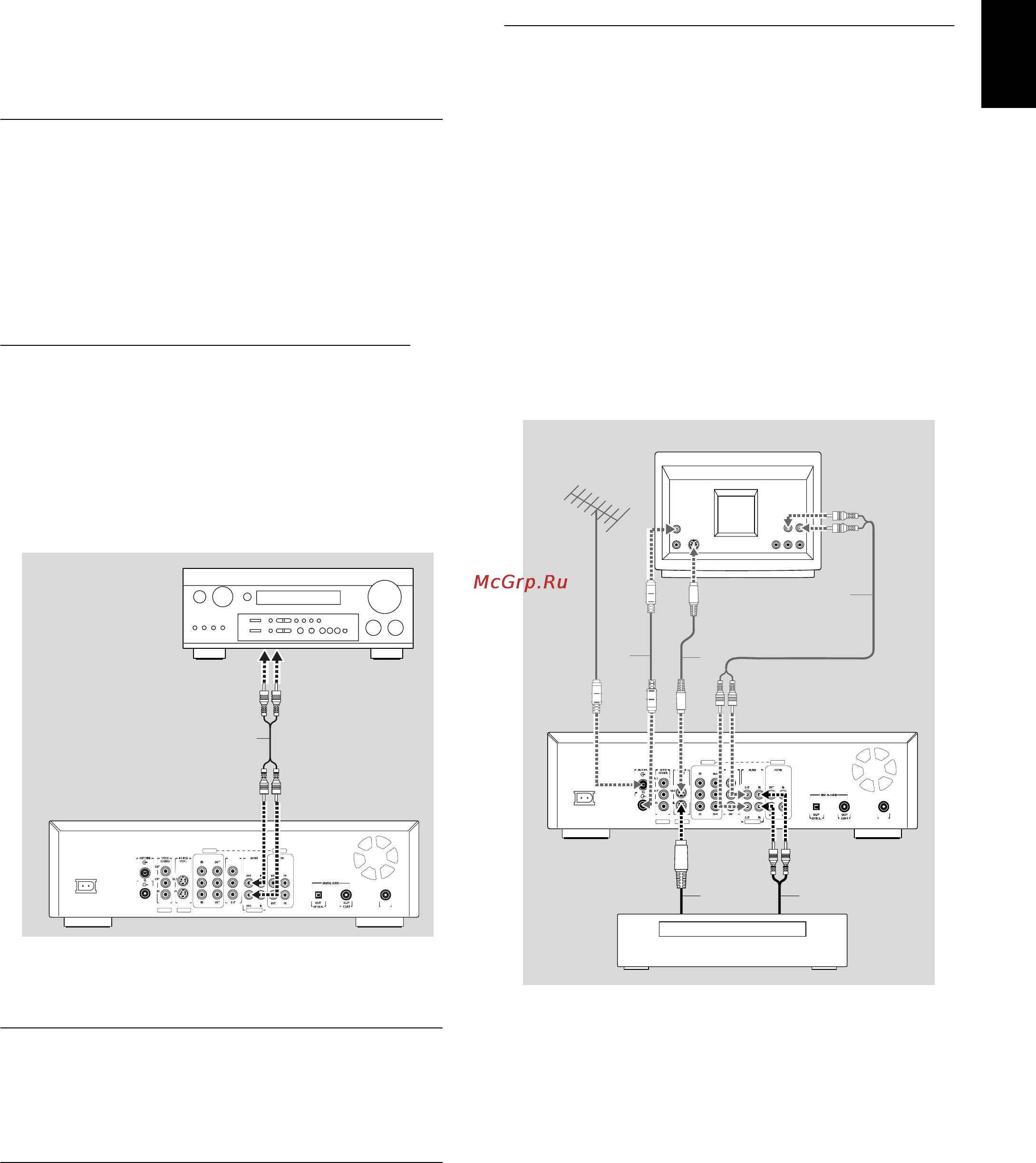

Connecting to a receiver equipped with two
channel digital stereo (PCM)
● Connect one of the Recorder’s DIGITAL AUDIO
OUT jacks to the corresponding IN jack on your
receiver. Use the supplied yellow video (CVBS) cable
or an optional digital optical audio cable.
● After installation set Digital Output to PCM only (see
‘User preferences.’)
Connecting to a receiver equipped with
Dolby Pro Logic
● Make a video connection between the DVD Recorder
and the TV.
● Then connect the Recorder’s Left and Right AUDIO
OUT jacks to the corresponding inputs on the Dolby
Pro Logic Audio/Video receiver, using the audio cable
supplied (4).
● Make the appropriate Sound settings for Analog
Output in the user preferences menu.
Connecting to a TV with a Dolby Pro Logic
decoder
● Connect the Recorder to the TV as described in
chapter ‘Connecting to a TV.’
Connecting to a receiver with two channel
analog stereo
● If you have a receiver with only two-channel analog
stereo and none of the above mentioned sound
systems, connect the Left and Right AUDIO OUT
jacks of the DVD Recorder to the corresponding
AUDIO IN jacks on your receiver, amplifier or stereo
system. Use the audio cable supplied (4).
Step 4: Connecting to other
equipment (optional)
To connect other devices to the Recorder, use the
available IN jacks on the back of the Recorder.
-Set top box (cable box or satellite receiver)
-VCR
-DVD Video player
Most pre-recorded video cassettes and DVD discs are
copy protected. If you try to copy them, the
DVD Recorder display will show ‘COPY PROTECT.’
This recorder is not equipped with CBCT or C3
technology to select channels on a set top box
automatically.
Do not connect a Progressive Scan video source to the
COMPONENT VIDEO IN jacks (EXT3). The DVD
Recorder cannot record Progressive Scan video signals.
Do not connect the Recorder to a VCR, then connect the
VCR directly to the TV. If you are not using the DVD
Recorder, turn off its power to avoid interfering with VCR
playback.
AMPLIFIER
Apparatus Claims of U. S. Patent Nos.
4,631,603, 4,577,216, 4,819,098, and 4,907,093
licensed for limited viewing uses only.
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
B
P
B
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
4
Apparatus Claims of U. S. Patent Nos.
4,631,603, 4,577,216, 4,819,098, and 4,907,093
licensed for limited viewing uses only.
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
B
P
B
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Set top box
TV
1
3
3 4
4
