18 OPERATION
Index Picture Screen
The Index Picture Screen displays an overview of the titles
recorded on the disc. It appears automatically when
playback or recording is stopped and a DVD+RW /
DVD+R is in the Recorder. (The DVD+RW / DVD+R
must have recorded content.) Each title is represented by
an index picture. Next to the index picture, the program
name, length of recording and mode in which it was
recorded and recording date of the title are shown. If no
name is known, the DVD Recorder will fill in the source
(i.e. channel recorded) and the time of the recording
instead. Empty spaces (erased titles or blank space at the
end of the disc) are also shown.
● A maximum of three titles will be shown on the
screen at once. If more titles are present, you can
move to those with w/v (down/up cursor).
● On the right side of the Index Picture Screen, you can
see the disc bar. This gives an overview of all titles on
the disc, as well as any empty spaces.
On the disc bar, an arrow – the disc pointer –
indicates your current position on the disc. From this
point you may resume playback or recording.
● If you move through the list of titles with w/v (down/
up cursor) or / , the disc pointer will move.
● Press to put the disc pointer at the beginning of
the disc.
● To move the disc pointer to the end of the last title,
press and hold .
● If you move from an Index Picture to the box beside it
(containing name, record mode, etc.), you enter the
title settings menu (see ‘Managing disc content - Title
settings’).
24 11:11
00: 00: 55 -SP
Thu 09 13 2001
Empty title
00: 00: 59-SP
11: 15
pm
011
49 11:13
00: 00: 57 -SP
Thu 09 13 2001
2
4

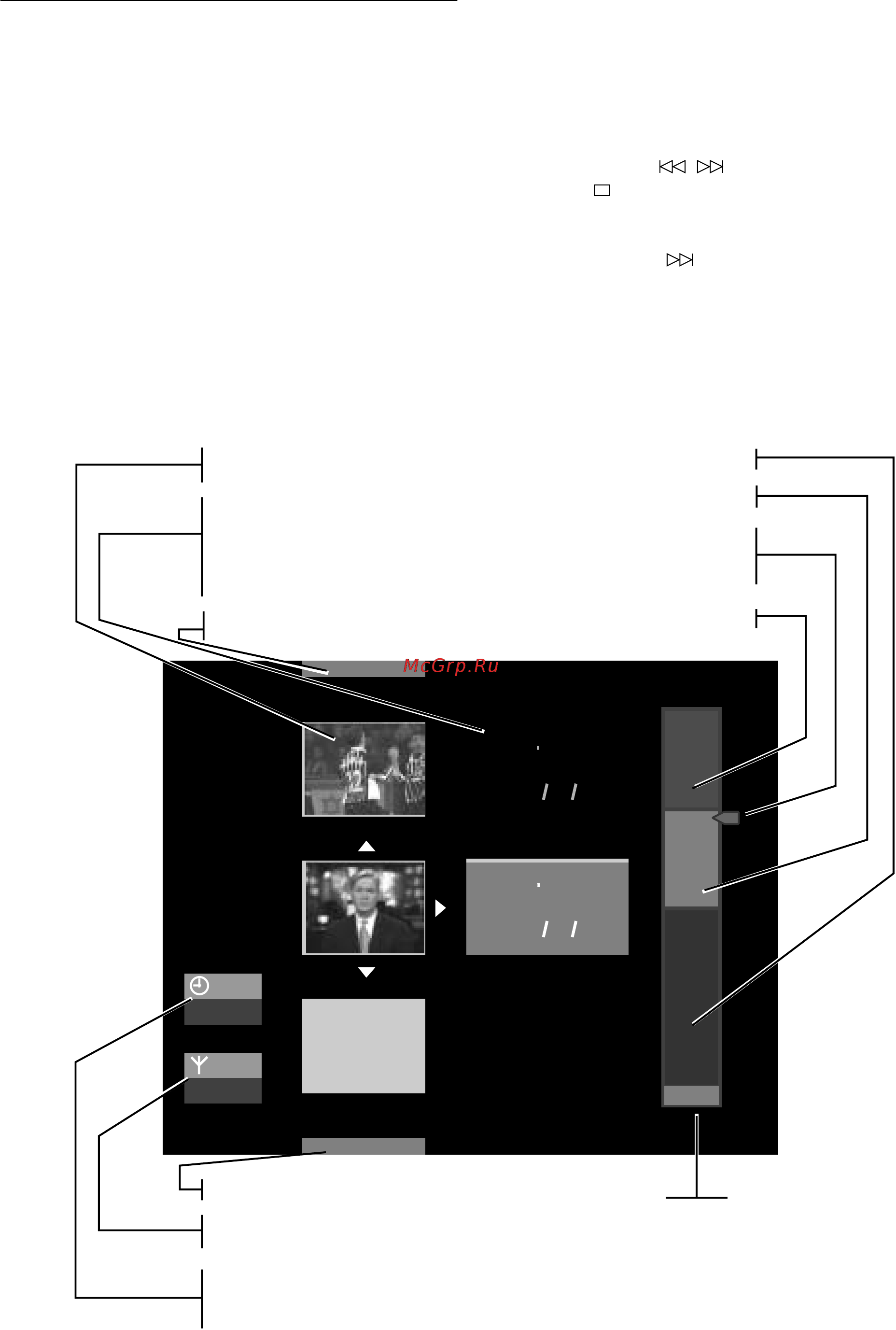

Index Picture
- image that represents a recorded title
Title description
- program name
- length of recording and mode in
which it was recorded
- recording date (if clock was set)
Cue to go to Disc Info Screen
or to title on previous screen
Empty title
Current title
Disc Pointer
- shows number and place
of current title on disc
Other title
Disc Bar
- shows an overview of
all titles on disc
Cue to go to title on next screen
Tuner Info Box
- displays the selected channel
Timer Info Box
- displays the current time or time/date
of the next timer program
+
+
+
