TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

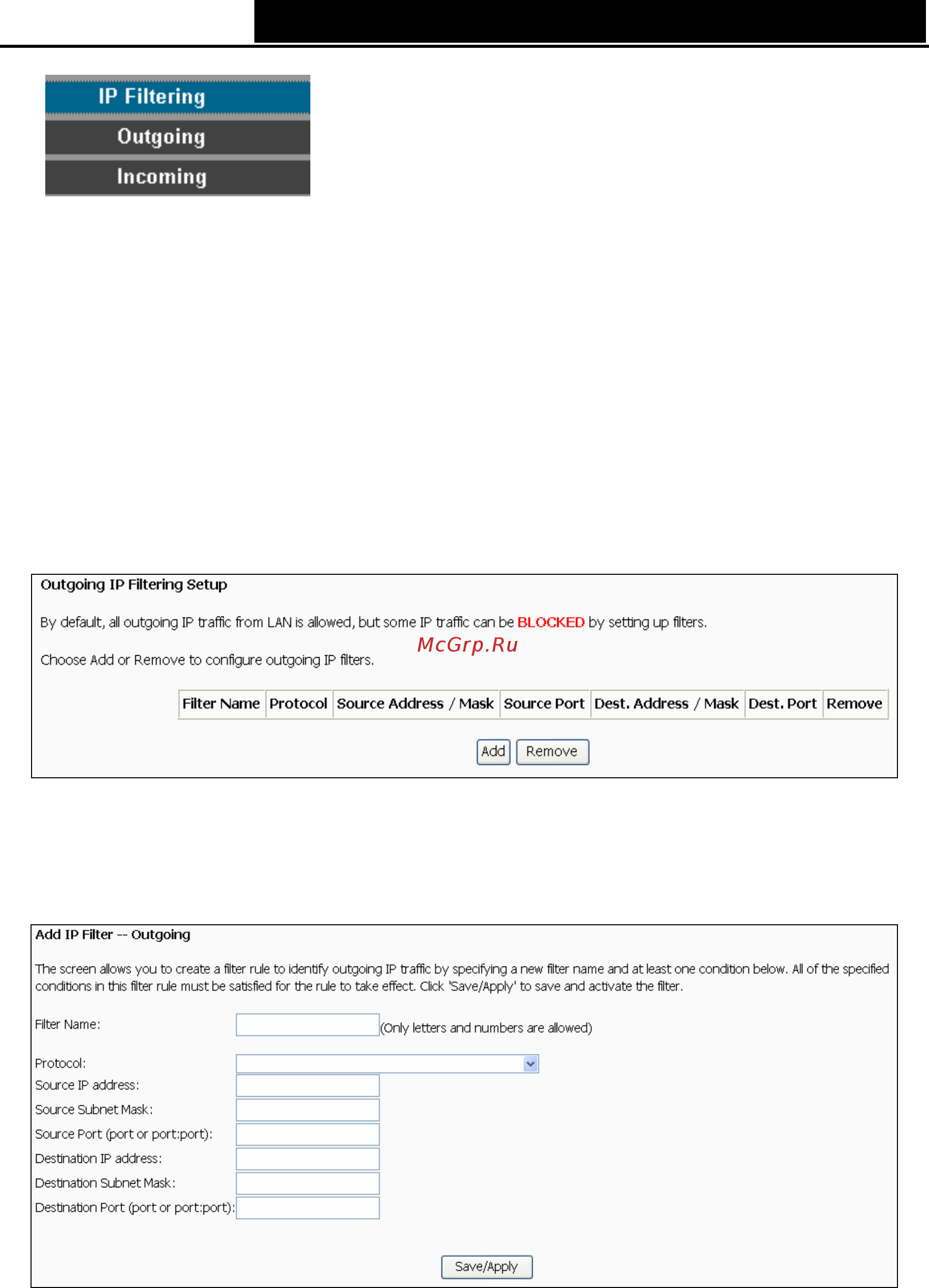

Figure 4-42

The IP address filtering feature makes it possible for administrators to control user's access to the

Internet, which is based on user's IP. The IP address filtering includes Outgoing and Incoming, the

detailed descriptions are provided below.

IP Filtering - Outgoing

Choose “Advanced Setup→Security→IP Filtering→Outgoing”, you can configure Outgoing

Filtering rules on the screen (shown in Figure 4-43).

The Outgoing IP Filtering feature allows you to control some IP traffic from LAN to access to some

specifically addresses. By default, all outgoing IP traffic from LAN is allowed, but some IP traffic

can be BLOCKED by setting up filters.

Figure 4-43

Setup an Outgoing IP Filtering rule:

1. Click the Add button in Figure 4-43, and you will see the next screen as shown in Figure 4-44.

Figure 4-44

2. Enter the Filter name for the rule, it is exclusive and must be filled.

3. Select the protocol: TCP/UDP, TCP, UDP or ICMP in the drop-down list for the connection

between the Source IP address and Destination IP address.
