- 21 - Hardware Installation
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

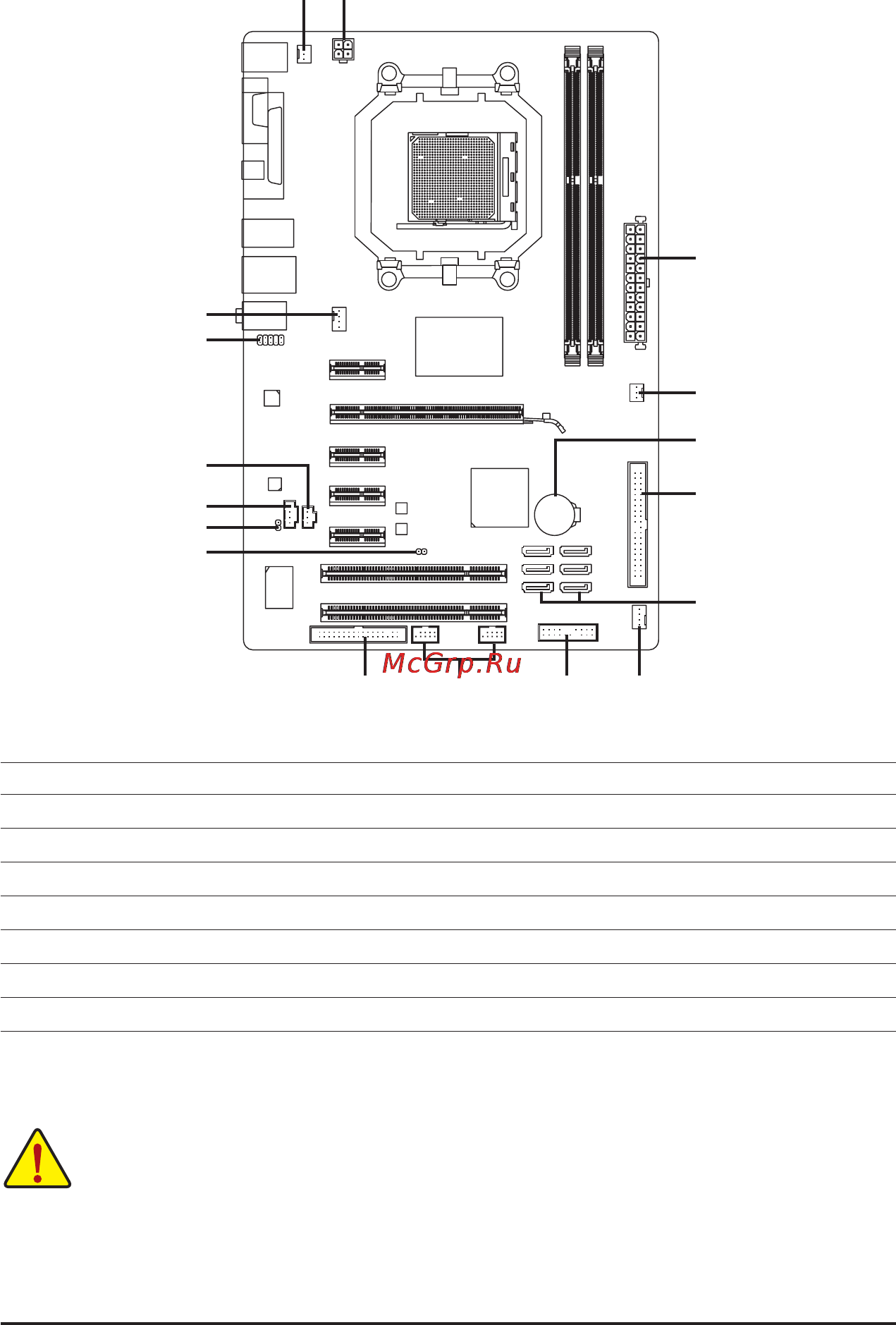

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) F_PANEL
10) F_AUDIO
11) CD_IN
12) SPDIF_IN
13) SPDIF_OUT
14) F_USB1/F_USB2
15) BAT
16) CLR_CMOS
1
3
10
11
6
4
9
8
7
2
5
12
15
4
13
14
16
