Инструкция по эксплуатации Страница: 87

Gigabyte GA-770T-D3L (rev. 1.x) [87/100] B s pdif out

- 87 - Appendix

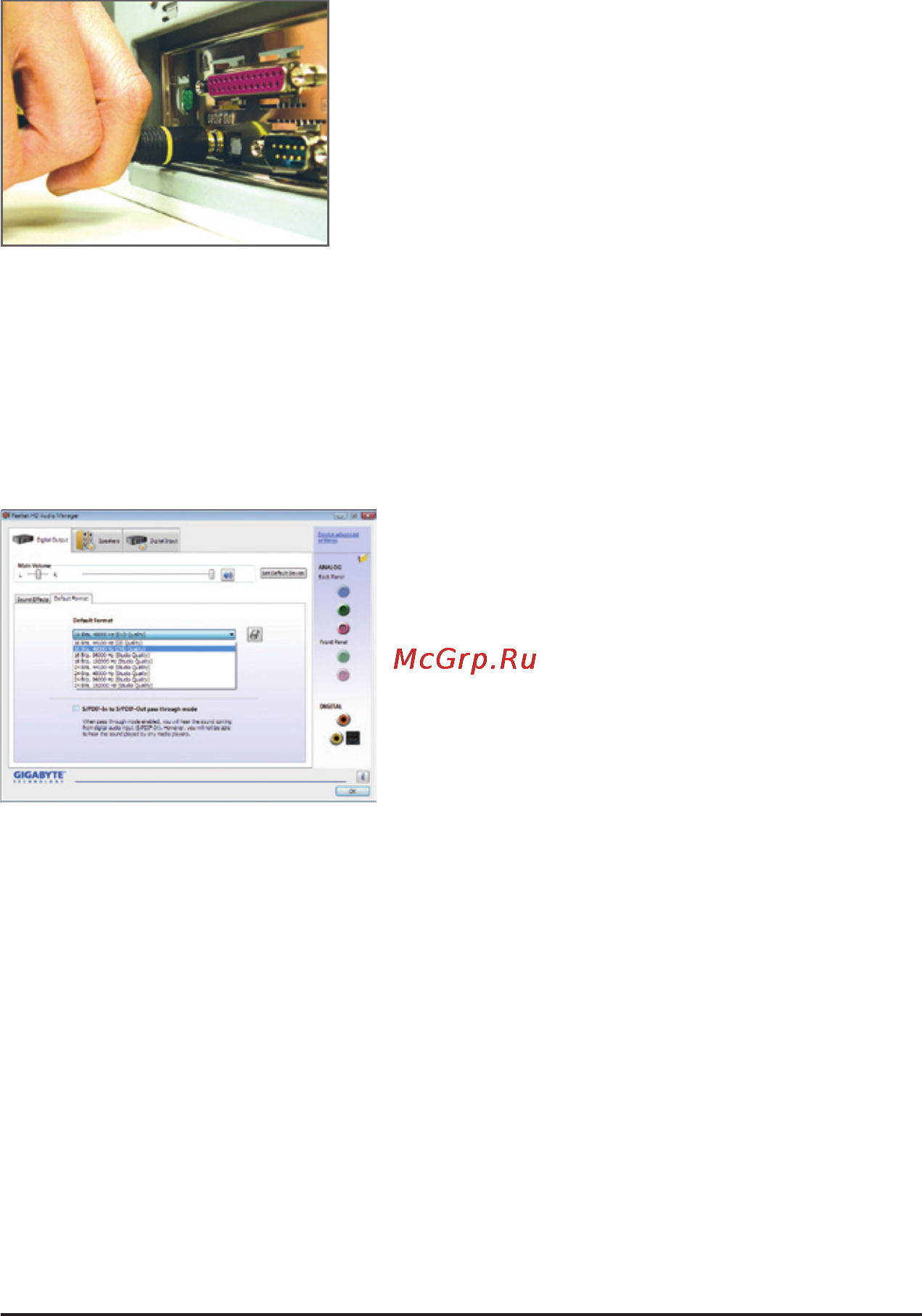

2. Conguring S/PDIF Out:

On the Digital Output screen, click the Default Format tab and then select the sample rate and bit depth.

Click OK to complete.

B. S/PDIF Out

The S/PDIF Out jacks can transmit audio signals to an external decoder for decoding to get the best audio

quality.

1. Connecting a S/PDIF Out Cable:

S/PDIF Coaxial Cable

Connect a S/PDIF coaxial cable to an external decoder for transmitting the S/PDIF digital audio signals.
