Drivers Installation - 58 -

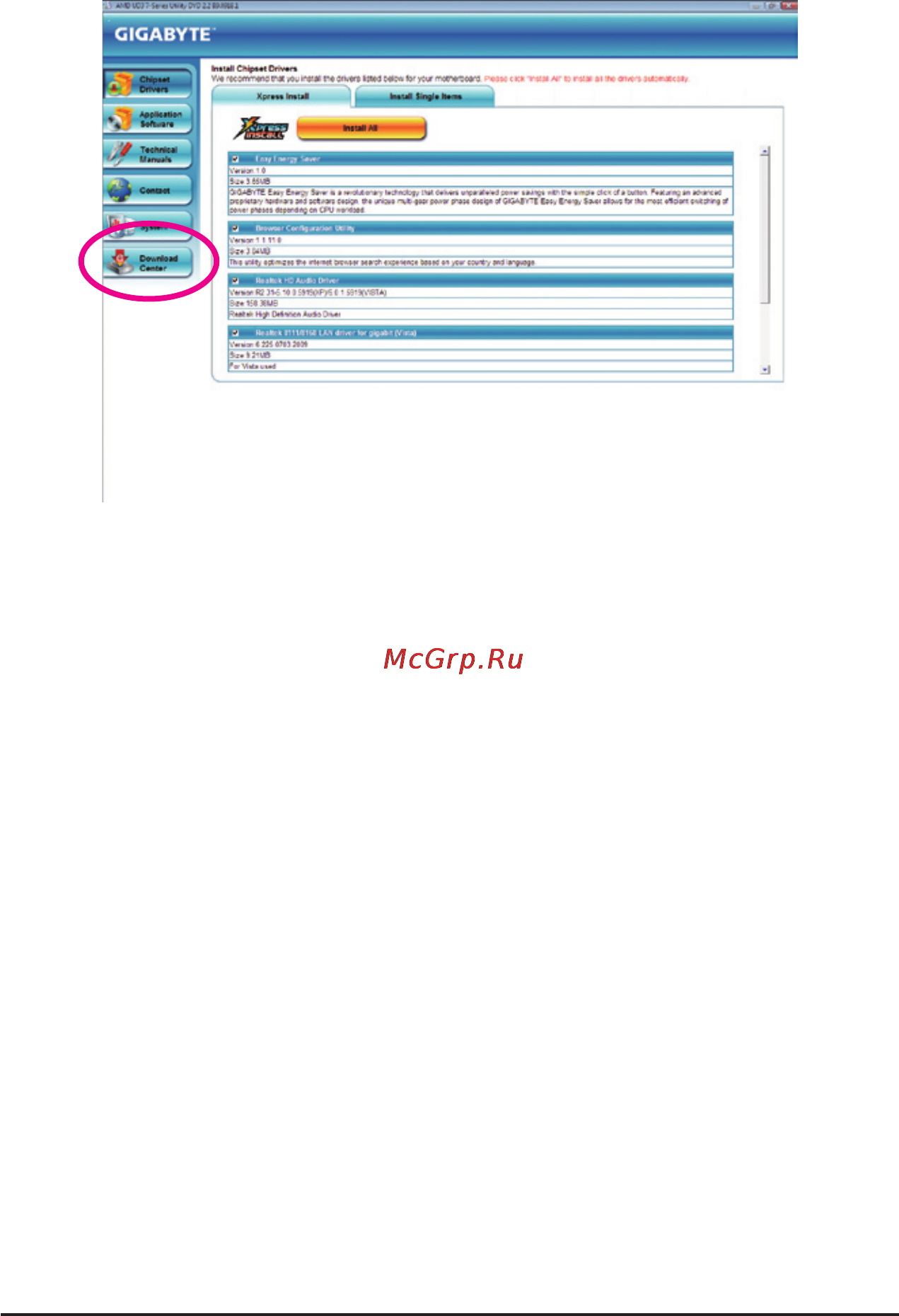

3-6 Download Center

To update the BIOS, drivers, or applications, click the Download Center button to link to the GIGABYTE

website. The latest version of the BIOS, drivers, or applications will be displayed.
