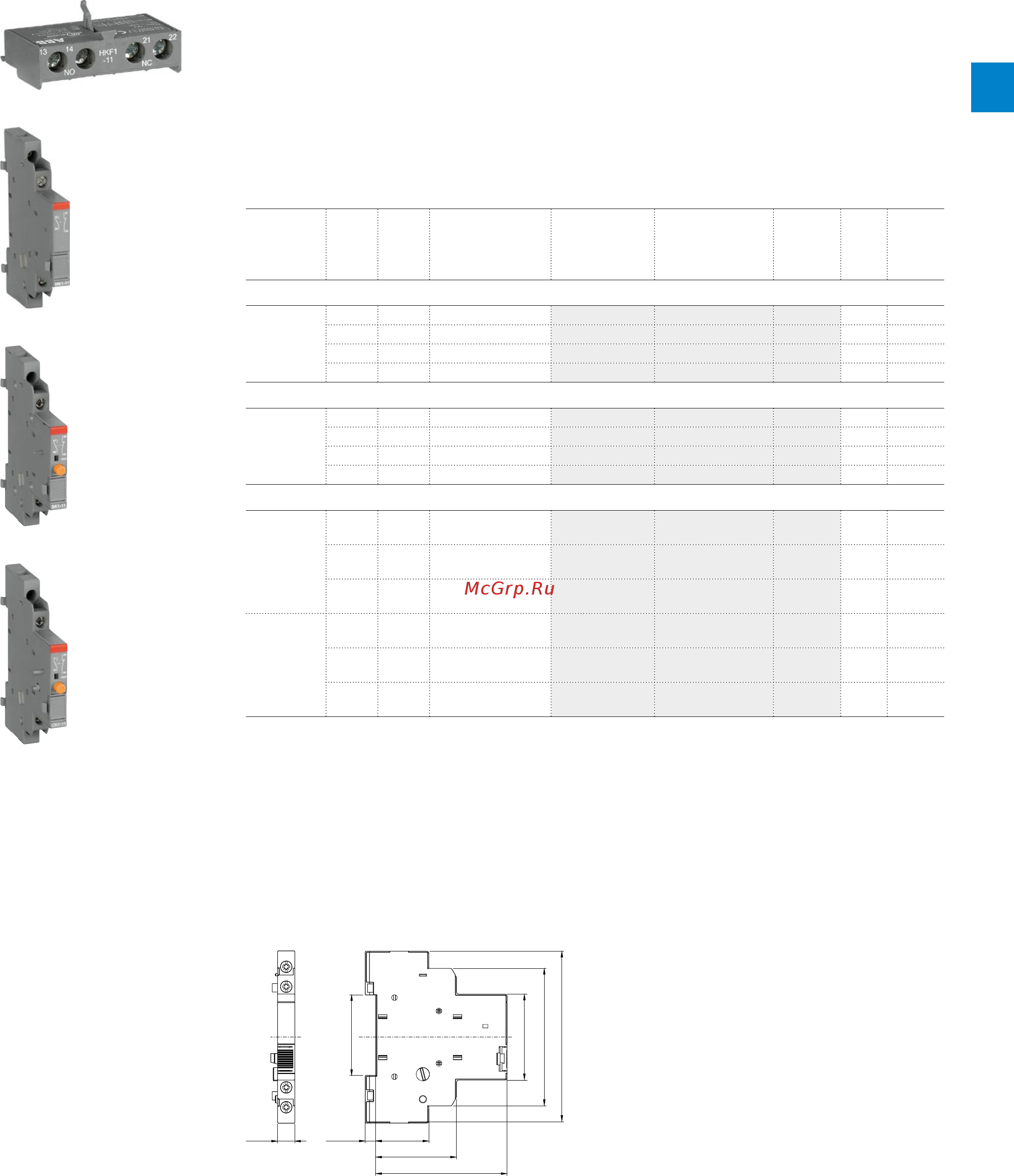

ABB Motor protection and control - short form catalog | 2/17
MS116, MS132, MS165, MO132, MO165, MS132-T
Main accessories
Description
MMS and MS132-T can be equipped with auxiliary contacts for lateral/front mounting, signaling contacts
for lateral mounting, undervoltage releases and shunt trips. Two different signaling contacts are available.
The accessories can be fitted wiring free and without tools. A variety of combinations is possible as
required for the application. The auxiliary contacts change position with the main contacts. The signaling
contact SK signals tripping regardless if it was caused by short-circuit or overload. The signaling contact
CK signals tripping in case it was caused by short-circuit. Undervoltage releases are used for remote
tripping of the manual motor starters especially for emergency stop circuits. Shunt trips release the MMS
used for remote tripping. These main accessories are suitable throughout the MS116/MS132/MS165-
range.
Ordering details
Suitable for
Auxiliary
contacts
N.O.
Auxiliary
contacts
N.C.
Description Type Order code Pkg
qty
Weight
(1 pce)
pcs kg
Auxiliary contacts – mountable on the front
MS116,
MS132, MS165
MO132, MO165
MS132-T
1 1 HKF1-11 1SAM201901R1001 10 0.015
1 0 HKF1-10 1SAM201901R1003 10 0.013
0 1 HKF1-01 1SAM201901R1004 10 0.013
2 0 HKF1-20 1SAM201901R1002 10 0.015
Auxiliary contacts – mountable on the right
MS116,
MS132, MS165
MO132, MO165
MS132-T
1 1 max. 2 pieces HK1-11 1SAM201902R1001 2 0.035
2 0 max. 2 pieces HK1-20 1SAM201902R1002 2 0.035
0 2 max. 2 pieces HK1-02 1SAM201902R1003 2 0.035
2 0 with lead contacts HK1-20L 1SAM201902R1004 2 0.035
Signaling contacts – mountable on the right
MS116,
MS132, MS165
MO132, MO165
MS132-T
1 1 for tripped alarm,
max. 2 pieces
SK1-11 1SAM201903R1001 2 0.035
2 0 for tripped alarm,
max. 2 pieces
SK1-20 1SAM201903R1002 2 0.035
0 2 for tripped alarm,
max. 2 pieces
SK1-02 1SAM201903R1003 2 0.035
MS132,
MS165,
MS132-T
1 1 for short-circuit alarm,
max. 2 pieces
CK1-11 1SAM301901R1001 2 0.035
2 0 for short-circuit alarm,
max. 2 pieces
CK1-20 1SAM301901R1002 2 0.035
0 2 for short-circuit alarm,
max. 2 pieces
CK1-02 1SAM301901R1003 2 0.035
HKF1-11
1SBC101209F0014
HK1-11
1SBC101210F0014
SK1-11
1SBC101286F0014
CK1-11
1SBC101208F0014
Main dimensions mm, inches
5.5
42.3
27.8
68.8
9
90
72
45
42.1
3.54"
0.22"
2.83"
1.77"
1.67"
1.09"
2.71"
1.66"
0.35"
2CDC242001F0012
HK1
2
