2CDC131050C0201a
ABB Motor protection and control - short form catalog | 2/21
Description
Three-phase busbars ensure a quick and safe connection and are therefore a cost effective solution. A
variety of different three-phase busbars up to 125 A are in the assortment. Between 2 and 5 manual motor
starters with none, one or two lateral auxiliary contacts can be connected.
Ordering details
Suitable for Rated
operational
current
Number of
MMS
Number of
lateral aux.
Type Order code Pkg
qty
Weight
(1 pce)
A pcs kg
Three-phase busbars
MS165,
MO165
125 2 0 PS2-2-0-125 1SAM401920R1002 10 0.100
125 3 0 PS2-3-0-125 1SAM401920R1003 10 0.162
125 4 0 PS2-4-0-125 1SAM401920R1004 10 0.226
125 2 2 PS2-2-2-125 1SAM401920R1022 10 0.117
125 3 2 PS2-3-2-125 1SAM401920R1023 10 0.197
125 4 2 PS2-4-2-125 1SAM401920R1024 10 0.277
Other busbar types on request.
Suitable for Description Type Order code Pkg
qty
Weight
(1 pce)
pcs kg
MS165, MO165 Terminal shroud KA165 1SAM401922R1001 10 0.025
Protection cover for busbars BS2-3 1SAM401921R1001 10 0.005
Padlock + two keys SA2 GJF1101903R0002 10 0.020

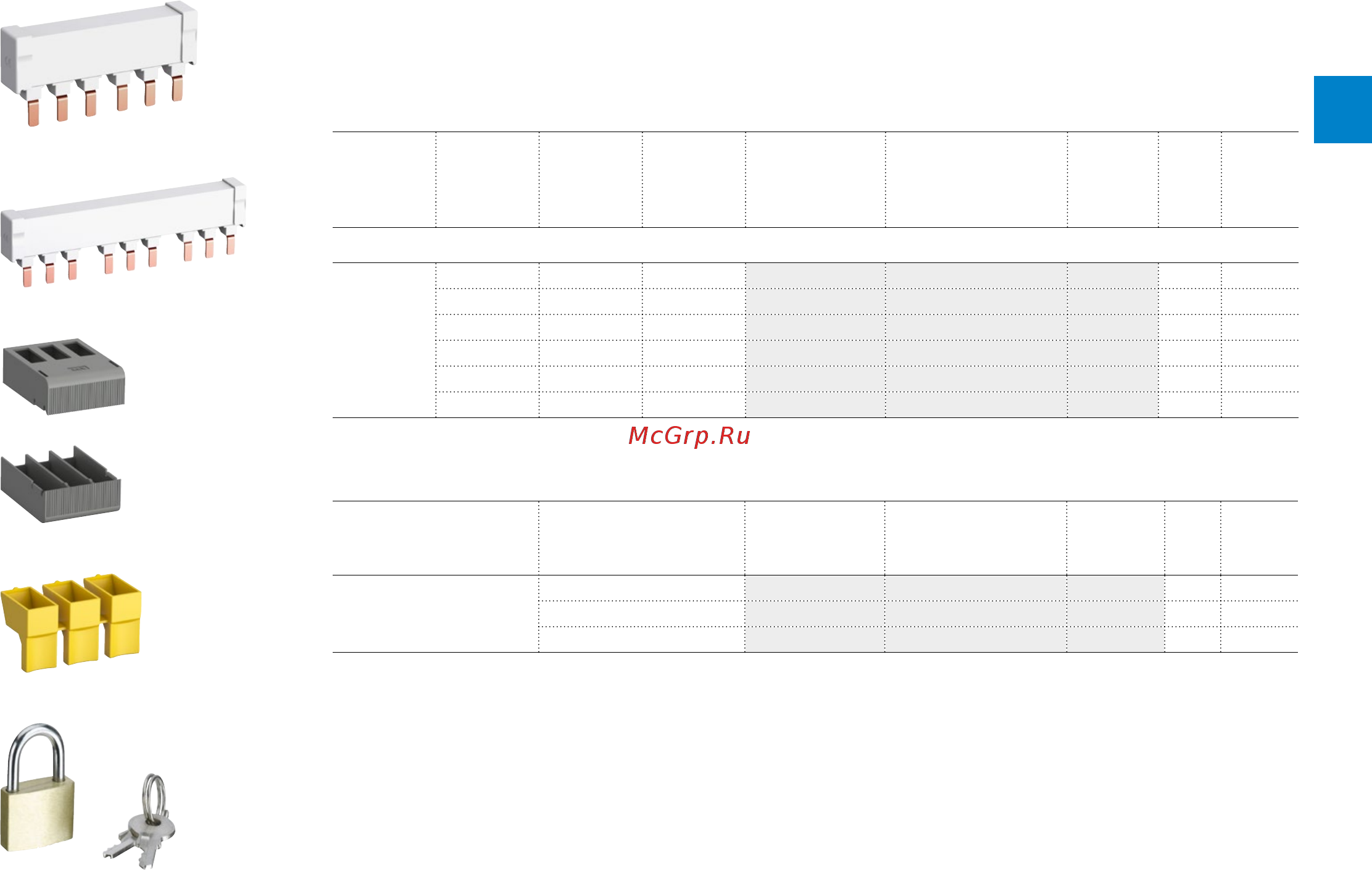

PS2-2-0-125
2CDC241003V0015
PS2-3-0-125
KA165
BS2-3
2CDC241023F0013
SA2
2CDC241010V0014
MS165, MO165
Main accessories
2CDC241002V0015
2CDC241001V0015
2
