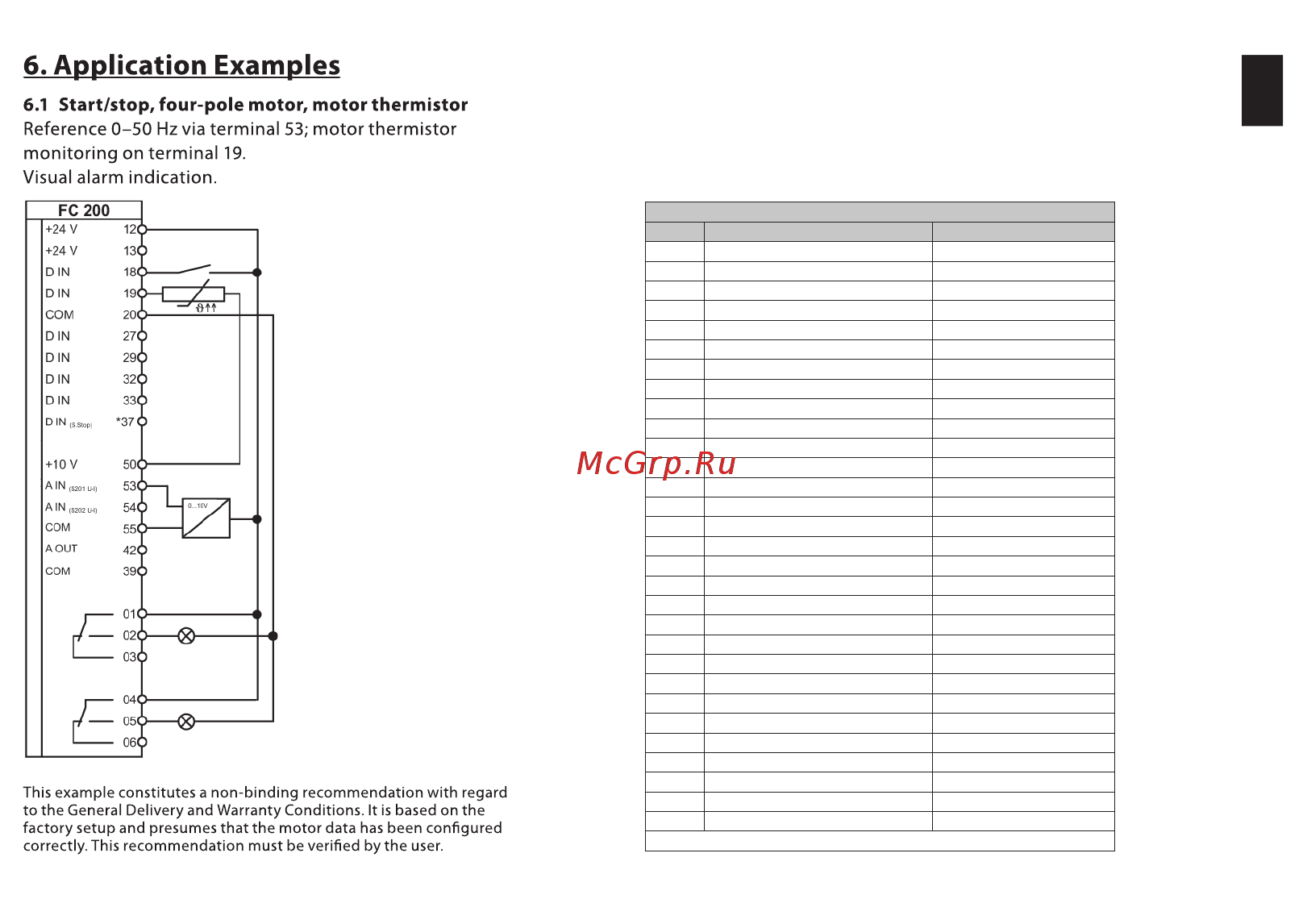

6. Application Examples
6
This example constitutes a non-binding recommendation with regard
to the General Delivery and Warranty Conditions. It is based on the
factory setup and presumes that the motor data has been confi gured
correctly. This recommendation must be verifi ed by the user.
6.1 Start/stop, four-pole motor, motor thermistor
Reference 0–50 Hz via terminal 53; motor thermistor
monitoring on terminal 19.
Visual alarm indication.
6. Application Examples
6. Application Examples
6
This example constitutes a non-binding recommendation with regard
to the General Delivery and Warranty Conditions. It is based on the
factory setup and presumes that the motor data has been confi gured
correctly. This recommendation must be verifi ed by the user.
6.1
Start/stop, four-pole motor, motor thermistor
Reference 0–50 Hz via terminal 53; motor thermistor
monitoring on terminal 19.
Visual alarm indication.
Relevant parameters
Par. Function Setting
0-02 Hz/rpm selection [1] Hz
1-25 Rated motor speed see motor nameplate
5-10 Terminal 18: digital input [8] Start*
5-11 Terminal 19: digital input [0] Not used
5-12 Terminal 27: digital input [0] Not used
1-90 Motor thermal protection [2] Thermistor trip
1-93 Thermistor connection [4] Digital input 19
3-15 Variable reference 1 [1] Analogue input 53*
4-53 High speed warning 1500 rpm
5-40 [0] Relay 1 function [9] Alarm
5-40 [1] Relay 2 function [5] Motor running
* Factory setting
Start/Stop
Motor thermistor
Analogue reference
Alarm
Motor running
*Safe stop as option
Relay 2
Relay 1
