6
This example constitutes a non-binding recommendation with regard
to the General Delivery and Warranty Conditions. It is based on the
factory setup and presumes that the motor data has been confi gured
correctly. This recommendation must be verifi ed by the user.

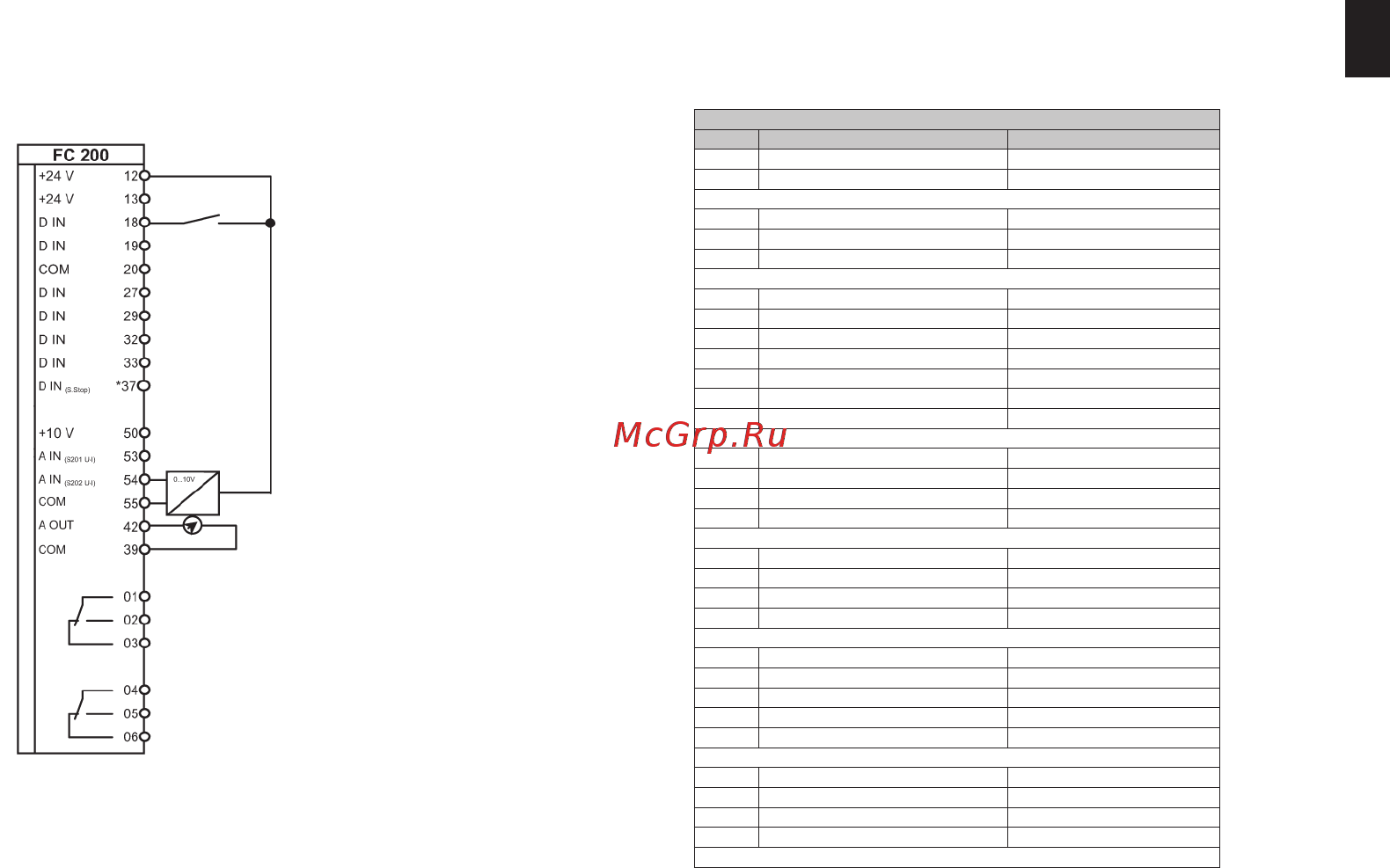

6.14 Volume fl ow control in m³/h, feedback signal output 0–20 mA
Volume fl ow control with integrated process controller.
Internal reference, feedback 0–5000 m
3
/h on terminal 54.
Feedback output 0–5000 m
3
/h as 0–20 mA signal on terminal 42.
Relevant parameters
Par. Function Setting
Start/Stop
5-10 Terminal 18: digital input [8] Start*
5-12 Terminal 27: digital input [0] Not used
Volume fl ow control
1-00 Control mode [3] PID closed loop
20-01 Feedback conversion 1 [1] Square root
20-12 Reference/feedback unit [25] m
3
/h
20-21 Reference 1 2500 m
3
/h
20-93 PID proportional gain 0.5
20-94 PID integration time 2
Scaling in m
3
/h
3-02 Min. reference 0 m
3
/h*
3-03 Max. reference 5000 m
3
/h
Feedback signal
20-00 Feedback terminal 1 [2] Analogue input 54*
6-24 Ter. 54 scale min. ref/feedback 0 m
3
/h*
6-25 Ter. 54 scale max. ref/feedback 5000 m
3
/h
Analogue output
6-50 Terminal 42: analogue output [102] Feedback 0–20 mA
6-51 Ter. 42 min. scaling 50%
6-52 Ter. 42 max. scaling 75%
Display indication (optional)
0-20 Display line 1.1 [1601] Reference [unit]
0-22 Display line 1.3 [1652] Feedback [unit]
0-24 Display line 3 [1665] Analogue output 42
* Factory setting
Feedback signal
Feedback 0–20 mA
Start/Stop
*Safe stop as option
Relay 2
Relay 1
