This example constitutes a non-binding recommendation with regard

to the General Delivery and Warranty Conditions. It is based on the

factory setup and presumes that the motor data has been conﬁ gured

correctly. This recommendation must be veriﬁ ed by the user.

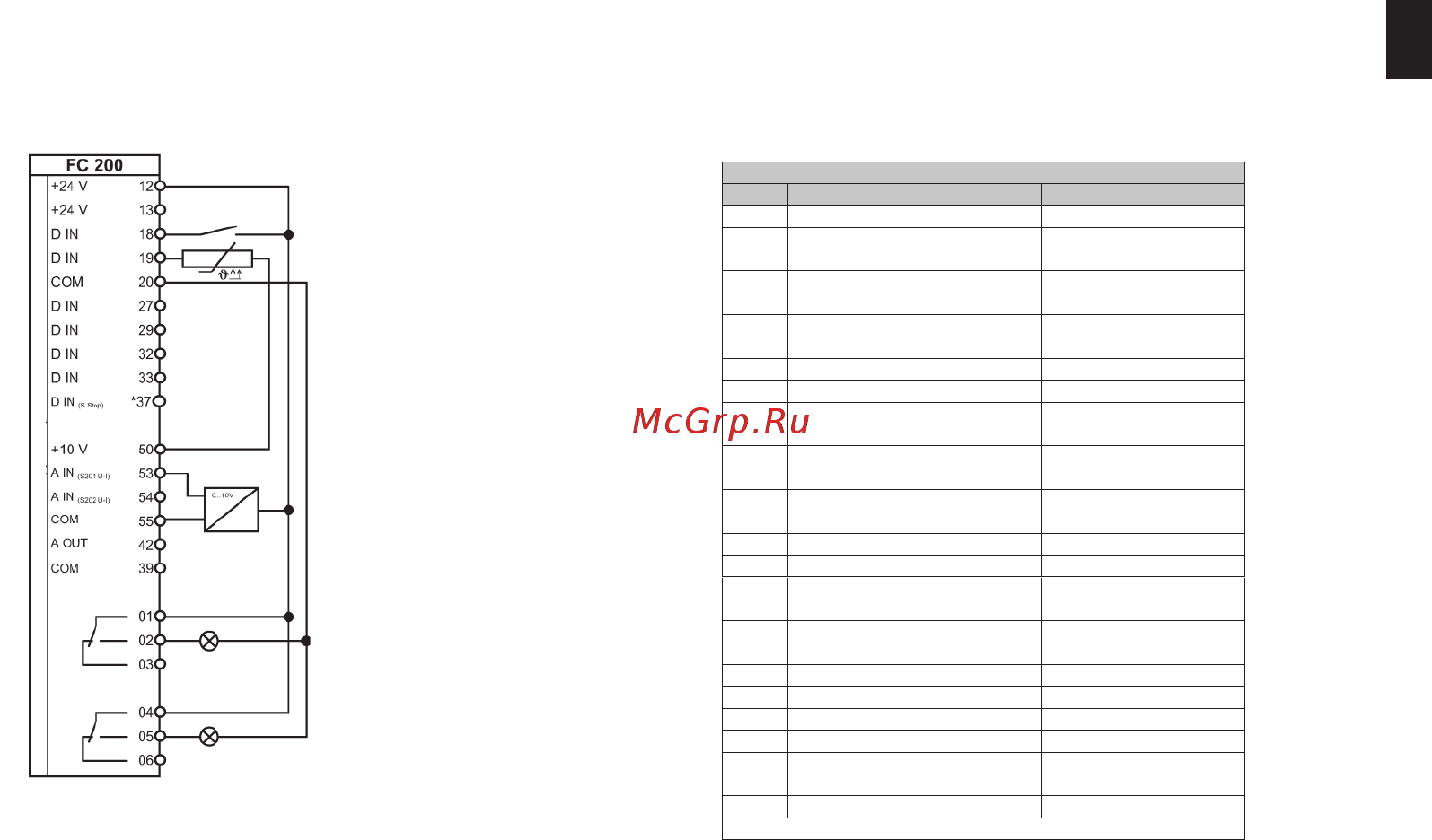

6.2 Start/stop, four-pole motor, oversynchronous, motor thermistor

0–72 Hz reference value via terminal 53.

Motor thermistor monitoring on terminal 19.

Visual alarm indication.

Relevant parameters

Par. Function Setting

0-02 Hz/rpm selection [1] Hz

1-25 Rated motor speed see motor nameplate

5-10 Terminal 18: digital input [8] Start*

5-11 Terminal 19: digital input [0] Not used

5-12 Terminal 27: digital input [0] Not used

1-90 Motor thermal protection [2] Thermistor trip

1-93 Thermistor connection [4] Digital input 19

3-03 Max. reference 72 Hz

3-15 Variable reference 1 [1] Analogue input 53*

4-14 Max. frequency [Hz] 72 Hz

4-53 High speed warning 2045 rpm

6-15 Ter. 53 scale max. ref/feedback 72 Hz

5-40[0] Relay 1 function [9] Alarm

5-40[1] Relay 2 function [5] Motor running

* Factory setting

Start/Stop

Motor thermistor

Analogue reference

Alarm

Motor running

*Safe stop as option

Relay 2

Relay 1
