6.12 Pressure control in Pa
Pressure control with integrated process controller.
Internal reference, feedback 0–2000 Pa on terminal 54.
Relevant parameters
Par. Function Setting
Start/Stop
5-10 Terminal 18: digital input [8] Start*
5-12 Terminal 27: digital input [0] Not used
Pressure control
1-00 Control mode [3] PID closed loop
20-12 Reference/feedback unit [72] Pa
20-21 Reference 1 1500 Pa
20-94 PID integration time 0.8
Scaling in Pa
3-02 Min. reference 0 Pa*
3-03 Max. reference 2000 Pa
Feedback signal
20-00 Feedback terminal 1 [2] Analogue input 54*
6-24 Ter. 54 scale min. ref/feedback 0 Pa*
6-25 Ter. 54 scale max. ref/feedback 2000 Pa
Display indication (optional)
0-20 Display line 1.1 [1601] Reference [unit]
0-22 Display line 1.3 [1652] Feedback [unit]
* Factory setting

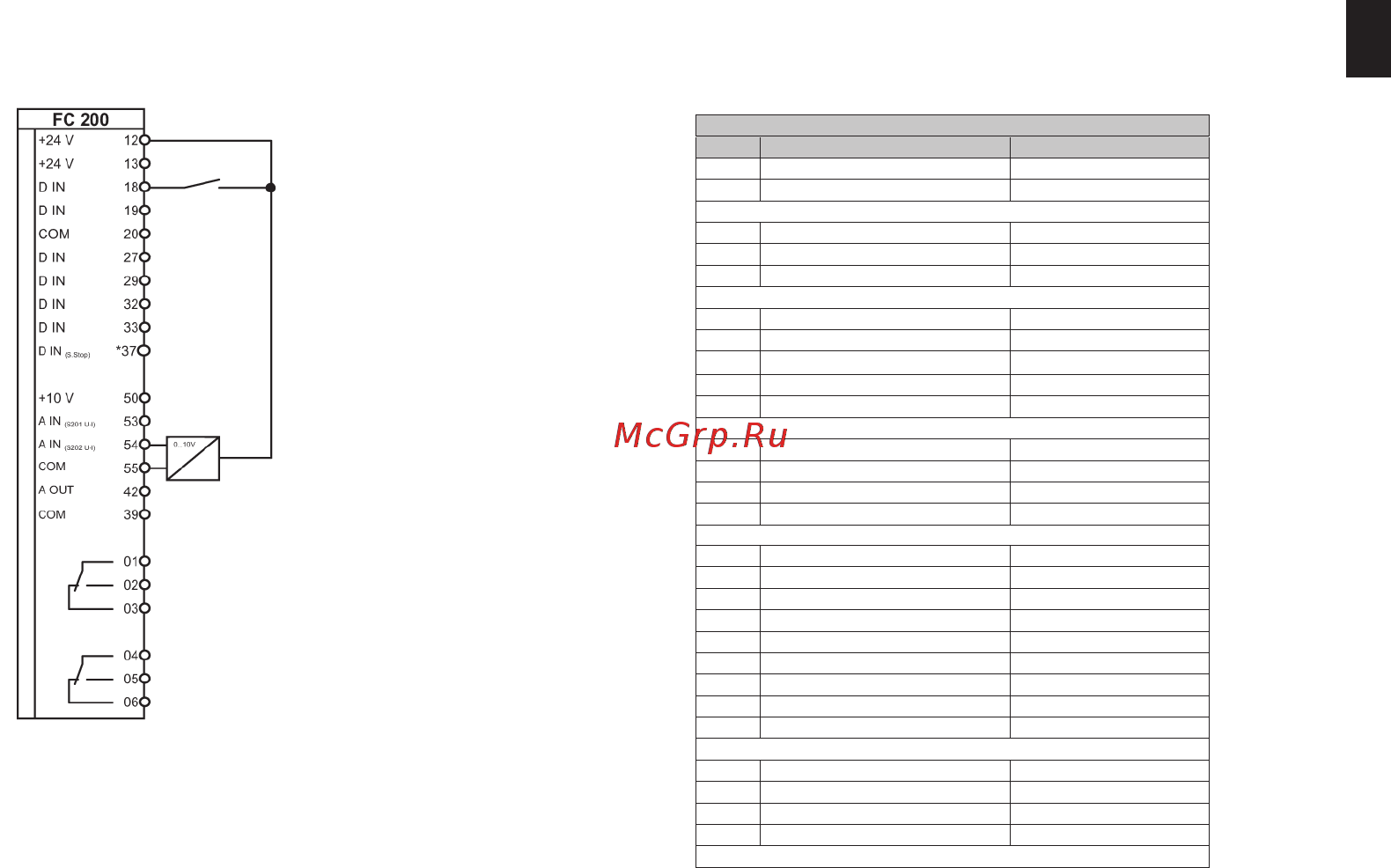

Feedback signal
Start/Stop
*Safe stop as option
Relay 2
Relay 1
