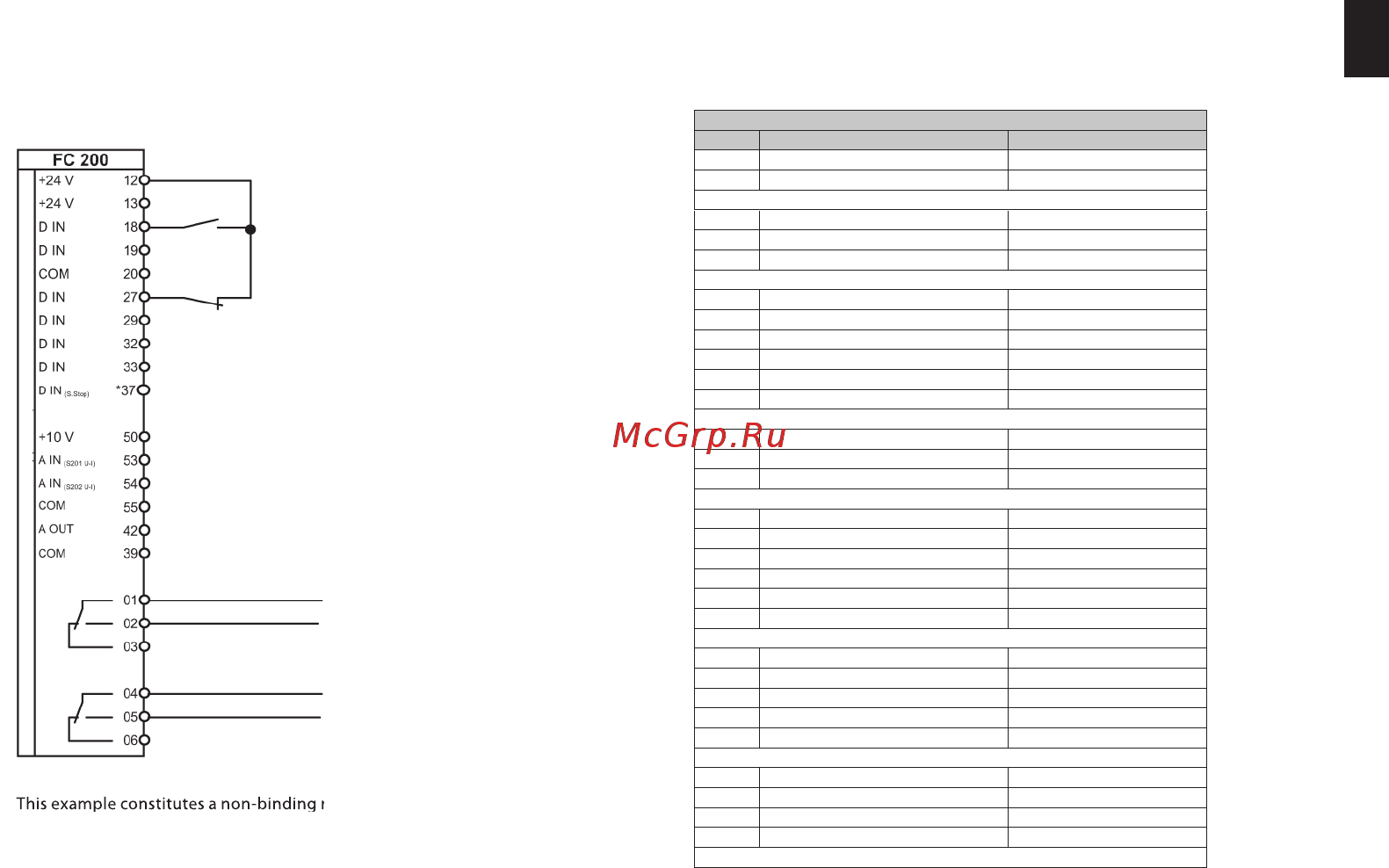

6.16 Pressure control in bar, basic cascade controller
Pressure control with integrated process controller.
The VLT® AQUA Drive cascade controller can switch on additional
pumps via the relays if necessary.
Controlled variable 0–10 bar on terminal 54.
This example constitutes a non-binding recommendation with regard
Relevant parameters
Par. Function Setting
0-02 Hz/rpm selection [1] Hz
3-10 Preset ref. [0] 25%
Start/Stop
5-10 Terminal 18: digital input [8] Start*
5-12 Terminal 27: digital input [2] Coast (inverse)*
Pressure control
1-00 Control mode [3] PID closed loop
20-12 Reference/feedback unit [71] bar
20-21 Reference 1 5 bar
20-93 PID proportional gain 0.5
20-94 PID integration time 0.8
Scaling in bar
3-02 Min. reference 0 bar*
3-03 Max. reference 10 bar
Feedback signal
20-00 Feedback terminal 1 [2] Analogue input 54*
6-24 Ter. 54 scale min. ref/feedback 0 bar
6-25 Ter. 54 scale max. ref/feedback 10 bar
20-73 Min. feedback level 0 bar
20-74 Maximum feedback level 10 bar
Cascade controller
25-00 Cascade controller [1] Enabled
25-05 Preset control group [1] Yes*
25-06 Number of pumps [1] 3 pumps
25-45 Switch-on threshold [Hz] 45 Hz*
Relay
5-40[0] Relay 1 function [212] Casc. pump 2**
5-40[2] Relay 2 function [213] Casc. pump 3**
* Factory setting
Control voltage pump „1“
Start signal pump „1“
Control voltage pump „2“
Start signal pump „2“
Start cascade control
Coast all pumps
*Safe stop as option
Relay 2
Relay 1
