6
This example constitutes a non-binding recommendation with regard
to the General Delivery and Warranty Conditions. It is based on the
factory setup and presumes that the motor data has been confi gured
correctly. This recommendation must be verifi ed by the user.

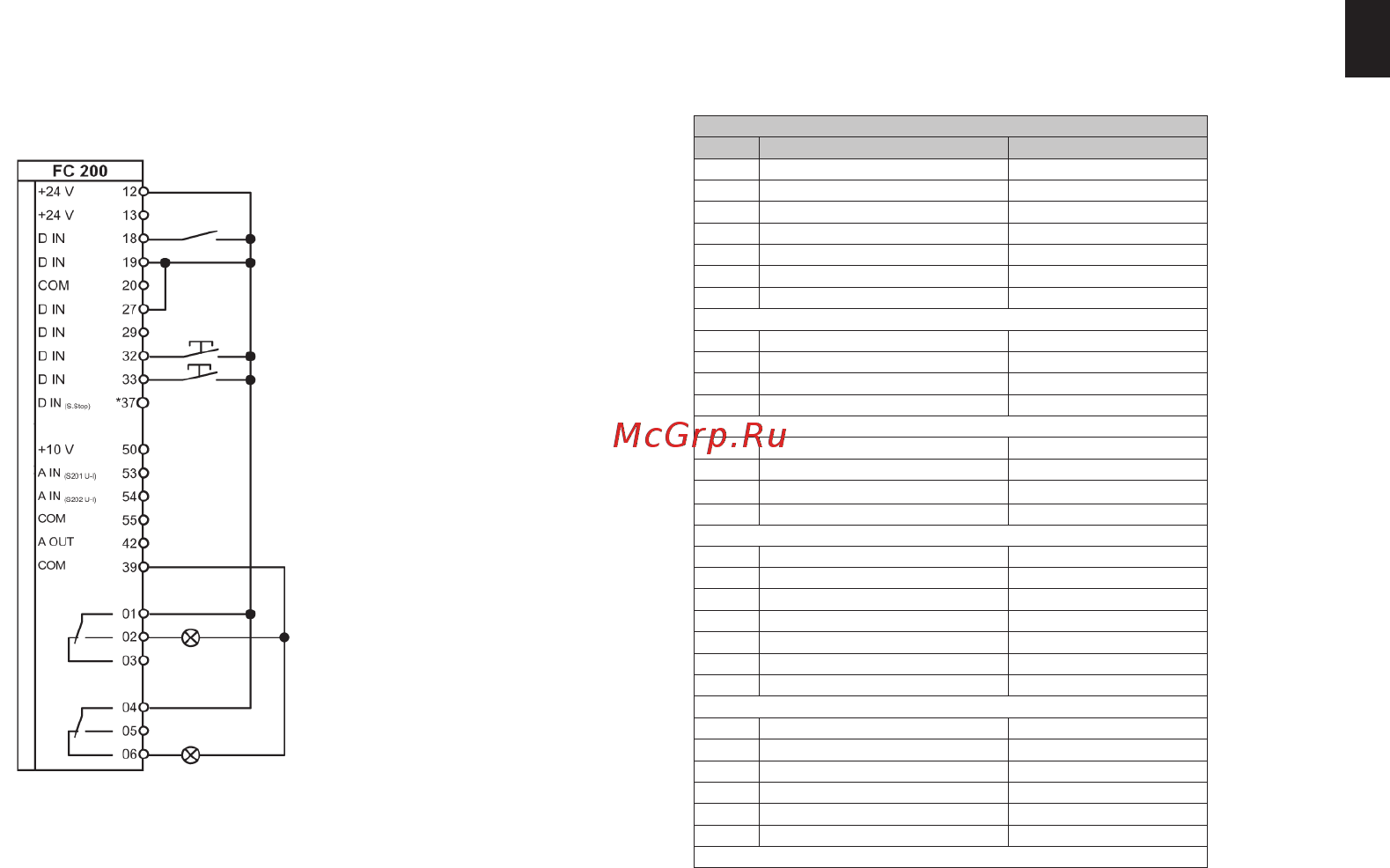

6.10 Manual Profi bus time-out selection
With Profi bus control, the converter does not accept any commands
via the terminals. If Profi bus control is interrupted, the converter
automatically switches to manual mode (reference setting via
buttons). Manual mode can also be selected via terminal 18.
Relevant parameters
Par. Function Setting
1-1* Motor data see motor nameplate
8-03 Ctrl. param. for timeout time 1 sec
8-04 Timeout function ctrl. param. [8] Select Setup 2
8-05 Timeout End ctrl. param. [1] Resume setup*
9-18 Node address As required
Data for both setups
5-10 Terminal 18: digital input [23] Setup select bit 0
5-40[0] Relay function [9] Alarm
5-40[1] Relay function [23] Bus OK
Setup selection
0-51 Setup copy [2] Copy to Setup 2
0-10 Active setup [9] Multi Setup
0-12 Link setup to [2] Setup 2
Settings only for Setup 1
5-11 Terminal 19: digital input [0] Not used
5-12 Terminal 27: digital input [0] Not used
5-14 Terminal 32: digital input [0] Not used
5-15 Terminal 33: digital input [0] Not used
8-01 Control Site Digital only
8-02 Active control parameter Disabled
Settings only for Setup 2
5-11 Terminal 19: digital input [8] Start
5-12 Terminal 27: digital input [20] Freeze output
5-14 Terminal 32: digital input [21] Speed up
5-15 Terminal 33: digital input [22] Speed down
8-01 Control Site Digital only
8-02 Active control parameter Disabled
* Factory setting
Manual mode „On“
Manual „UP“ button
Manual „DOWN“ button
Alarm
Profi bus fault
*Safe stop as option
Relay 2
Relay 1
