This example constitutes a non-binding recommendation with regard

to the General Delivery and Warranty Conditions. It is based on the

factory setup and presumes that the motor data has been conﬁ gured

correctly. This recommendation must be veriﬁ ed by the user.

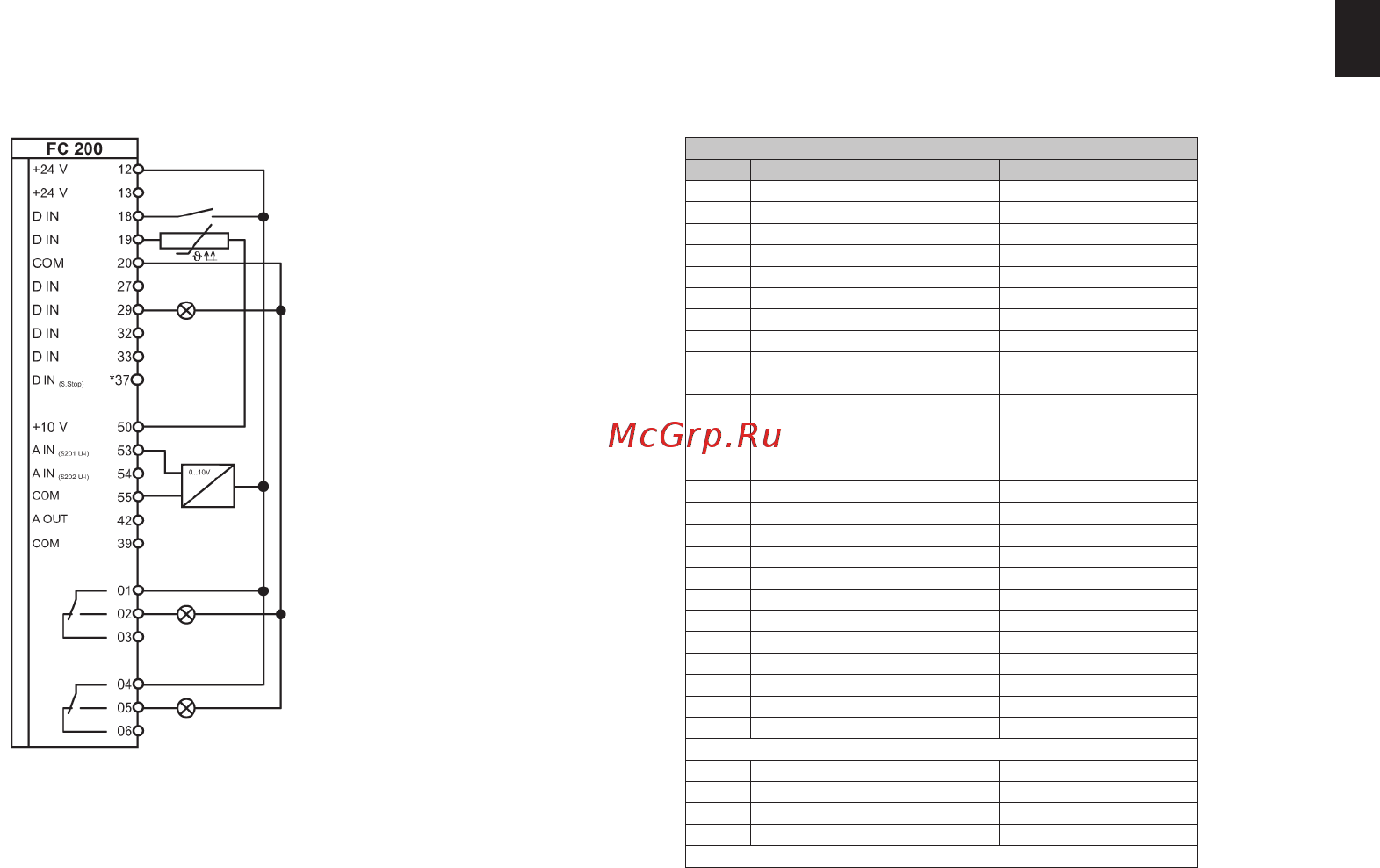

6.5 Start/stop, motor thermistor

Reference 0–50 Hz terminal 53.

Motor thermistor monitoring on terminal 19.

Visual alarm indication.

Start/Stop

Motor thermistor

Analogue reference

Alarm

Motor running

Motor thermistor alarm

Relevant parameters

Par. Function Setting

5-10 Terminal 18: digital input [8] Start*

5-11 Terminal 19: digital input [0] Not used

5-12 Terminal 27: digital input [0] Not used

5-02 Terminal 29 Mode [1] Output

5-31 Terminal 29: digital output [60] Comparator 0

1-90 Motor thermal protection [2] Thermistor trip

1-93 Thermistor connection [4] Digital input 19

3-15 Variable reference 1 [1] Analogue input 53*

5-40 [0] Relay 1 function [9] Alarm

5-40 [1] Relay 2 function [5] Motor running

Interrogation Alarm 11 (motor thermistor)

13-10[0] Comparator operand [20] Alarm number

13-11[0] Comparator function [1] ! (equal)*

13-12[0] Comparator value 11,000

* Factory setting

*Safe stop as option

Relay 2

Relay 1
