6
This example constitutes a non-binding recommendation with regard
to the General Delivery and Warranty Conditions. It is based on the
factory setup and presumes that the motor data has been confi gured
correctly. This recommendation must be verifi ed by the user.

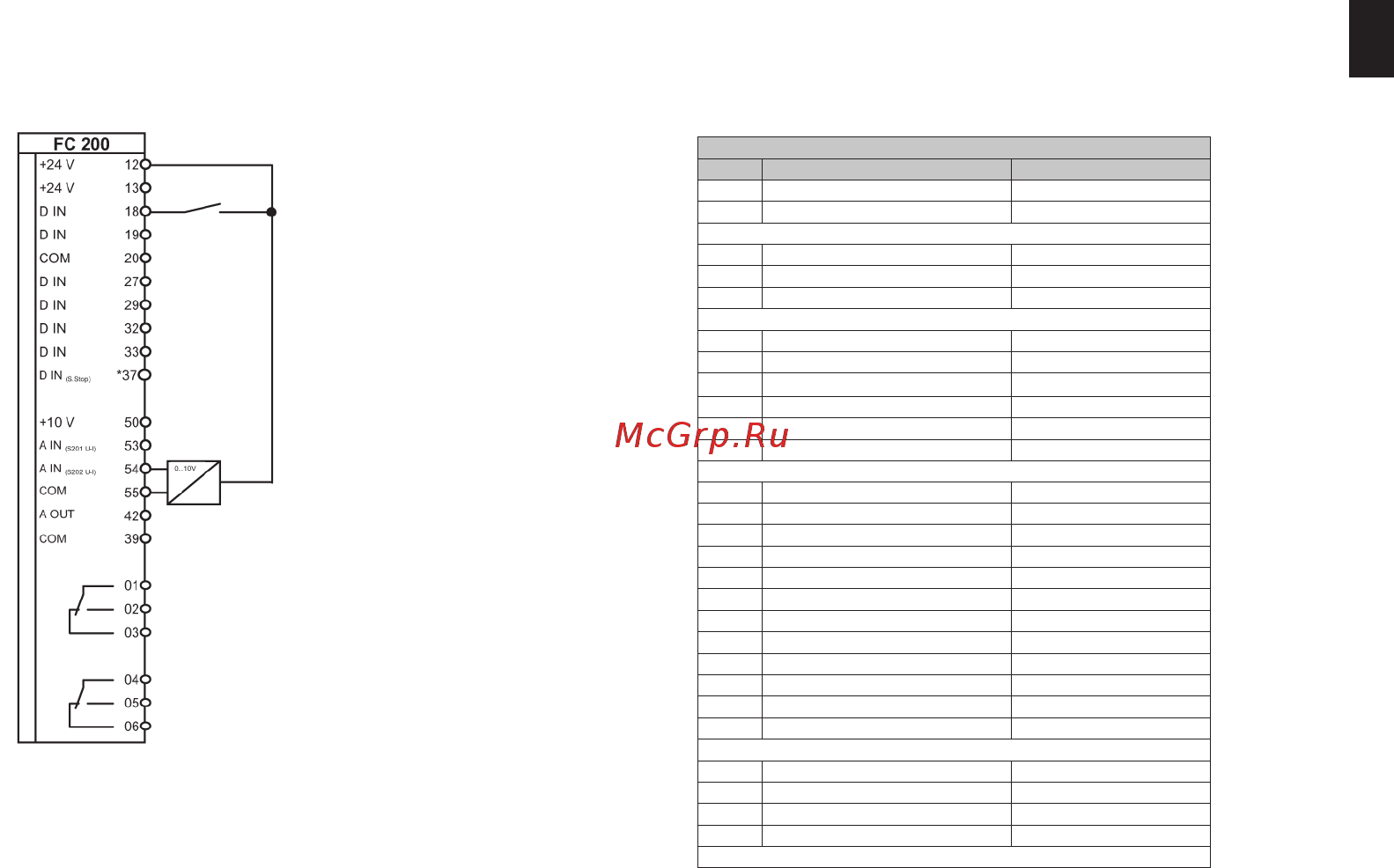

6.11 Pressure control in %
Pressure control with integrated process controller.
Internal reference, feedback 0–100% on terminal 54.
Relevant parameters
Par. Function Setting
Start/Stop
5-10 Terminal 18: digital input [8] Start*
5-12 Terminal 27: digital input [0] Not used
Pressure control
1-00 Control mode [3] PID closed loop
20-12 Reference/feedback unit [1] %*
20-21 Reference 1 50%
20-94 PID integration time 0.8
Feedback signal
20-00 Feedback terminal 1 [2] Analogue input 54*
6-24 Ter. 54 scale min. ref/feedback 0%*
6-25 Ter. 54 scale max. ref/feedback 100%*
Display indication (optional)
0-20 Display line 1.1 [1601] Reference [unit]
0-22 Display line 1.3 [1652] Feedback [unit]
* Factory setting
Feedback signal
Start/Stop
*Safe stop as option
Relay 2
Relay 1
