Danfoss VLT AQUA Drive FC-202P3K0S2 [29/40] Fixed speeds three diff erent speeds preset references can be selected via fl oating contacts

This example constitutes a non-binding recommendation with regard

to the General Delivery and Warranty Conditions. It is based on the

factory setup and presumes that the motor data has been conﬁ gured

correctly. This recommendation must be veriﬁ ed by the user.

6.6 Fixed speeds

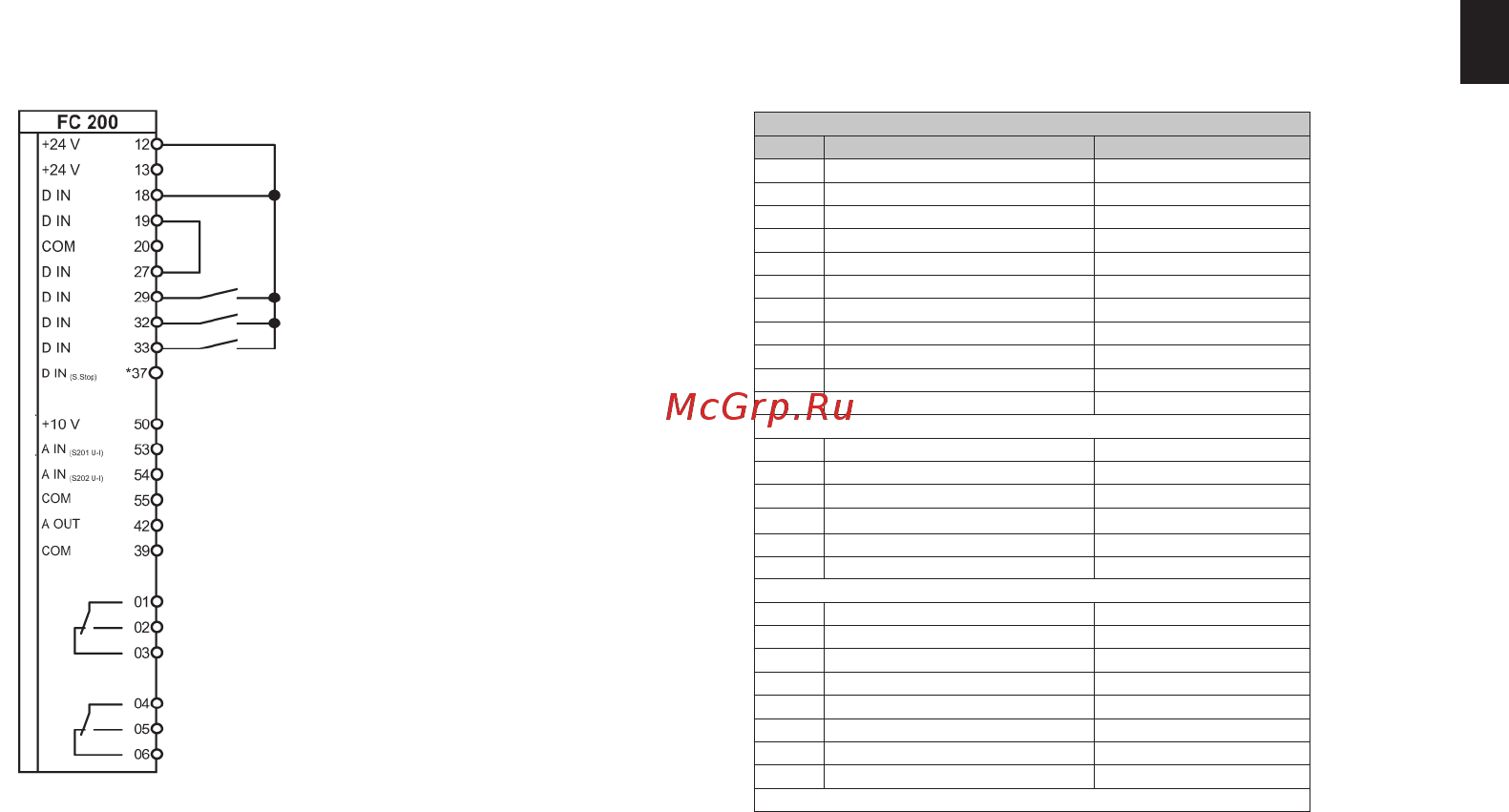

Three diﬀ erent speeds (preset references) can be selected

via ﬂ oating contacts.

Select Speed 1

Select Speed 2

Select Speed 3

Relevant parameters

Par. Function Setting

0-02 Hz/rpm selection [1] Hz

5-10 Terminal 18: digital input [8] Start*

5-11 Terminal 19: digital input [6] Stop (inverse)

5-01 Terminal 27 Mode [1] Output

5-30 Terminal 27: digital output [70] Logic rule 0

5-13 Terminal 29: digital input [16] Preset ref. bit 0

5-14 Terminal 32: digital input [17] Preset ref. bit 1

5-15 Terminal 33: digital input [18] Preset ref. bit 2

Internal logic rule

13-40[0] Boolean 1 [36] Digital input 29

13-41[0] Logic operation 1 [2] OR

13-42[0] Boolean 2 [37] Digital input 32

13-43[0] Logic operation 2 [2] OR

13-44[0] Boolean 3 [37] Digital input 33

References

3-10[1] Preset ref. 1 Desired Speed 1

3-10[2] Preset ref. 2 Desired Speed 2

3-10[4] Preset ref. 4 Desired Speed 3

* Factory setting

*Safe stop as option

Relay 2

Relay 1
