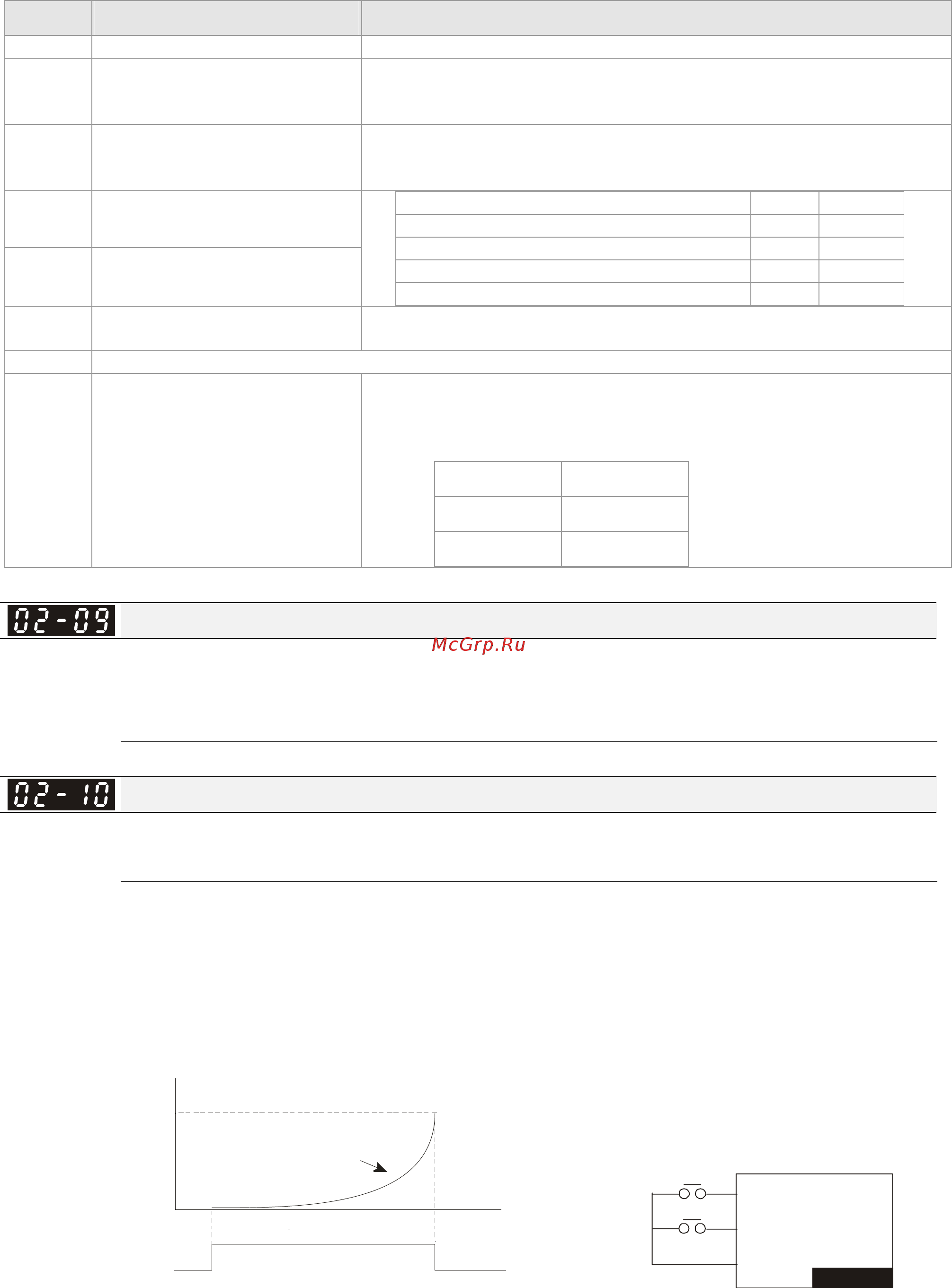

Chapter 11 Description of Parameter Settings|C200 Series
11-31
Settings Functions Descriptions
second group A2/B2 (refer to Pr.10-08 and Pr.10-09).
49 Drive enable
When drive=enable, RUN command is valid.
When drive= disable, RUN command is invalid.
When drive is in operation, motor coast to stop.
50 Master dEb action input
Input the message setting in this parameter when dEb occurs to
Master. This will ensure dEb also occurs to Slave, then Master and
Slave will stop simultaneously.
51 Selection for PLC mode bit0
52 Selection for PLC mode bit1
PLC status Bit 1 Bit 0
Disable PLC function (PLC 0) 0 0
Trigger PLC to operation (PLC 1) 0 1
Trigger PLC to stop (PLC 2) 1 0
No function 1 1
53 Enable CANopen quick stop
When this function is enabled under CANopen control, it will change to
quick stop. Refer to Chapter 15 for more details.
54~55 Reserved
56
LOCAL/REMOTE Selection
Use Pr.00-29 to select for LOCAL/REMOTE mode(refer to Pr.00-29)
When Pr.00-29 is not set to 0, on the digital keypad KPC-CC01 it will
display LOC/REM status. (It will display on the KPC-CC01 if the
firmware version is above version 1.021).
Bit 0
REM 0
LOC 1
UP/DOWN Key Mode
Factory Setting: 0
Settings 0: Up/down by the accel/decel time
1: Up/down constant speed (Pr.02-10)
Constant speed. The Accel. /Decel. Speed of the UP/DOWN Key
Factory Setting: 0.01
Settings 0.01~1.00Hz/ms
These settings are used when multi-function input terminals are set to 19/20. Refer to Pr.02-09 and
02-10 for the frequency up/down command.
Pr.02-09 set to 0: it will increase/decrease frequency command (F) by the external terminal
UP/DOWN key as shown in the following diagram. In this mode, it also can be controlled by
UP/DOWN key on the digital keypad.
OFF
ON
Time
Frequency
Frequency command
External terminal
UP key
DCM
DOWN
UP
VFD-Cx
Ml1~15
Ml1~15
Pr.02-09 set to 1: it will increase/decrease frequency command (F) by the setting of
acceleration/deceleration (Pr.01-12~01-19) and only be valid during operation.
