Chapter 7 Optional Accessories |C200 Series
7-16

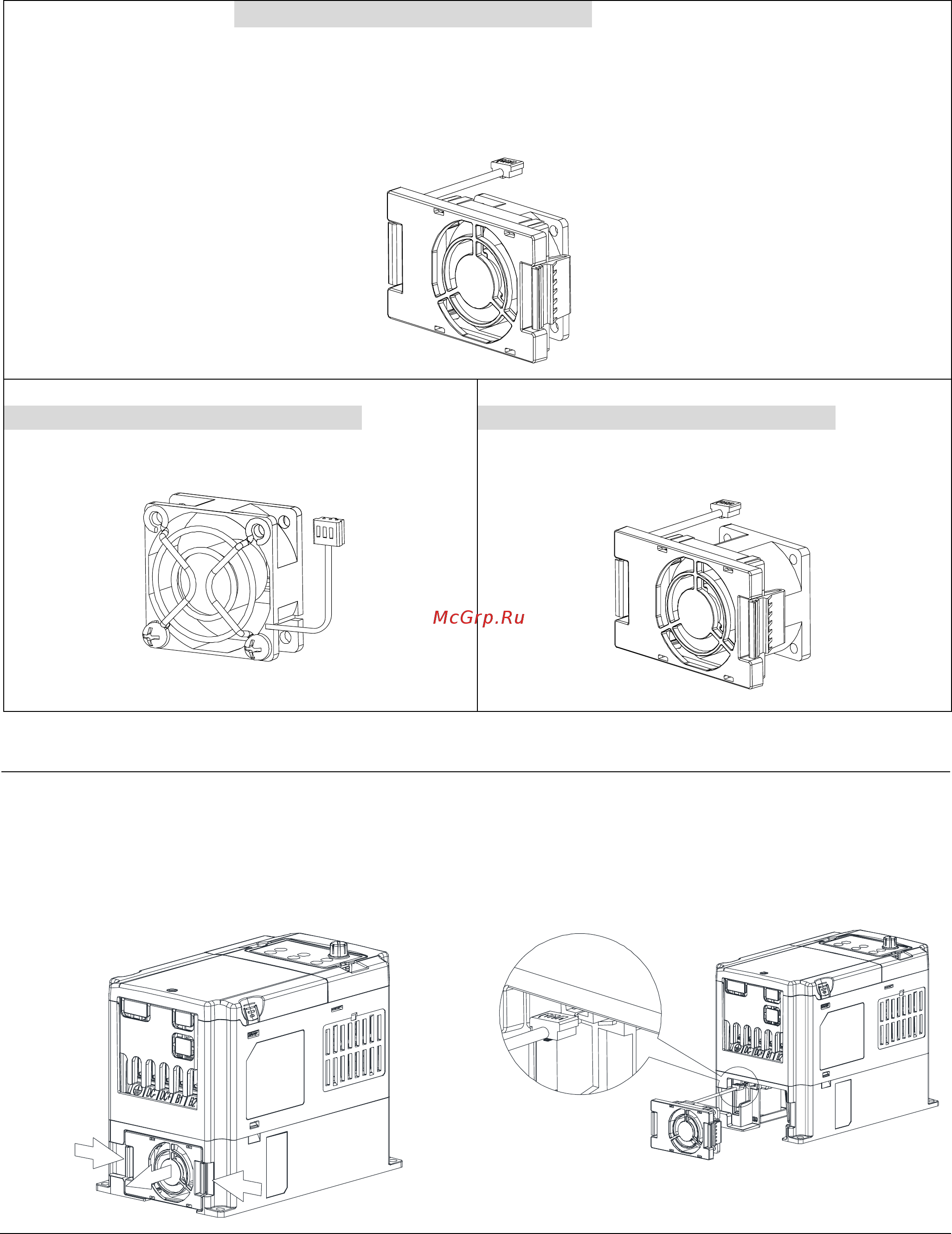

Fan Kit
Frames of the fan kit
Model『MKCB-AFKM1』This fan is a12Vdc ON/OFF control fan.
Applicable Model
VFD015CB21A-20/-21/-21M; VFD022CB21A-20/-21/-21M; VFD022CB23A-20/-21/-21M;
VFD037CB23A-20/-21/-21M; VFD022CB43A-20/-21/-21M; VFD037CB43A-20/-21/-21M;
VFD040CB43A-20/-21/-21M; VFD055CB43A-20/-21/-21M;
Model『MKCB-A0FKM』
This fan is a12Vdc ON/OFF control fan.
Applicable Model VFD015CB23A-20/-21/-21M;
Model『MKCB-AFKM2』
This fan is a12Vdc ON/OFF control fan.
Applicable Model VFD075CB43A-20/-21/-21M;
Fan Removal
Frame A0
Applicable model
VFD015CB21A-20/-21/-21M; VFD022CB21A-20/-21/-21M; VFD022CB23A-20/-21/-21M;
VFD037CB23A-20/-21/-21M; VFD022CB43A-20/-21/-21M; VFD037CB43A-20/-21/-21M;
1. Press the tabs on both side of the fan to
successfully remove the fan. (The arrow)
2. Disconnect the power terminal before removing
the fan. (As shown below.)
