Chapter 5 Main Circuit Terminals|C200 Series

5-5

Frame A

Main circuit terminals :

R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,

, DC+(+2,+1), DC-, B1, B2

Models

Max. Wire

Gauge

Min. Wire Gauge

Torque

(±10%)

VFD040CB43A-20/-21/-21M 10 AWG (5.3mm

)

VFD055CB43A-20/-21/-21M 10 AWG (5.3mm

)

VFD075CB43A-20/-21/-21M

8 AWG

(8.4mm

)

8 AWG (8.4mm

)

20kg-cm

(17.4 lb-in.)

(1.96Nm)

UL installations must use 600V, 75℃ or 90℃ wire. Use copper wire only.

NOTE

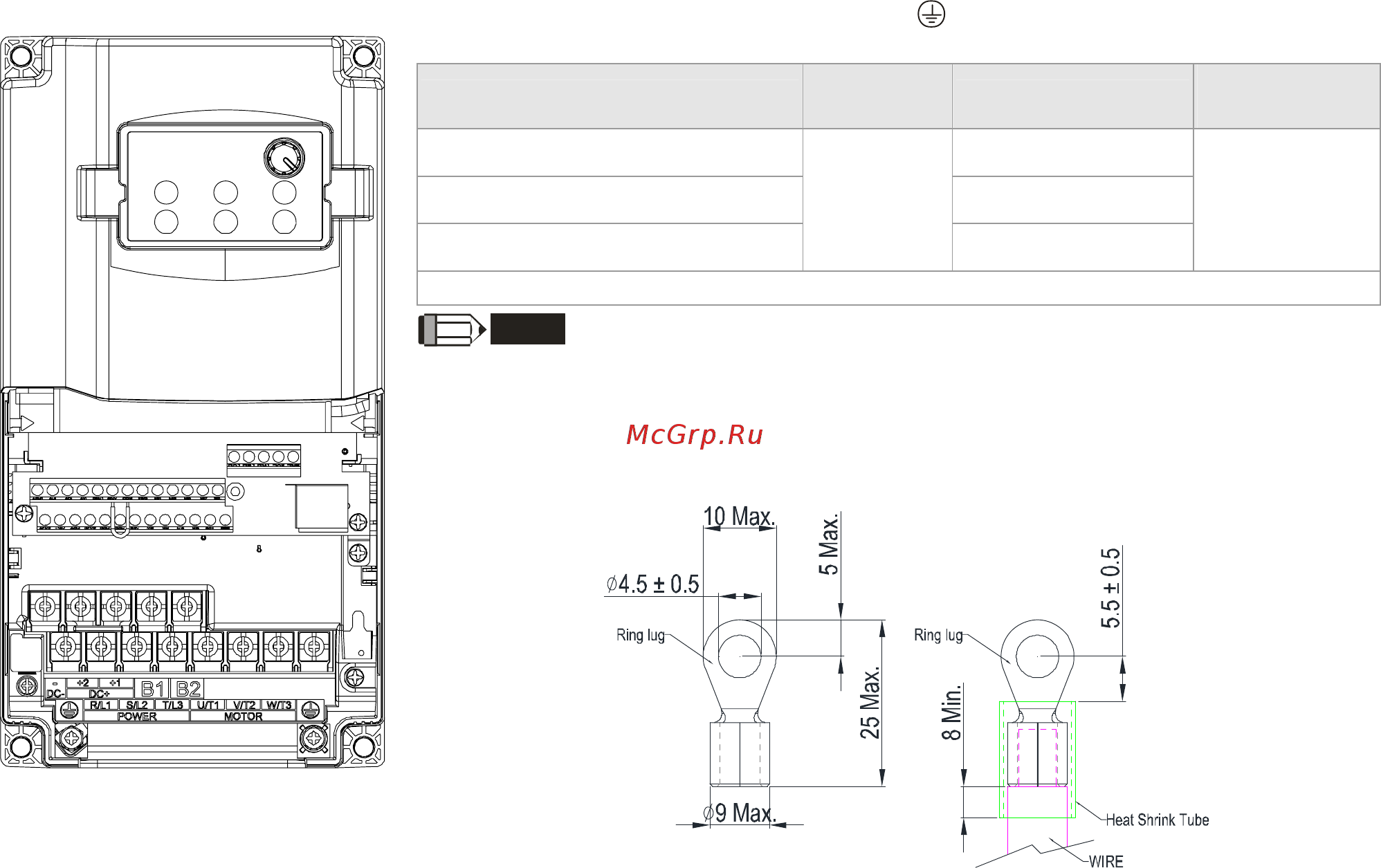

Figure 1 shows the terminal specification.

Figure 2 shows the specification of insulated heat shrink tubing that comply with

UL (600V, YDPU2).

Figure 1 Figure 2
