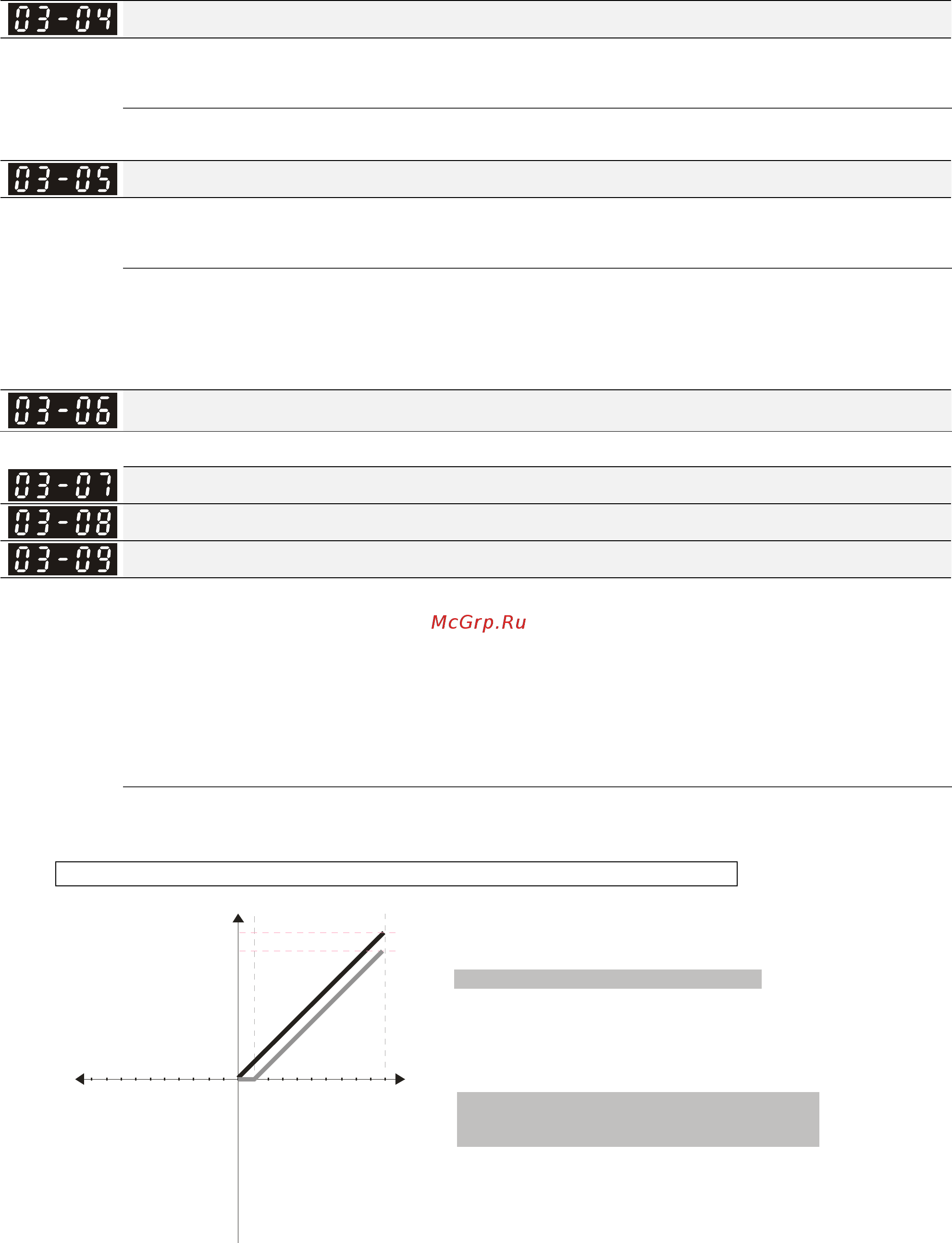

Chapter 11 Description of Parameter Settings|C200 Series
11-45
Analog Input Bias (ACI)
Factory Setting: 0
Settings -100.0~100.0%
It is used to set the corresponding ACI voltage of the external analog input 0.
Analog Voltage Input Bias (AUI)
Factory Setting: 0
Settings -100.0~100.0%
It is used to set the corresponding AUI voltage of the external analog input 0.
The relation between external input voltage/current and setting frequency: 0~10V (4-20mA)
corresponds to 0-60Hz.
Reserved
Positive/negative Bias Mode (AVI)
Positive/negative Bias Mode (ACI)
Positive/negative Bias Mode (AUI)
Factory Setting: 0
Settings 0: Zero bias
1: Lower than or equal to bias
2: Greater than or equal to bias
3: The absolute value of the bias voltage while serving as the center
4: Serve bias as the center
In a noisy environment, it is advantageous to use negative bias to provide a noise margin. It is
recommended NOT to use less than 1V to set the operation frequency.
In the diagram below: Black color line: Frequency. Gray color line: Voltage
1051 234 6789
V
60H z
54H z
10 6 12345798
-V
Frequenc
y
Pr.03-07~03-09 (Positive/Negative Bias Mode)
Pr.03-10 (Analog Frequency Command for Reverse Run)
Pr.03-11 Analog Input Gain (AVI)= 100%
Pr.03-03=10%
0: Negative frequency is not valid.
Forward and reverse run is controlled
by digital keypad or external terminal.
1: Neagtive frequency is valid. Positive
frequency = forward run; negative
frequency = reverse run. Direction
can not be switched by digital keypad or
external teriminal control.
0: No bias
1:
2: Greater than or equal to bias
3: The absolute value of the bias voltage
while serving as the center
4: Serve bias as the center
Lower than or equal to bias
