Chapter 4 Wiring|C200 Series
4-3
Figure 1

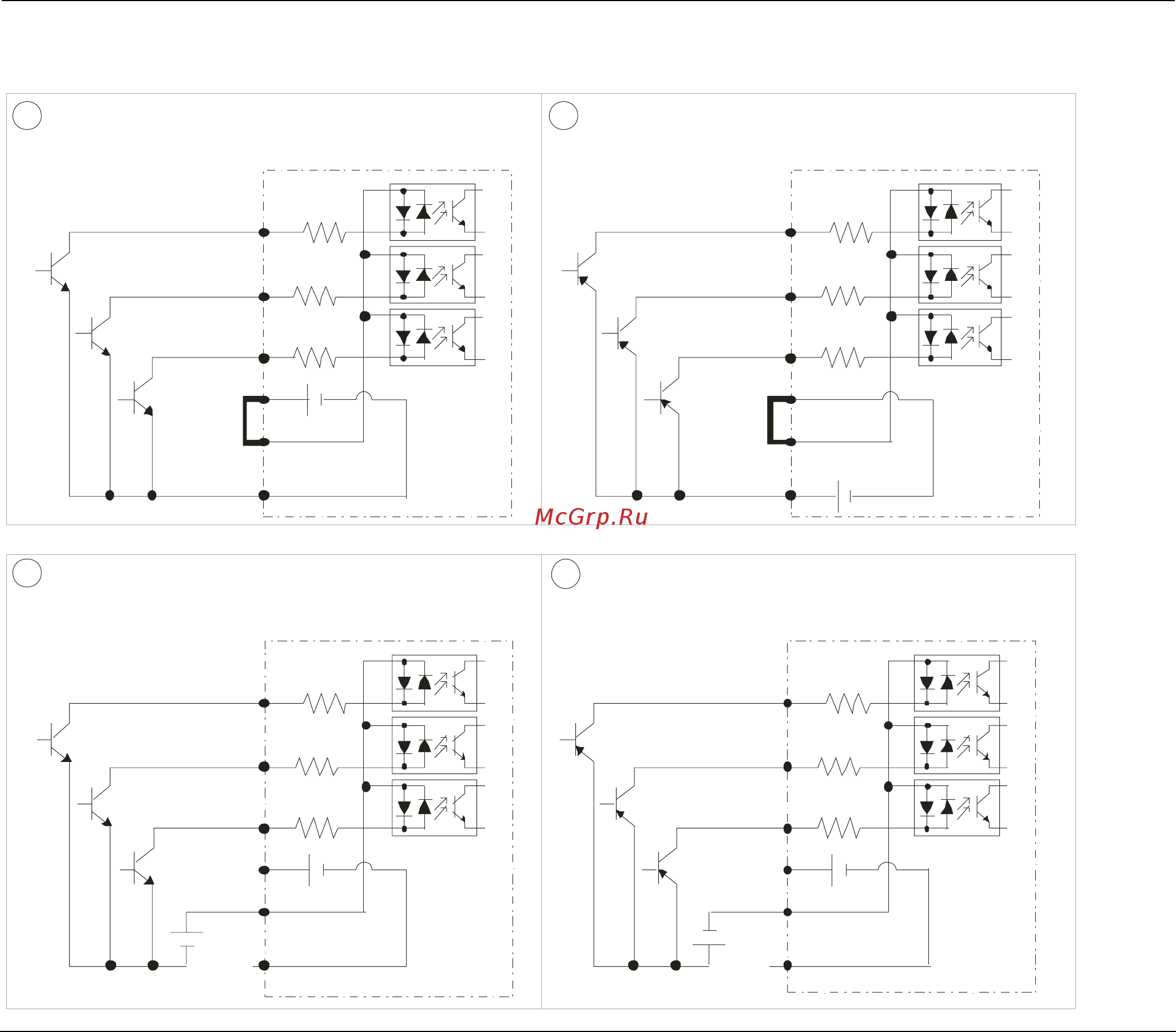

SINK（NPN）/SOURCE（PNP）Mode
1
2
DCM
MI1
+2 4V
MI2
MI8
~
COM
DCM
MI1
+24V
MI2
MI8
~
COM
Sink Mode Source Mode
with internal power (+24VDC)
with internal power (+24VDC)
internal c ircuit
internal c irc uit
3
4
DCM
MI1
+2 4V
MI2
MI8
~
COM
DCM
MI1
+2 4V
MI2
MI8
~
COM
Sink Mode Source Mode
with external power
with external power
internal circuit
internal circuit
external power +24V
external power +24V
