EMOTRON DSV 5445/5444
21.04.09 Emotron
Page 15

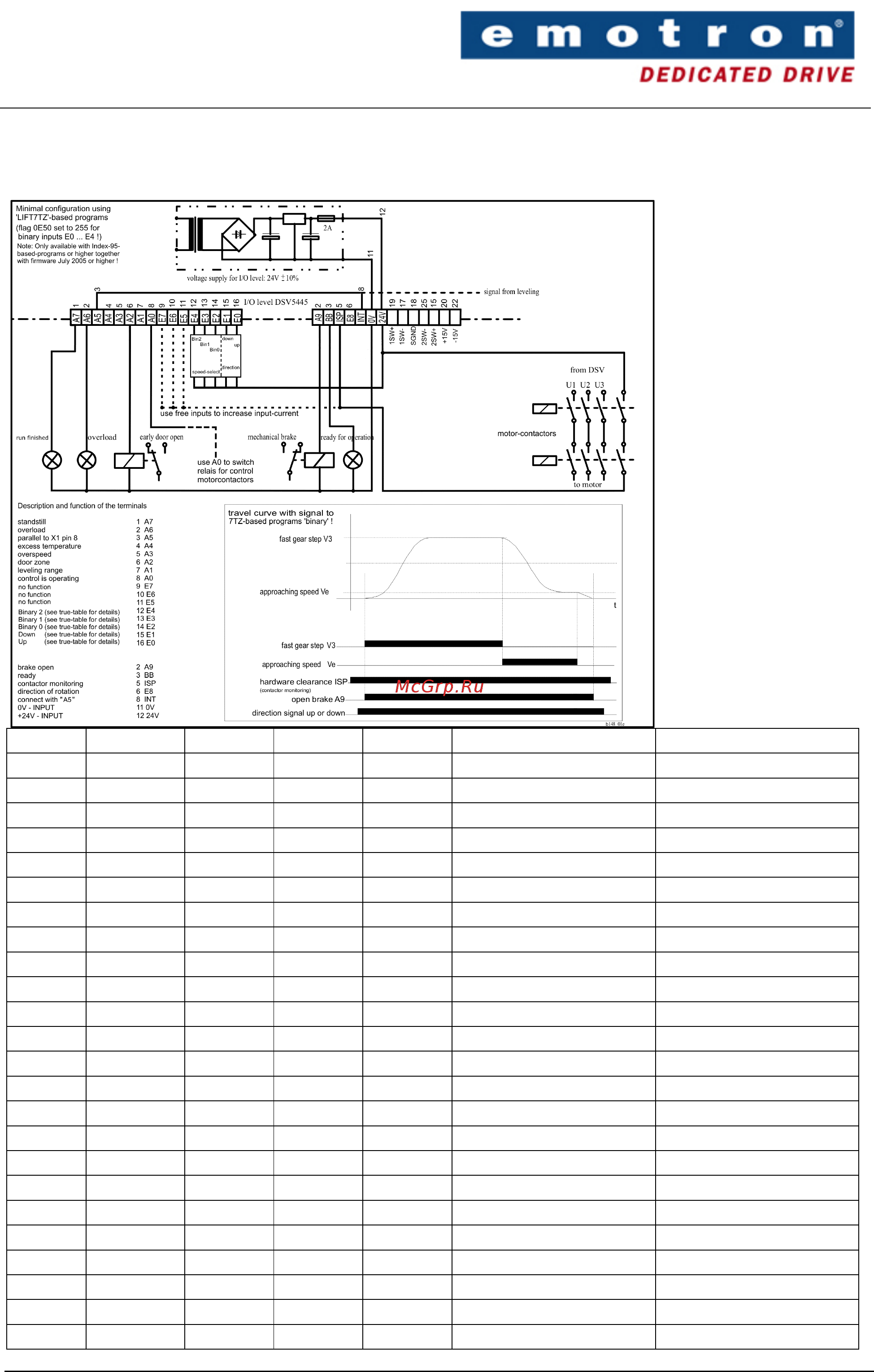

4.5.2 Connection example 7TZ with binary inputs for speed and direction (0E50 = 255/-256)
Up Down Bin 0 Bin 1 Bin 2 Action Findili / binary-flag
E0 E1 E2 E3 E4 DSV to Lift-PLC 0E50
0 0 x x x Emergency stop 255 or -256
1 0 x x x Up-direction 255 or -256
0 1 x x x Down-direction 255 or -256
1 1 x x x No operation 255 or -256
1 0 0 0 0 Stop (normal mode) 255 or -256
1 0 0 1 0 Ve 255 or -256
1 0 0 0 1 Vi 255 or -256
1 0 1 0 1 V1 255 or -256
1 0 1 1 0 V1 -256
1 0 0 1 1 V2 255 or -256
1 0 1 1 0 V3 255
1 0 1 1 1 V3 -256
1 0 1 0 0 Vn 255 or -256
0 1 0 0 0 Stop (normal mode) 255 or -256
0 1 0 1 0 Ve 255 or -256
0 1 0 0 1 Vi 255 or -256
0 0 1 0 1 V1 255 or -256
0 1 1 1 0 V1 -256
0 1 0 1 1 V2 255 or -256
0 0 1 1 0 V3 255
0 1 1 1 1 V3 -256
0 1 1 0 0 Vn 255 or -256
0 0 0 0 0 Wait to a next ride 255 or -256
** This new function of flag 0E50h works only in newer 7TZ-based programs ≥ ''index 99' together with inverter-firmware ≥ ‘July 2007’
