EMOTRON DSV 5445/5444
Page 28
Emotron 21.04.09
6.2 Commissioning with EmoSoftLift W95 / W98 / ME / W2000 / NT4 / XP VISTA
The EmoSoftLift program is very powerful. You can configure and even program the system both online
and offline.
EmoSoftLift needs at least “80486”, 16 MB memory and Windows 95/98/ME or NT4/W2000/XP/VISTA and a
special RS232 interface cable shown in Chapter INTERFACE X4.
The CNF files or CFG files form the user menu control and are also adaptable if required.
EmoSoftLift also installs several important basic data sets and command programs, which simplify
commissioning for you – in the case that they were not loaded already in the factory.
6.2.1 Installation of EmoSoftLift

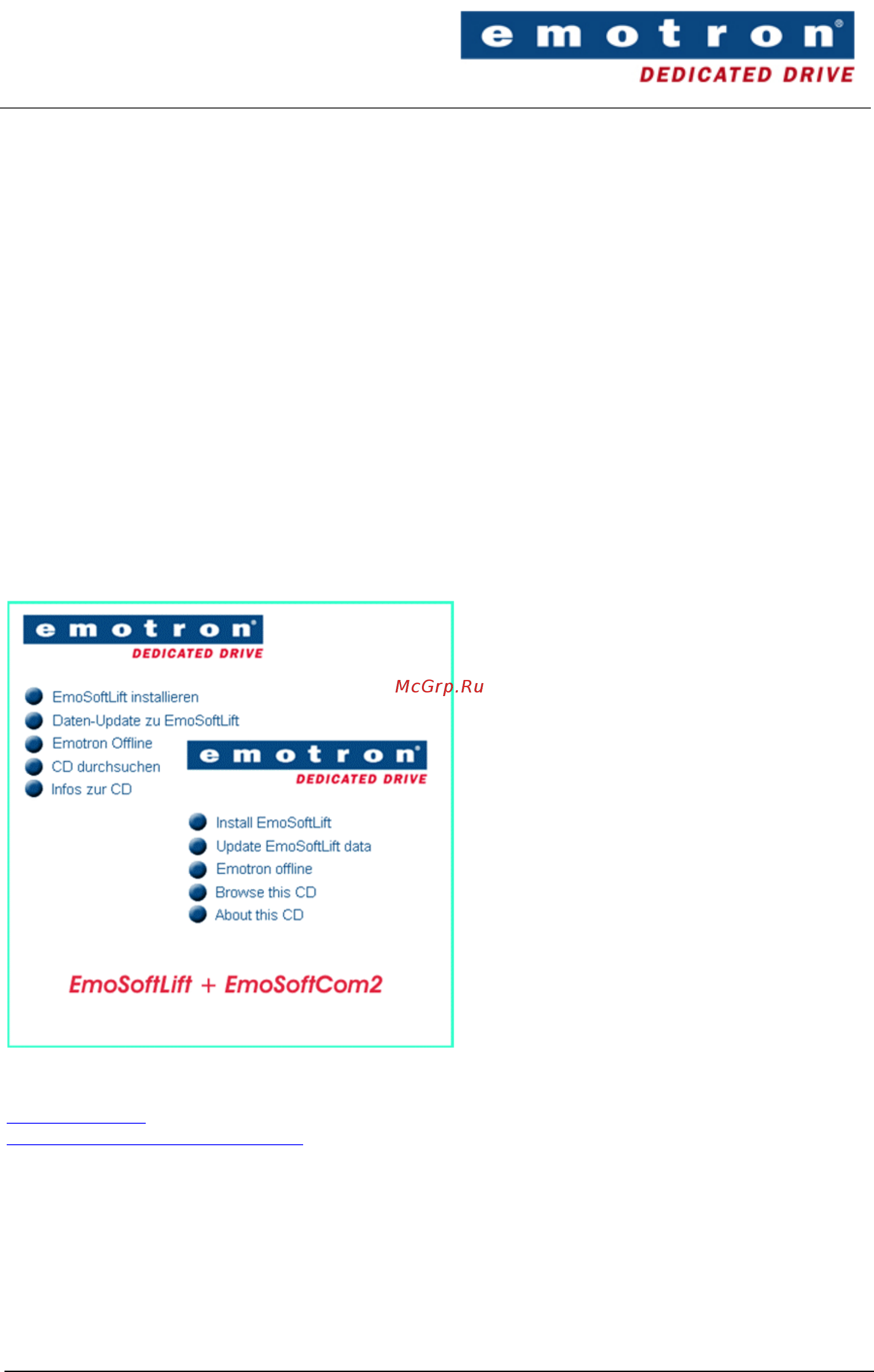

If you are using an actual EmoSoftLift-CD AUTORUN starts the setup-window. First do the installation and
after this the update-function from CD. If the CD is older than 3 months then better do the update using the
integrated online-function within EmoSoftLift. If you can not start AUTORUN from here, try to start
EmoSoftLift manually from path z:\terminal\EmoSoftLift. 'z' means here the CD-ROM and 'x' the version you
want to have. This is also valid for the update from CD with 'DATEN.ZIP' which you have to unzip manually if
AUTORUN does not work.
If you are visiting our download website for receiving the actual version of EmoSoftLift you have to register.
For this you need a customer number and your email address. Visit our website or try directly click to URL:
www.emtron.com
go to ‘’downloads’’ ‘’products’’ ‘’variable speed drives Emotron DSV/GSV’’ or the old URL:
www.dietz-electronic.de/dowload.htm
you will be redirected automatically (only fill out the ‘’registry-form’’) …
You can get the zipped full version of EmoSoftLift (appr. 8MB) from the download site. Try and click 'link' …
download zipped file 'EmoSoftLift. After the setup please use the online-update-function of EmoSoftLift for
getting additional actual files. If your PC/laptop has no connection to the Internet please try to get at least the
file DATEN.ZIP and unzip it to the EmoSoftLift-folder DATEN. You only need the full version if you have
installed a EmoSoftLift version lower than 1.16 resp. Your PC/laptop has no connection to the Internet.
Otherwise the new online-update-function completes EmoSoftLift.
