6.2.3 EmoSoftLift Parameter-Editor and Online Help







Ensure that your system is set to "return" so that no drive commands are initiated while you

change data in the DSV.

6.2.3.1 Changing data in the DSV

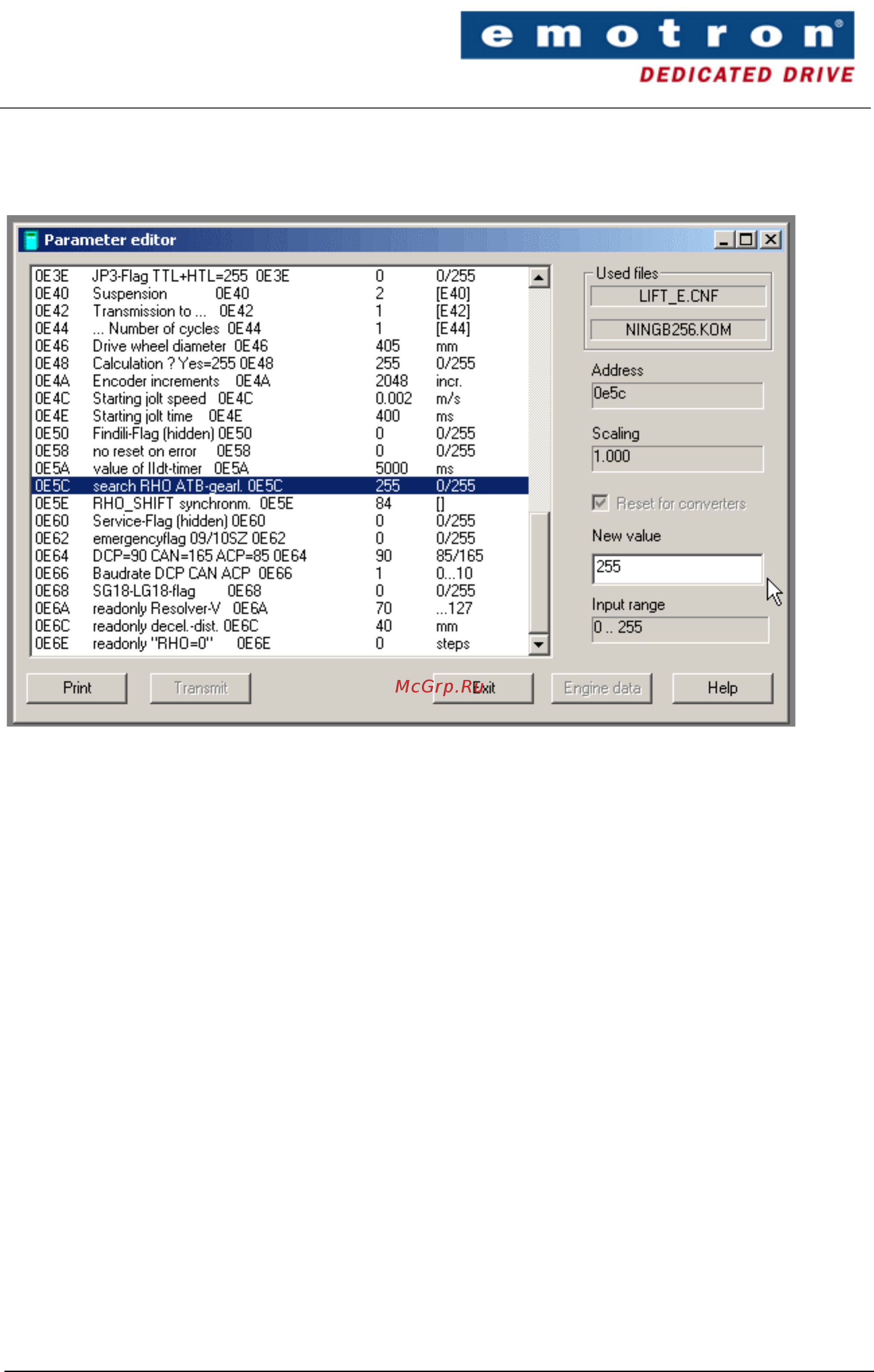

The most important function is "Edit parameter of converter" in the menu “Parameter”. After the read-out of

the data in the DSV you can change any given parameters or variables. Pressing the button “Send” starts the

transmission of all parameters and variables back to the DSV. A RESET is necessary for storing the data in

its EEPROM and validate them. The parameters F0 rotor flux and t rotor time constant can be evaluated

automatically by using the function “Motor data”. This function is only appropriate for 2 – 6 pole

asynchronous motors with 25 – 100Hz. Please check the evaluated values F0 and t by means of the table in

Chapter EXPLANATIONS TO THE PARAMETERS.

6.2.3.2 Backup of parameters and variables

To perform a "data backup" of the DSV use the function “File – complete read-out from DSV to PC” (Tip:

Enter the project or controller number as the file name like 12345, then you later have a clear relation

between the data status and the hardware on site). The backup file you can find in the subdirectory “Daten”

(factory setting) or in the assigned path e.g. 12345.KOM. The file ending “.KOM” is attached automatically.

6.2.3.3 Transmission of parameters and variables to DSV

For transmission of the selected file from PC/laptop to the DSV use the function “File – Complete transfer

from PC to DSV”. In the select window you can find all files ending *.KOM resp. *.UPD. Files ending .KOM

are prepared with complete settings incl. parameters/variables.

Files ending .UPD include no or not all parameters/variables; that is why *.UPD files are capable for update

only.
