CHV190 series special inverter for crane
- 167 -
Function code
Name Selection
Description
P6.05 Relay 2 output 7 Brake output
P6.07 AO1 output 0 Running frequency
P6.08 AO2 output 4 Current output
P8.04 Brake, contactor control
1
Brake is controlled by
inverter
P8.16 Inverter stop delay time 0.25s Delay time of stop
B.2 Remote Control Mode

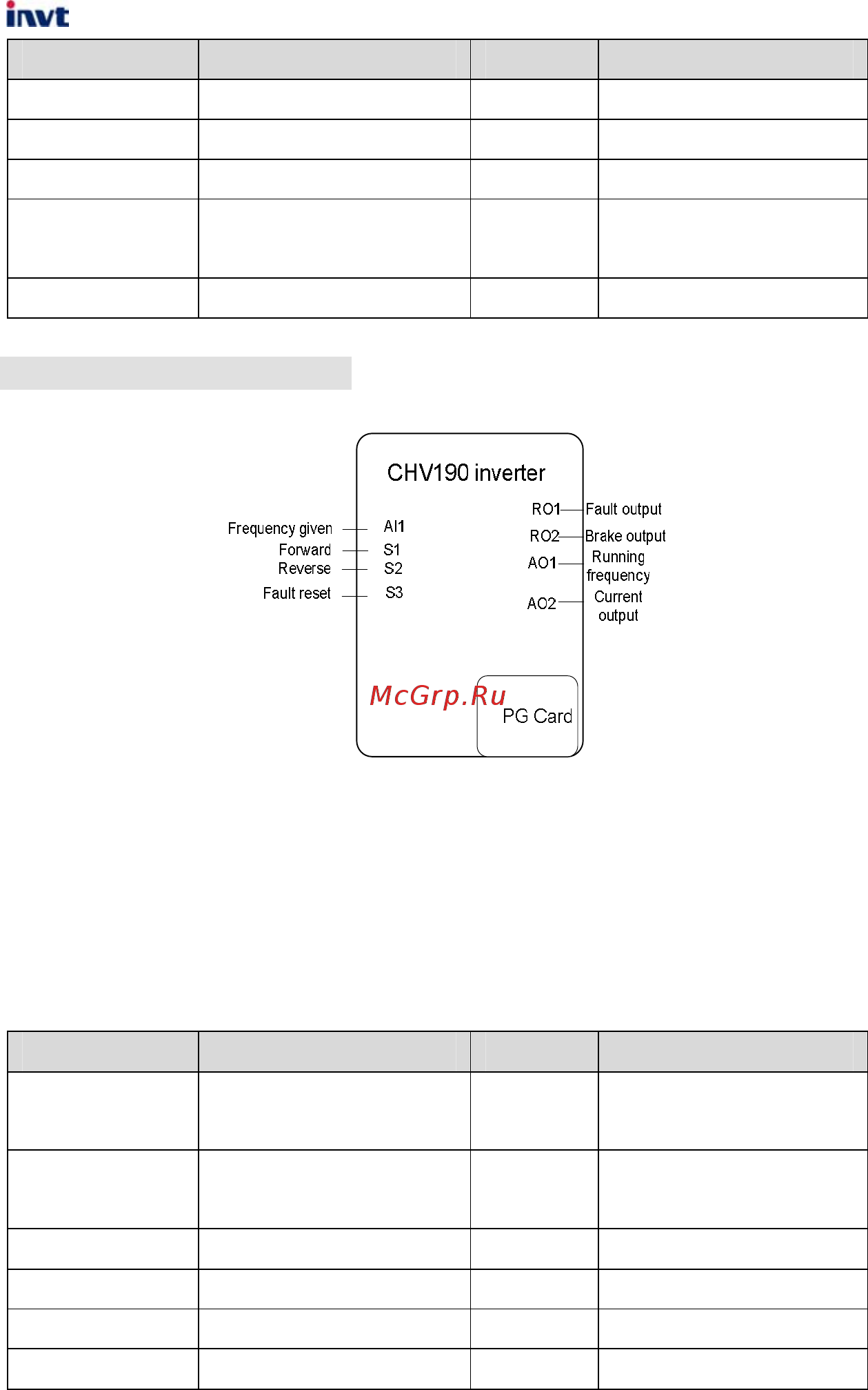

Remote control model wiring diagram is as follows:
If set P0.11=2, remote control mode is valid when operating lever is connected to wireless
controller or PLC.
Speed is given by analog AI1, digital terminal S1 and S2 control crane running up and
down. If inverter receives two directions simultaneously, it will coast to stop; keypad will
not display the fault information.
Zero-position detection is invalid in this mode.
Remote control mode parameter settings are as follows:
Function code
Name Selection
Description
P0.01 Run command source 1
Terminal command
channel (LED flashing)
P0.02
Speed command
selection
1 Analog AI1 given
P1.09 Linear acceleration time
4.0s Acceleration time
P1.10 Linear deceleration time
4.0s Deceleration time
P5.01 S4, S5 input type 0 ON/OFF input
P5.02 S1 terminal function 1 Forward (FWD)
