CHV190 series special inverter for crane
- 172 -
Function code
Name Selection
Description
P0.01 Run command source 1
Terminal command
channel (LED flashing)
P0.02 Speed command source
5 Up/down terminal given
P1.09 Linear acceleration time
4.0s Acceleration time
P1.10 Linear deceleration time
4.0s Deceleration time
P5.01 S4, S5 input type 0 ON/OFF input
P5.02 S1 terminal function 1 Forward (FWD)
P5.03 S2 terminal function 2 Reverse (REV)
P5.04 S3 terminal function 6 Fault reset (RET)
P5.05 S4 terminal function 22
Frequency setting
increase (UP)
P5.06 S5 terminal function 23
Frequency setting
decrease (DOWN)
P6.04 Relay 1 output 4 Fault output
P6.05 Relay 2 output 7 Brake output
P6.07 AO1 output 0 Running frequency
P6.08 AO2 output 4 Current output
P8.04 Brake, contactor control
1
Brake is controlled by
inverter
P8.16 Inverter stop delay time 0.25s Delay time of stop

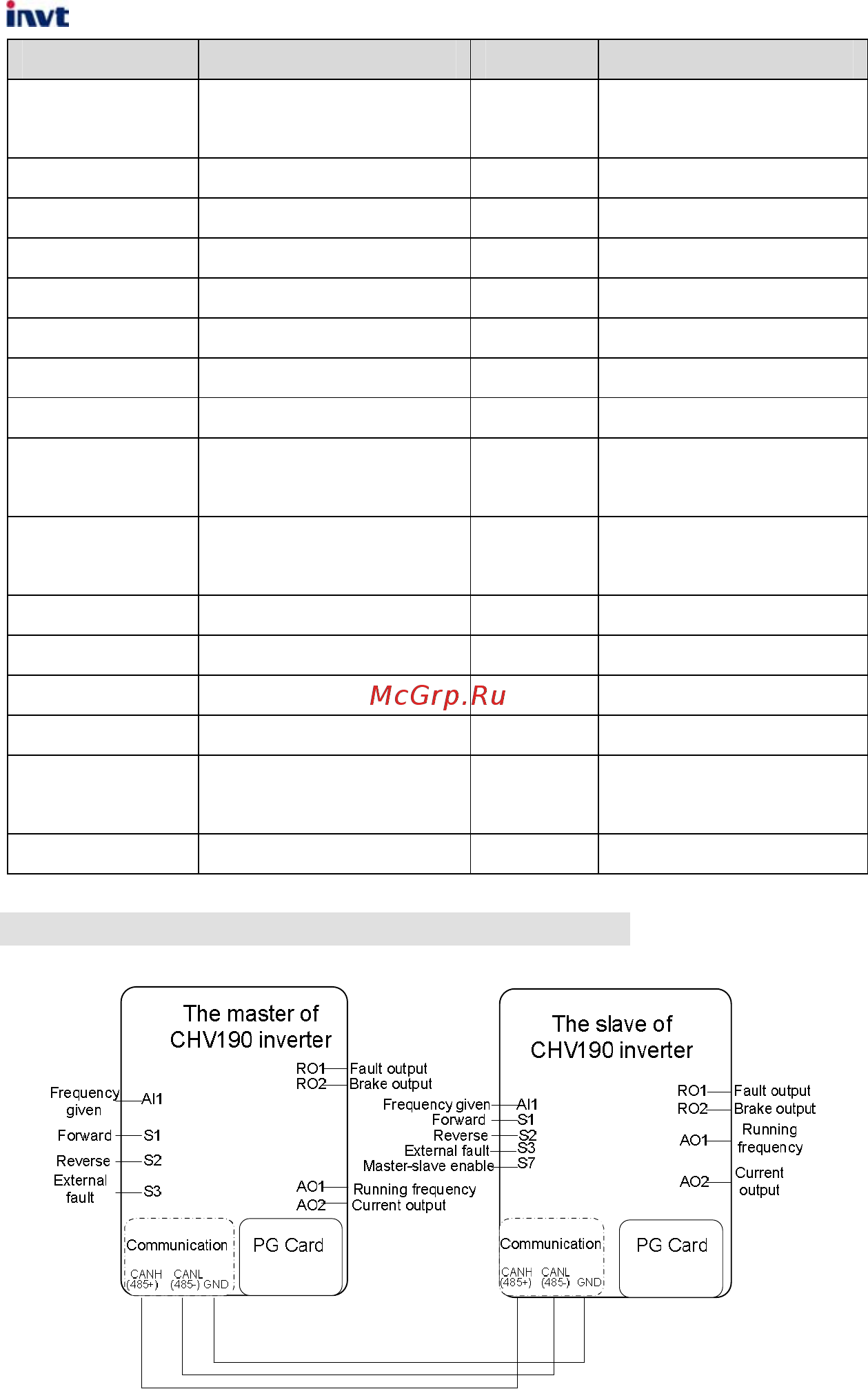

B.6 Master-slave Power Equilibrium Host Mode
Master-slave power balance host mode wiring diagram is as follows:
