CHV190 series special inverter for crane
- 188 -
A
(mm)
B
(mm)
H
(mm)
W (mm)
D
(mm)
Power
(kW)
Size
Installation
Dimension
External Dimension
Installat
ion h
ole
(mm)
18.5~30 E 176 454.5
467 290 215 6.5
37~55 F 230.0
564.5
577.0
375.0 270.0
7.0
75~110 G 320.0
738.5
755.0
460.0 330.0
9.0
H (without
base)
270 1233 1275 490 391 13
132~185
H (with
base)
—— —— 1490 490 391 ——
I (without
base)
500 1324 1358 750 402 12.5
200~315
I (with
base)
—— —— 1670 750 402 ——
350~500
—— —— —— 1950 1200 502 ——

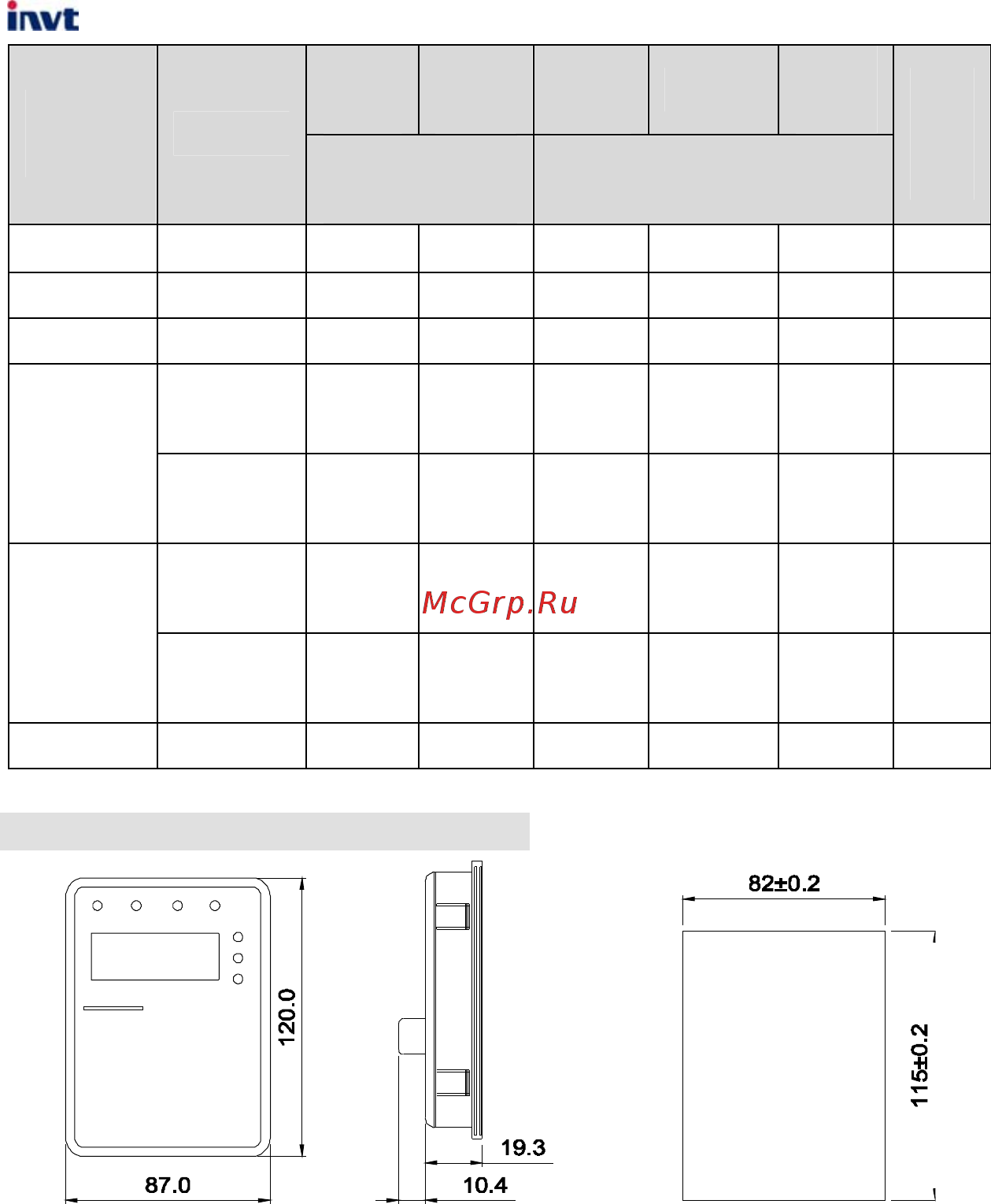

D.2 Dimensions of External Keypad
Figure D.4 Dimension of keypad
