CHV190 series special inverter for crane
- 171 -
Function code
Name Selection
Description
P6.05 Relay 2 output 7 Brake output
P6.07 AO1 output 0 Running frequency
P6.08 AO2 output 4 Current output
P8.04 Brake, contactor control
1
Brake is controlled by
inverter
P8.16 Inverter stop delay time 0.25s Delay time of stop
B.5 Electric Potential Mode

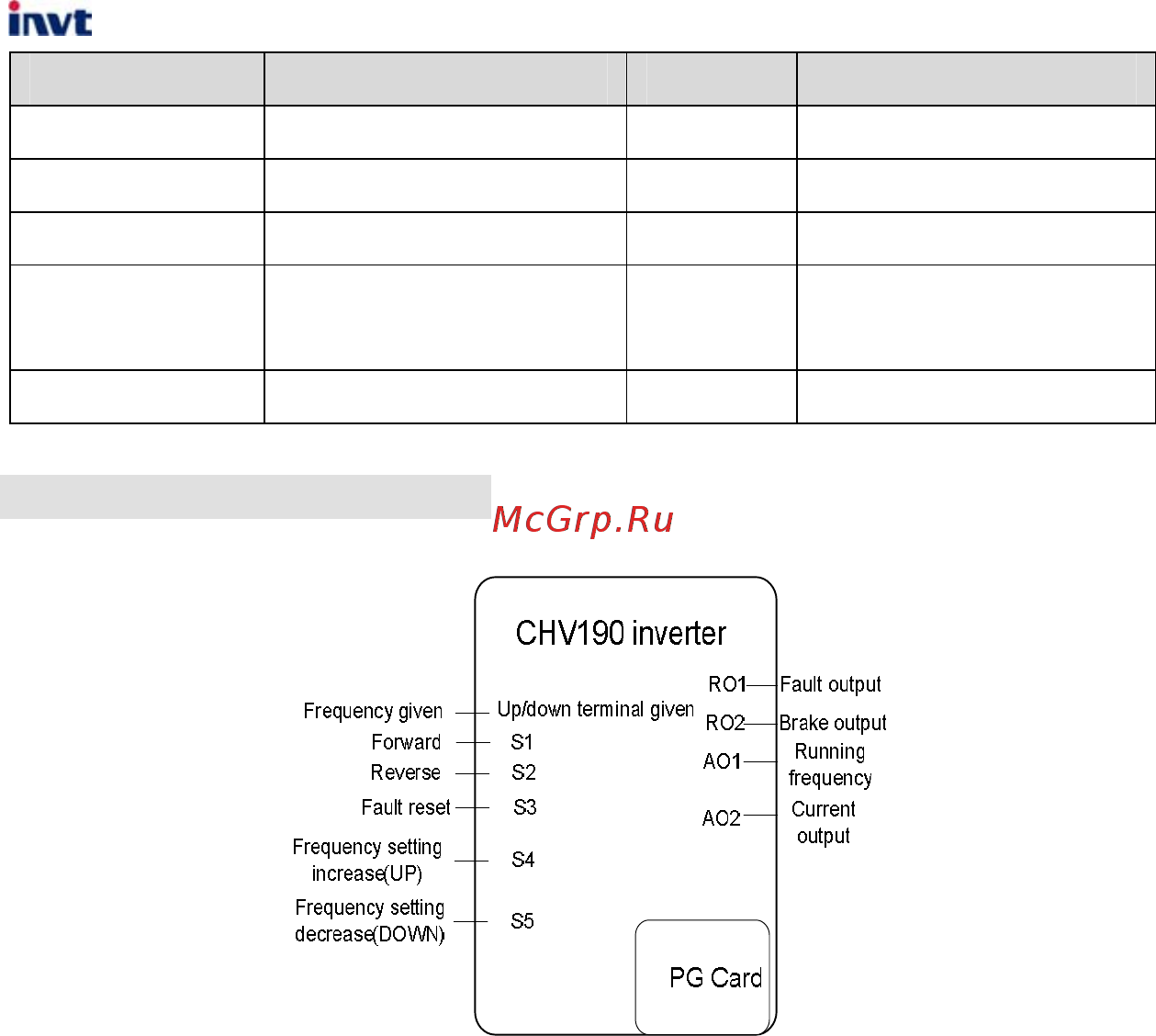

Electric potential mode wiring diagram is as follows:
If set P0.11= 5, Electric potential mode is valid which use a button provide reference of
acceleration and deceleration commands.
Digital terminal S1 and S2 control crane running up and down. If inverter receives two
directions simultaneously, it will coast to stop; keypad will not display the fault information.
Acceleration and deceleration commands are connected to S4 and S5. If acceleration
contact closes after inverter starts accelerating toward 100% speed with certain slope. If
acceleration signal is removed before reaching 100%, inverter stops accelerating and runs
at current speed. If acceleration signal apply again, inverter accelerates according to
100% speed with certain slope again. Deceleration command is the same as acceleration
command.
If direction command is removed, inverter decelerates toward zero speed with certain
slope. If direction command is given again before inverter stops, it stops deceleration and
runs at current speed.
Electric potential mode parameter settings are as follows:
