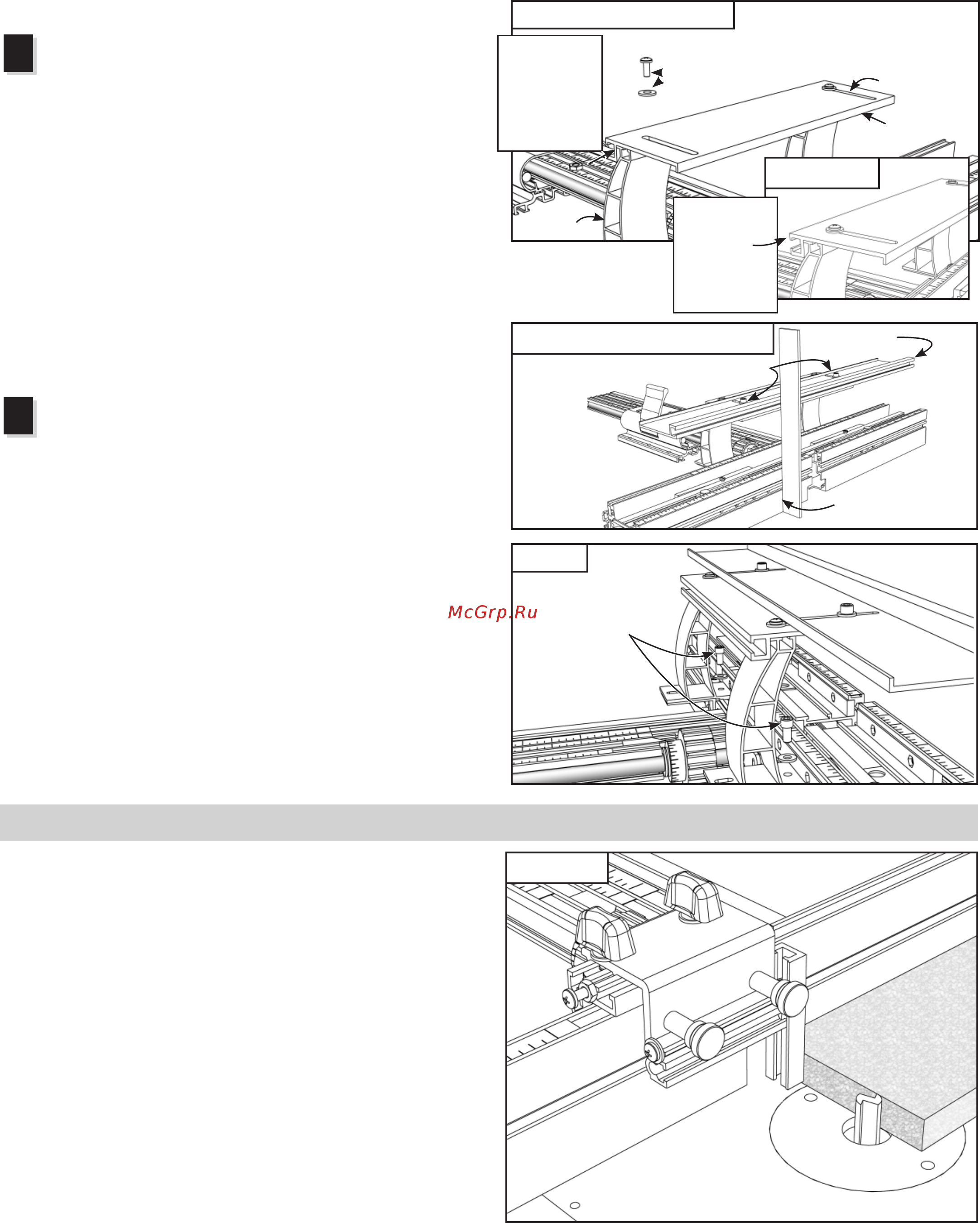

10 INCRA Woodworking Tools & Precision Rules
Attach the Cap Extender
Place a ¼” washer on each of the (2) #10-32 x ½”
Phillips pan head screws and insert through the slotted
holes located in the fence cap extender. Loosely
thread a #10-32 hex nut onto each fastener, then slide
the hex nuts into the T-slot located on the top of each
fence cap brace. Position the cap extender so you
can later gain access to the socket head fasteners on
each fence cap brace through the slotted holes. Pull
the cap extender forward until it firmly contacts the
back of each brace and tighten the (2) Phillips head
screws. See Fig. 19 and Detail 19A.
Attach and Align Fence Cap
Place the 24” long fence cap on top of the cap
extender and attach using the (2) ¼-20 x
5
/8” socket
head cap screws with ¼” washers and lock nuts. Use
a straightedge to align the leading edge of the fence
cap with the front face of the Wonder Fence and tighten
the two cap mounting screws, Fig. 20. To remove the
fence cap and braces, just remove the two fasteners
that secure the braces to the top of the Pro II or
TS Fence and lift the entire unit off, Fig. 21. Place the
fasteners back into the threaded holes in the dual pilot
rectangular nuts for storage.
2
3
FIG. 19 Aach cap extender
First: Insert
fasteners and
slide #10-32
hex nuts into
T-slot on top
of braces
#10-32 x ½”
Phillips screw with
¼” flat washer
Second: Position cap
extenders to allow future
access to socket head
screws through sloed
hole
Fence cap extender
DETAIL 19A
Third: Slide
cap extender
forward to
contact brace,
then tighten
screws
Brace
FIG. 20
Aach and align fence cap
First: Aach
fence cap to
cap extender
Second:
Use
straight-edge to
align fence cap, then
tighten screws
Fence cap
FIG. 21
To remove fence
cap and braces,
unscrew the
(2) ¼-20 x
5
/8”
socket head
screws
SHOP STOP
When used in conjunction with your new Pro II Fence
or Wonder Fence, the INCRA Shop Stop provides
the same precise positioning capabilities that your
LS Positioner offers. The patented incremental
positioning of INCRA’s saw-toothed racks found on
the Shop Stop and your INCRA fence allow perfectly
repeatable stop locations at any multiple of
1
/32”
(1mm for metric version.) The two-piece body can
be micro adjusted to any position between steps and
can be configured to clamp to your fence even when
using wooden sub fences up to ¾” thick. Follow the
instructions on the next page to set up and use the
Shop Stop.
Shop Stop
¼-20 x
5
/8” socket head screws
