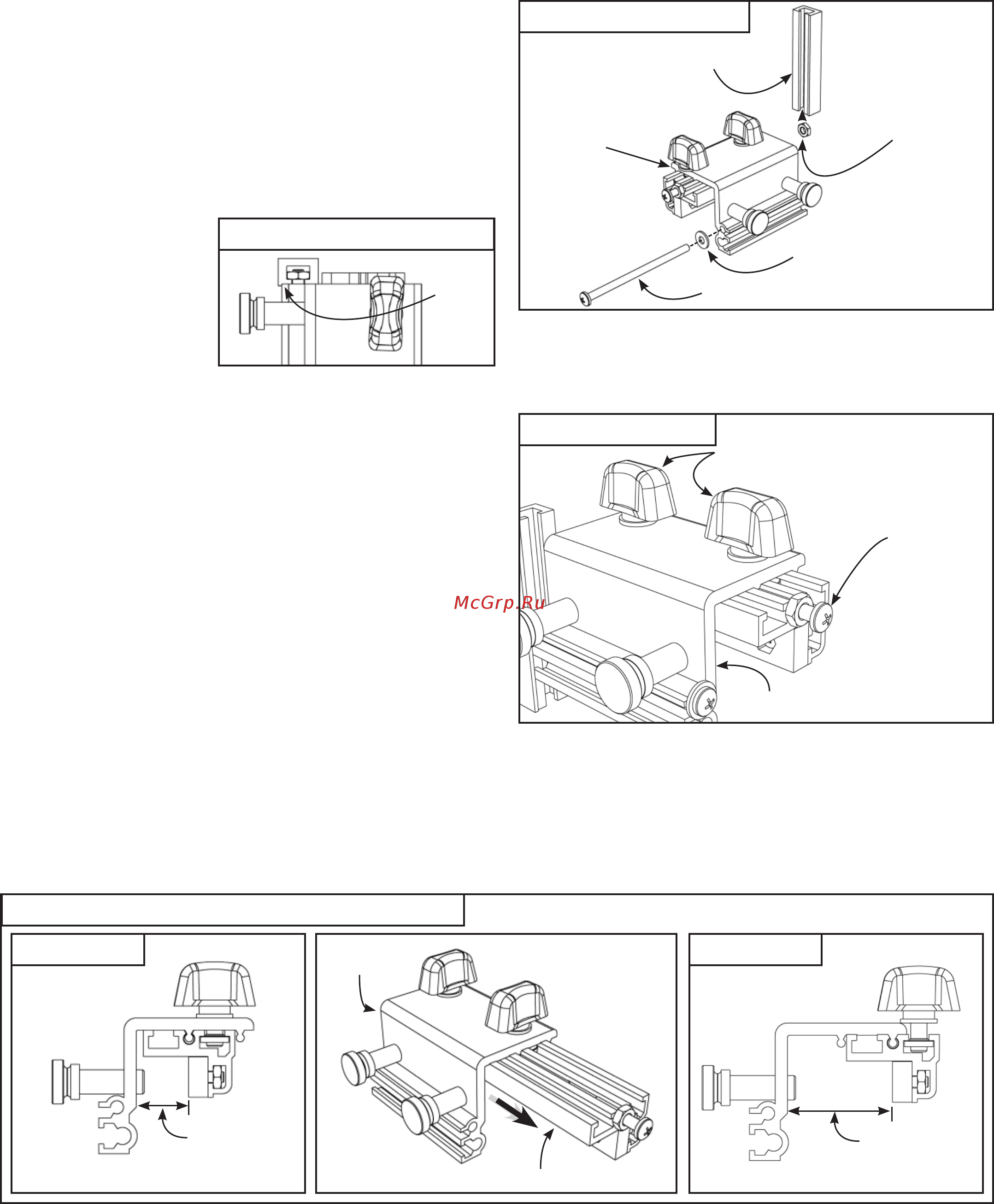

INCRA LS Positioner Owner’s Manual 11
Shop Stop Assembly
After removing the Shop Stop from the packaging,
loosen the two white nylon thumbscrews and clamp
the stop to the outfeed end of your INCRA fence. Now
loosen the #10-32 x 3½” Phillips head screw and slide
the red vertical stop arm onto the hex nut, Fig. 22.
Make sure that the indexing lip on the arm wraps
around the front of the stop body and that the arm is
flat against the end of the body, Fig. 23. Tighten the
fastener to secure the arm a short distance above your
router table to provide
clearance for sawdust.
The fastener and stop
arm can be reversed for
use at either end of your
fence.
FIG. 22
Shop Stop assembly
Shop Stop
#10 flat washer
#10-32 x 3½” Phillips head screw
#10-32
hex nut
slides into
T-slot on
vertical
stop arm
Vertical stop arm
FIG. 23
Top view of vertical stop
Indexing
lip
Micro Adjusting
Fine-tuning the position of your Shop Stop relative to
a cutter is easy and accurate. Just loosen the two
black thumbscrews on top of the Shop Stop body
about
1
/8 turn, then turn the machine screw located
at the end of the stop, Fig. 24. Each full turn of the
screw moves the stop surface exactly
1
/32” (approx.
1mm.) When turning the screw counterclockwise,
push the stop body toward the screw. Always tighten
the two black thumbscrews after micro adjusting.
FIG. 24
Micro adjusting
First: Loosen both black thumbscrews.
Leave both white thumbscrews fully
tightened if already installed on fence
Second: Turn
micro adjust
screw to move
stop body
position
Third: Tighten
both black
thumbscrews
Stop body
FIG. 25
Converting from standard to expanded clamping mode
Small gap
Large gap
Reassemble stop body to
stop cap as shown
Loosen black thumbscrews
and slide stop body off of cap
Stop body
Stop cap
Expanded Clamping Mode
The two-piece design of the INCRA Shop Stop
permits use of a ¾” thick wooden auxiliary fence
without interfering with the stop’s ability to clamp
to your INCRA Fence. To change the stop to
expanded clamping mode, loosen the two black
thumbscrews and slide the stop body (red) off of the
stop cap (gold). Now slide the (2) rectangular nuts
on the stop body into the alternate T-slot on the cap,
Fig. 25. Tighten the two clamping knobs.
Standard Mode Expanded Mode
