Attach the Fence Cap Braces
Open the Wonder Fence Hi-Rise Fence
Hardware Pack A-09. Place a ¼” washer on each
of the (2) ¼-20 x
3
/8 button head screws and loosely
thread one screw into each of the (2) dual pilot
rectangular nuts. Place a ¼” washer on a ¼-20 x ½”
socket head screw and insert through the hole on the
front of each fence brace. Loosely thread the screw
into the remaining hole on the dual pilot rectangular
nut, Fig. 16. Repeat for the remaining fence brace
and dual pilot nut.
Slide the dual pilot nut on each fence brace
assembly into the T-slot located on the top of the
Pro II Fence. Use the forward T-slot located on the
TS Fence. Space the two braces 7
5
/8” apart on the
fence. Tighten all (4) fasteners, Fig. 17.
Open the Wonder Fence Brace Support Hardware
Pack A-10. Place a ¼” washer on each of the (2)
¼-20 x ½” socket head screws supplied and insert
through the slotted holes located on the support
brackets. Loosely thread on a ¼-20 rectangular nut,
then slide the nut into the T-slot located on the rear of
the Pro II Fence.
Position the support brackets directly under the fence
cap braces. Slide the support brackets up to firmly
contact the underside of the fence cap braces, then
tighten the socket head screws, Fig. 18.
Note: Support brackets are not required for use
on the TS Fence.
Slide the (2) rectangular nuts on each Wonder Fence
half into the T-slot located on the front face of the
Pro II, Fig. 14 or the TS Fence, Fig. 15. Position
the Wonder Fence halves so that your router collet
is centered in the opening between the fences, then
tighten the (2) socket head screws on each fence
half. Slide the view panel back in place and tighten
the thumbscrew.
INCRA LS Positioner Owner’s Manual 9

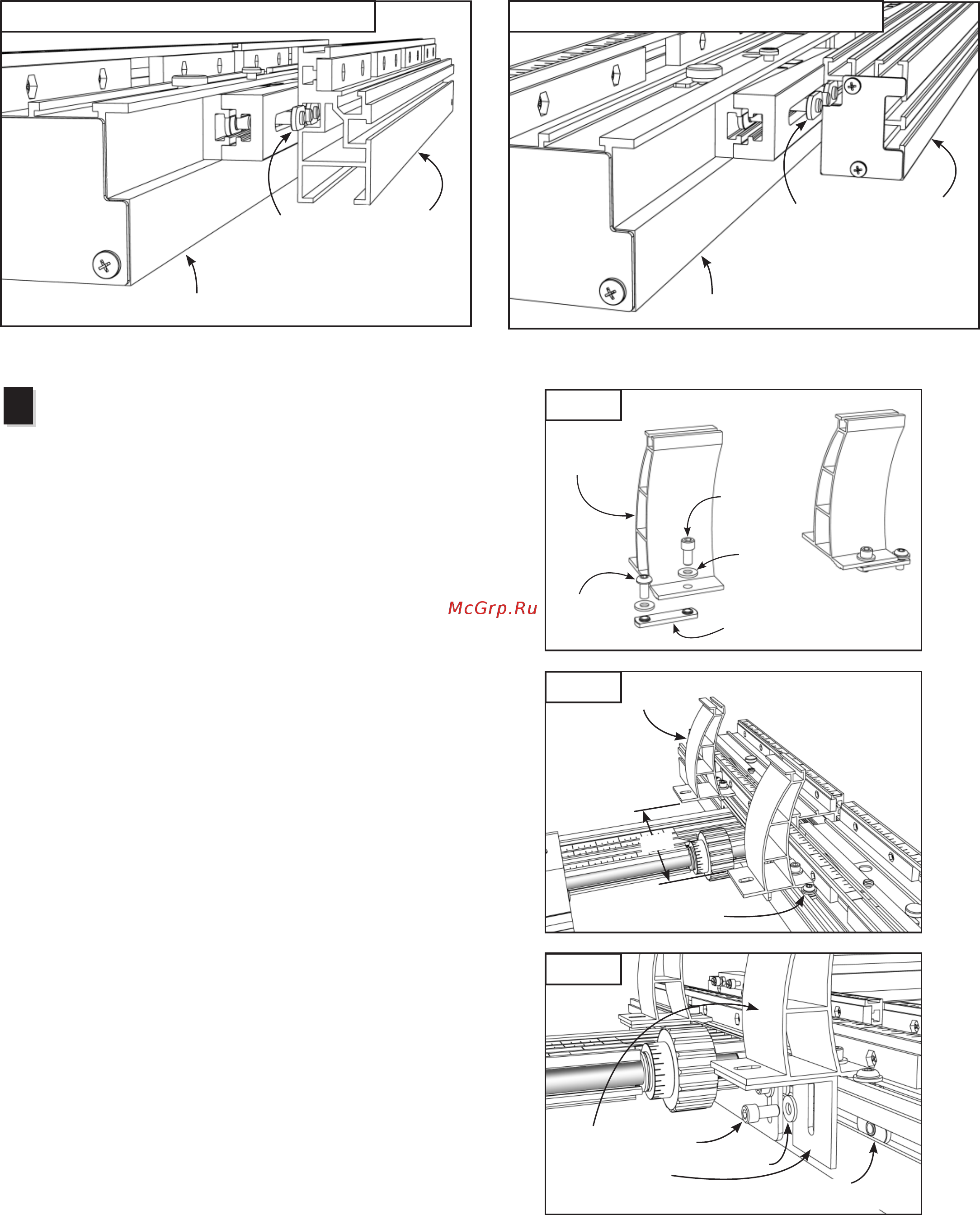

FIG. 14 Aaching Wonder Fence to the Pro II Fence
Pro II
Fence
Rectangular nuts
slide into T-slot
on front of Pro II
Fence
Wonder Fence
TS Fence
Rectangular nuts
slide into T-slot on
front of TS Fence
Wonder Fence
Fence cap
brace
¼-20 x
½” socket
head screw
¼” flat
washer
Dual pilot
rectangular nut
¼-20 x
3
/
8
”
buon head
screw
Fence cap
brace
Dual pilot rectangular
nuts captured in T-slot
7
5
/
8
”
Fence cap
brace
¼-20 x ½” socket
head screw
¼” flat
washer
¼-20 rectangular nuts captured in
T-slot in rear of Pro II Fence
Support
bracket
1
Attaching the Wonder Fence Hi-Rise Fence Cap
FIG. 15 Aaching Wonder Fence to the TS-LS Fence
FIG. 16
FIG. 17
FIG. 18
