12 INCRA Woodworking Tools & Precision Rules
Zeroing the Shop Stop
In order for your INCRA Shop Stop to
accurately locate your work piece for a
cut, you must first “zero” your Shop Stop
to the cutter and position the sliding scale
on your fence. For most applications at
the router table you will be using your
Shop Stop on the outfeed fence to limit
the length of a cut relative to the front end
of a board. Follow the steps detailed in
Fig. 26 to zero to your cutter.
Once the Shop Stop is zeroed to the
router bit as shown in Fig. 26, you now
have the choice of setting the sliding
scale on your INCRA Fence to one of
three initial positions. See Fig. 27 and
Detail 27A.

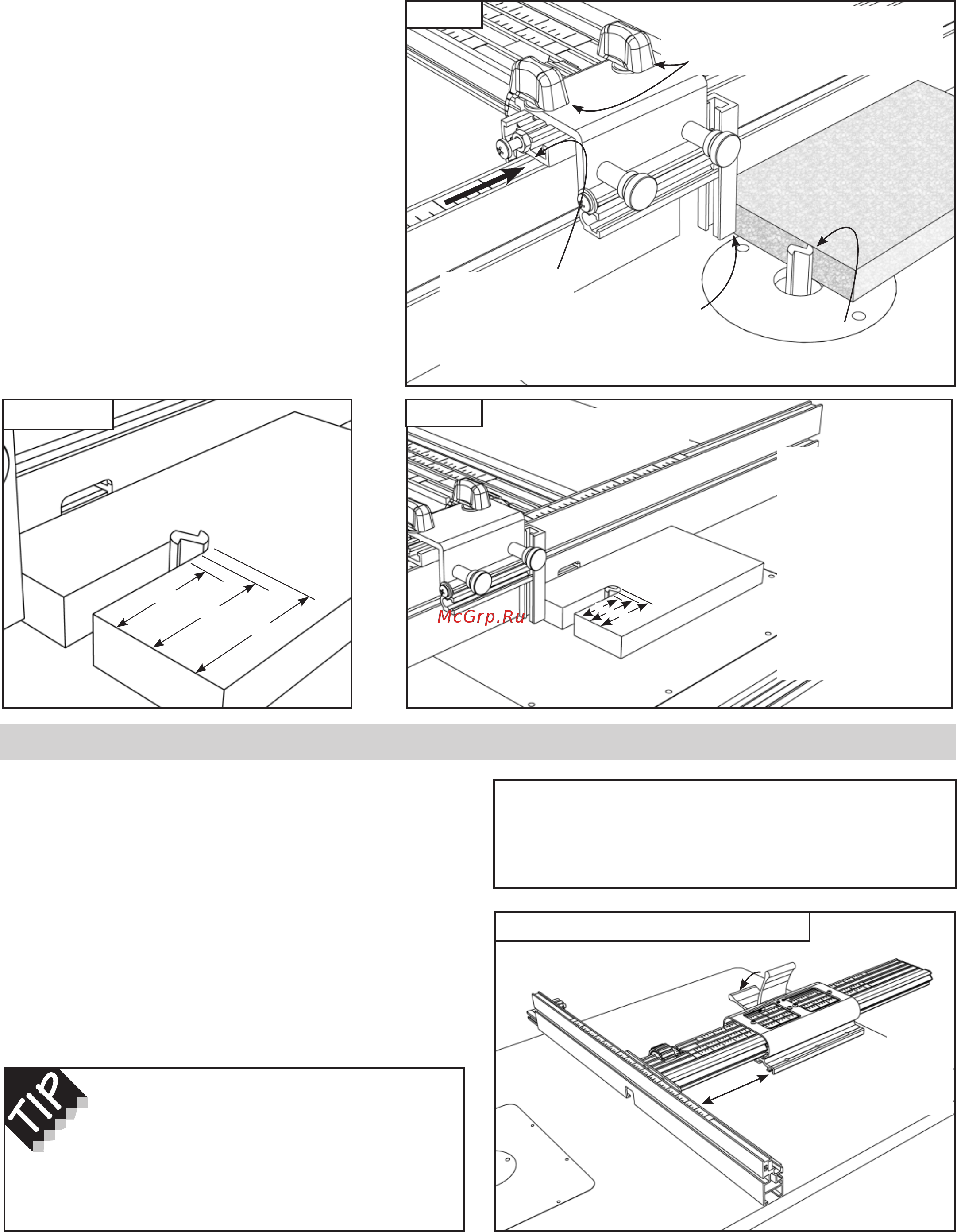

FIG. 26
Fourth: Slide scale
to read directly
under end of stop
cap. Use one of the
initial scale seings
from Fig. 27
Second: Clamp Shop Stop
to fence with the vertical
stop arm as close as
possible to the board
First: Slide square cut
board to contact “high
spot” on the router bit
Third: Loosen black thumbscrews
1
/
8
turn
and micro adjust until stop arm touches
end of board. Retighten thumbscrews.
FIG. 27
Slide scale on fence to one of
three initial positions
A: Slide scale to 0” for
a direct readout of
dimension “A”
(Total length of cut)
B: Slide scale to “minus
½ of bit diameter”
for direct readout of
dimension “B”
C: Slide scale to “minus
bit diameter” for direct
readout of dimension “C”
C
B
A
OPERATION
Moving to a New Scale Setting
Moving the fence to any new scale setting is just
as easy as moving any other fence you’ve used
before. Push the carriage clamp down to unlock
the carriage, then slide the fence as you sight
through the hairline cursor. When you see your
measurement under the hairline cursor, pull the
clamp up to the locked position, Fig. 28. Remember
that the LS Positioner will only clamp every
1
/32” or
1mm with the metric version, so don’t try to clamp in
between scale marks. It just won’t work!
Although the clamping pressure has been
factory adjusted, you may wish to fine-
tune the pressure to suit your individual
feel. If so, use the thin plastic shims provided
and follow the instructions beginning on page 14.
FIG. 28 Moving to any new scale seing
First: Unlock carriage clamp
Second: Slide fence as
you view scale through
hairline cursor
Third:
Return
clamp to
upright
“locked”
position
CAUTION: For your safety, keep your hands
behind the fence when moving to any new
scale setting.
