Incra M-LS17WFNCSYS [16/16] Warranty
![Incra M-LS17WFNCSYS [16/16] Warranty](/views2/1628291/page16/bg10.png)
Made in America by:
Taylor Design Group, Inc.
P.O. Box 810262
Dallas, Texas 75381
Tel: (972) 242-9975
Fax: (972) 243-4277
Web Site: www.incra.com
Printed in the U.S.A. © 2010 Taylor Design Group, Inc. INCRA is a registered trademark of Taylor Design Group, Inc.
WARRANTY
Taylor Design Group, Inc. warrants this product for one year from date of purchase. We will repair any defects
due to faulty material or workmanship, or at our option, replace the product free of charge. Please return the
failing component only, postage prepaid, along with a description of the problem to the address below. This
warranty does not apply to parts which have been subjected to improper use, alteration, or abuse.
02/05
Positioning the Auto Centering
Scale (Imperial Model Only)
Install the router bit recommended for the
selected joint pattern and set the depth of cut
as described on pages 2-3 of the INCRA Master
Reference Guide & Template Library.
Zero the fence to your cutter with the router bit
behind the fence rather than in front. To do this,
slide your fence to cover the router bit (the bit should
be inside the notch just slightly behind the front face
of the fence) and place your jig in the micro adjust
mode. Place a straight board against the fence and
micro adjust the fence position until you see the
router bit just barely touching the board, Fig 37. Pull
the carriage clamp up to lock your jig.
Slide the INCRA Auto Centering Scale into one
of the scale slots. You’ll notice on the right end
of the scale the words “Router Bit Diameter” and an
arrow pointing to the following numbers:
1
⁄8,
1
⁄4,
3
⁄8,
1
⁄2,
5
⁄8,
3
⁄4,
7
⁄8, 1. Slide the scale to position the
number that matches your router bit diameter directly
under the hairline cursor. Fig. 38
Using the Auto Centering Scale
Unlock and slide the fence until you see the
dimension on the scale that matches your selected
stock width directly under the hairline cursor. Lock
the fence in place. Example: If you are centering on
a 6” wide board, slide your fence until you see the 6”
mark on the Auto Centering Scale under the cursor
and lock the jig in place. Now slide your joinery
template into one of the scale slots, position the
suggested center cut mark directly under the hairline
cursor and you are ready to cut the joint.

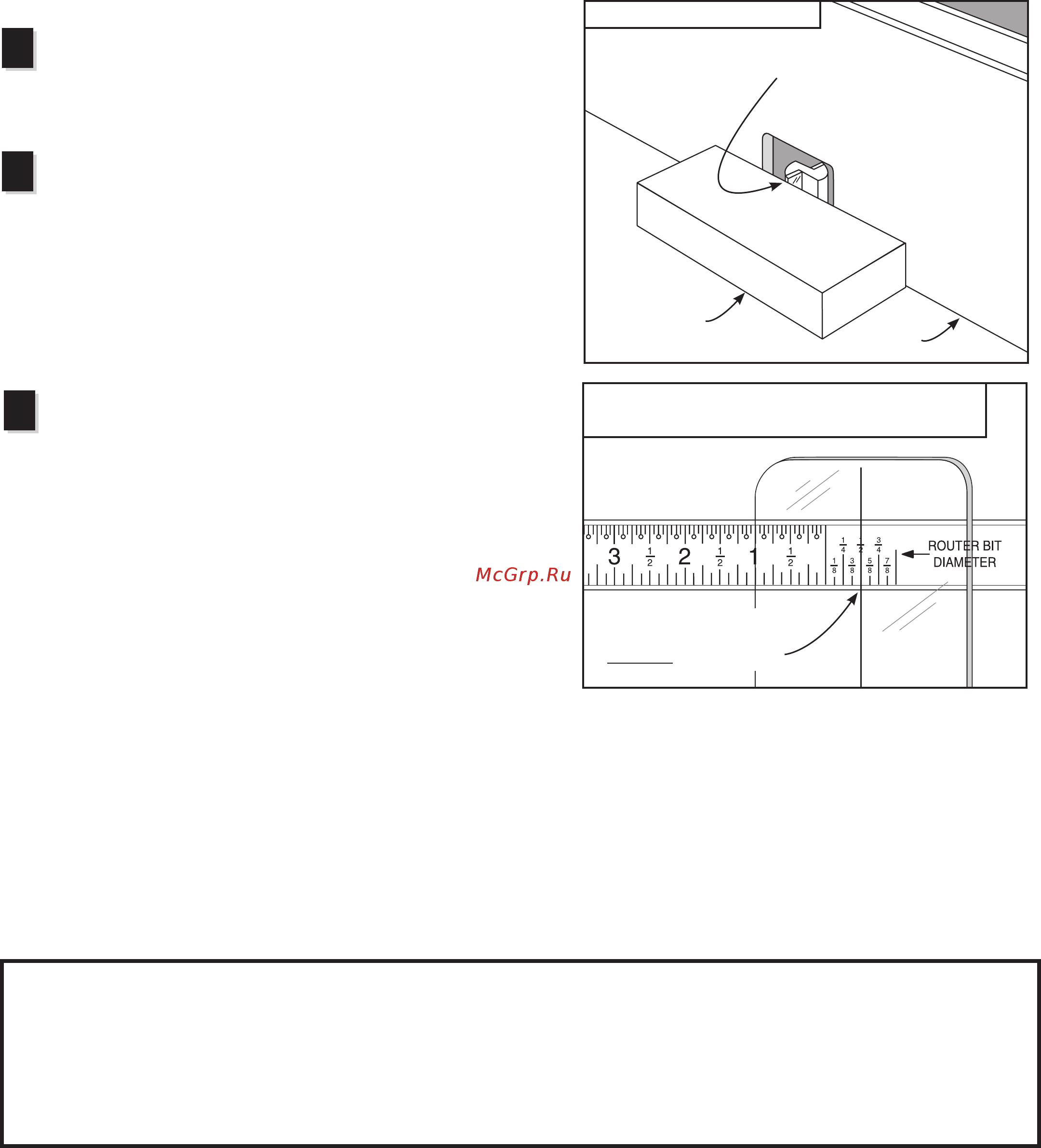

FIG. 37 Zero fence to cuer
FIG. 38
Position Auto Centering Scale under hairline cursor
Board pressed
against fence
Micro adjust fence until
router bit just touches
piece of wood
Fence
Slide mark that
matches your bit
diameter under cursor
1
2
3
Note: Your Auto Centering Scale has marks
on the top edge that are closer together
than the marks on the bottom edge. When
reading the scale, each mark along the top
represents
1
⁄16” of board width. Each mark
along the bottom edge represents
1
⁄8” of
board width.
16 INCRA Woodworking Tools & Precision Rules
