INCRA LS Positioner Owner’s Manual 5
Fence Mounting Bracket
This heavy steel bracket provides a quick and easy
means to attach the Pro II Fence, the Wonder Fence,
or the TS table saw fence.
Micro Adjust Knob
With the carriage clamp in the micro adjust position,
use this knob to fine-tune the location of your fence
in
1
/1000” increments (1/40mm for metric version.)
Ball bearing engaged detents on the knob provide an
audible click for each
1
/1000” (1/20mm) of adjustment.
The pointer and easy to read scale give a clear
readout of your fence movement. Turning the knob
clockwise moves the fence closer to the cutter. Turn
it counterclockwise and the fence moves away from
the cutter. Each full turn of the knob moves the fence
1
/32” or 1mm for the metric version.
Micro Adjust Scale Dial
This laser engraved dial provides a clear reference
for micro adjustments. Each mark on the dial
represents
1
/1000” (1/40mm for metric version.) After
micro adjusting, the dial can be re-zeroed to the
pointer for future adjustments.

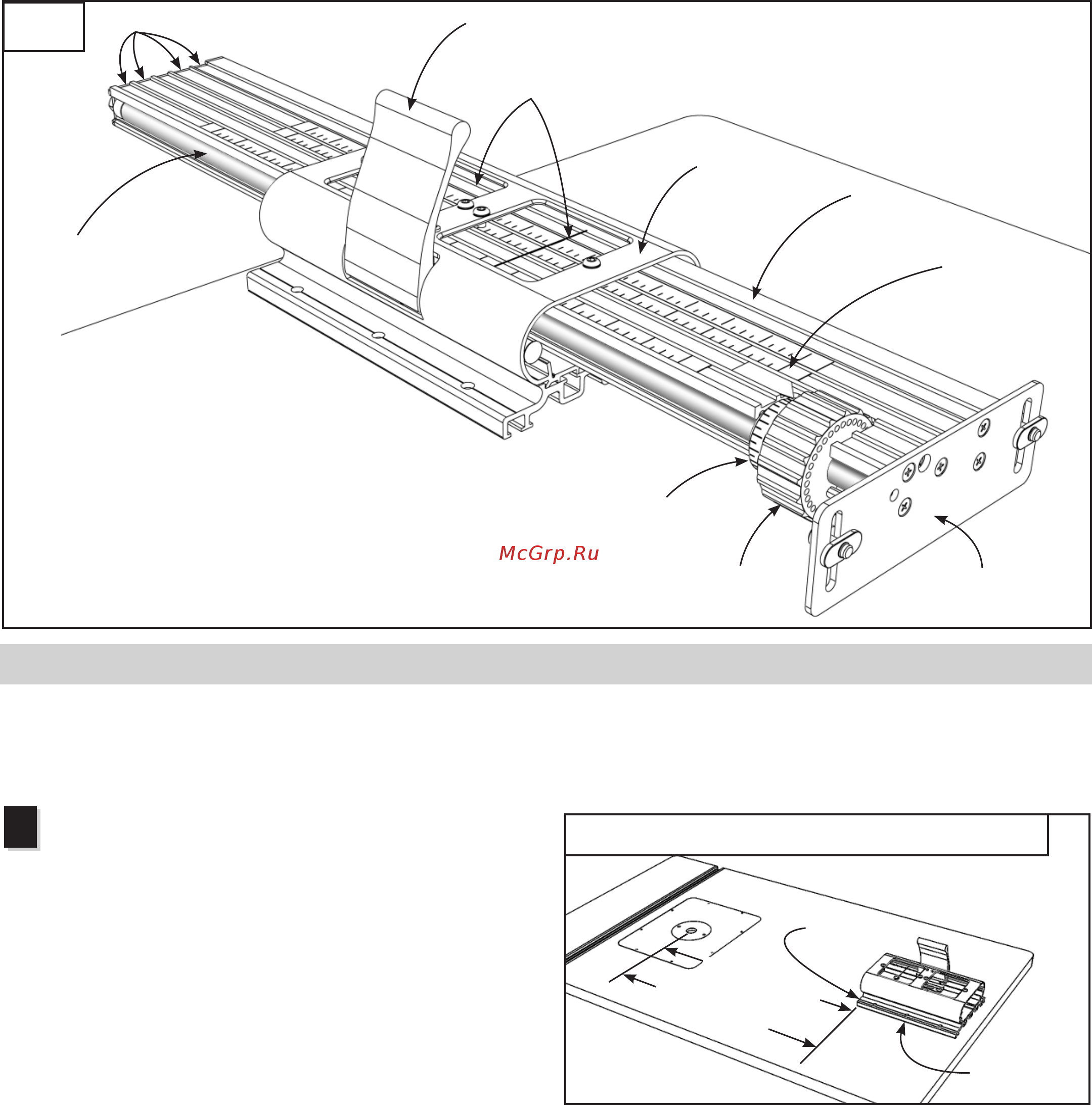

FIG. 1
SETUP - MOUNTING TO YOUR ROUTER TABLE
Note: If you are setting up a table saw-based LS,
read the Getting Acquainted and Operations section
of this manual, then follow the instructions in the
TS-LS owner’s manual.
Drill Mounting Holes
Unlock the carriage clamp and carefully remove
the carriage from the LS base. For maximum access
to fence system range, locate the leading edge of
the LS base the following distance from the center
of your router collet: 19¾” for the 17” (430mm)
range model or 27¾” for the 25” range model, Fig. 2.
Center the LS Base across the width of your table. If
you have a router table top that is not long enough to
handle the full range of your LS Positioner, see the
Tip on page 6 for an easy way to extend your table
dimensions.
Note: While it is permissible to allow some of the
LS Base to overhang the table, a minimum of 4” of
the LS Base must be overlapped onto the table for
secure mounting.
1
FIG. 2 Locate leading edge of LS Base on your router table
19¾” (17” model)
27¾” (25” model)
Leading Edge
LS Base
