ENGLISHen
20

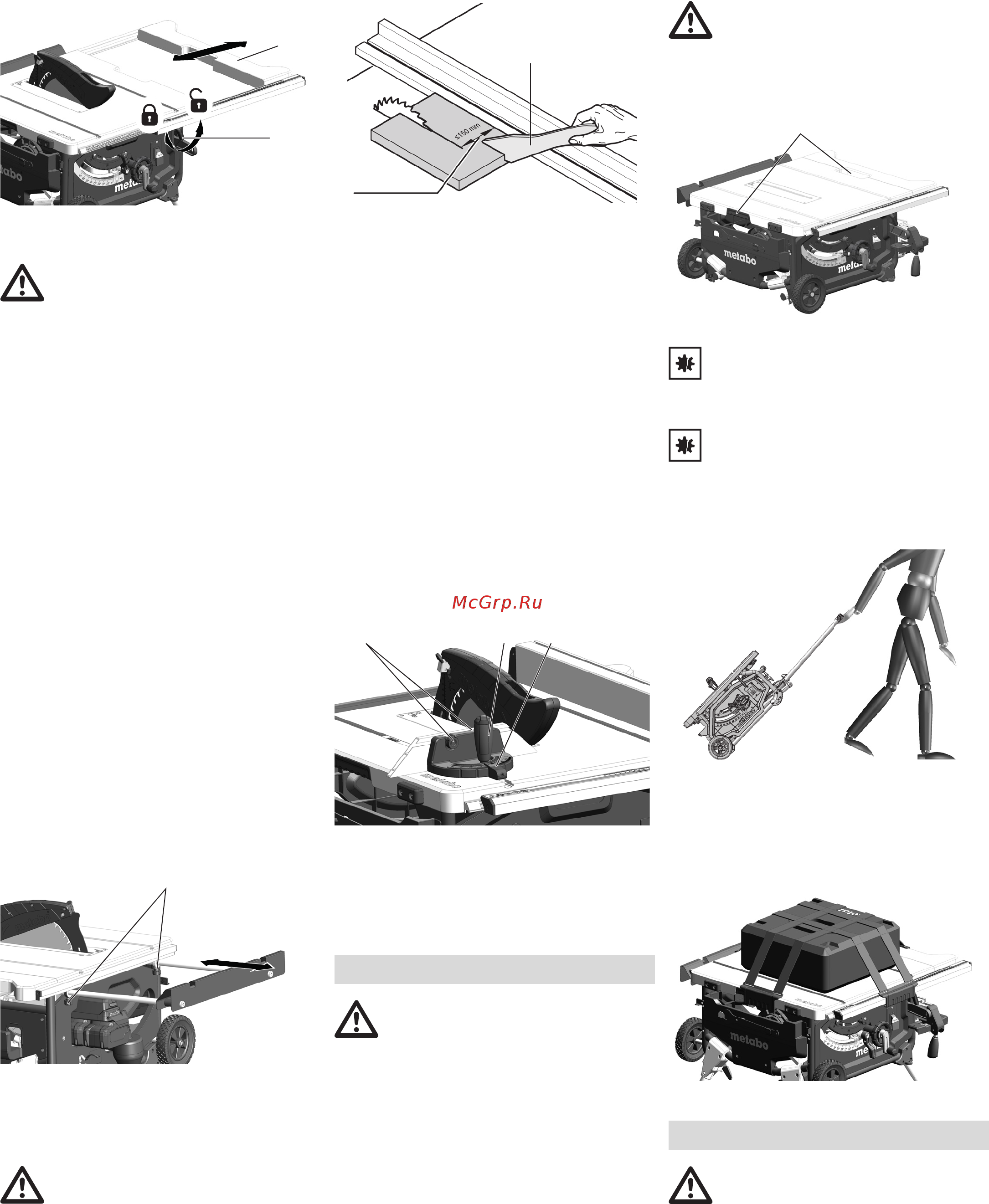

The clamping lever (12) has to be released to
adjust the table width extension (9).
Risk of injury!
When cutting with the mitre fence the handle
must be firmly tightened.
Scale reading when using the ripping fence
On which scale the cutting width is read depends
on how the fence extrusion is installed on the
ripping fence:
– Wide edge =
scale with black numerals on white background.
–Small edge=
scale with white numerals on black background.
For small cutting widths the table side extension
is not extended. The cuttings width is read on the
respective right-hand scale at the ripping fence's
pointer:
– High edge: Cutting widths from 0 to 35 cm
possible.
– Low edge: Cutting widths from 0 to 29.5 cm
possible.
If larger workpieces are to be cut, the table width
extension (12) needs to be extended.
1. Shift ripping fence to the end position on the
scale.
2. Pull out table side extension and set ripping
fence to desired cutting width. The cuttings
width is read on the respective left-hand scale
at the scale's pointer.
8.8 Adjusting table extension
The table length extension (1) extends the
supporting surface, providing safe support for
longer workpieces.
1. To pull out the table length extension, both
knurled screws (47) must be released.
2. Withdraw table length extension and set to
desired distance.
3. Retighten both knurled screws.
8.9 Sawing
Danger!
Always use push stick if distance between
saw blade and ripping fence is less than
150 mm.
Straight cut
1. Set blade tilt and lock in position.
2. Set depth of cut. The blade guard must rest
with its front edge on the workpiece.
3. With the saw blade inclined, fix the parallel
guide to the left of the saw blade and set it.
4. Start saw.
5. Push the workpiece in a steady motion
towards the rear and cut in a single pass.
6. Switch the machine off if no further cutting is to
be done immediately afterwards.
Mitre cuts
1. The mitre fence (7) is inserted into the table
slot from the table’s front edge.
2. Set desired angle after loosening the mitre
fence's clamping handle (6) and retighten
clamping handle.
3. Adjust lateral distance between auxiliary fence
and saw blade:
Release knurled nut (46) and move auxiliary
fence as required.
Tighten knurled nut (46).
4. Hold the workpiece firmly against mitre fence.
5. Cut the workpiece by pushing the mitre fence
forward.
6. Switch the machine off if no further cutting is to
be done immediately afterwards.
Danger!
Before every transport:
switch machine OFF;
wait for saw blade to come to standstill.
Remove battery pack.
Remove attached parts (blade guard, chip
suction, separating cyclone, dust bag). Store
blade guard at table saw housing.
Bring splitting wedge into transport position.
Proceed as described in chapter 7.1, but move
the splitting wedge (3) down to the limit stop
(transport position).
Lower saw blade fully.
Set saw blade inclination angle to 0° and lock
with clamping lever.
Raise tool on frame and swing to the rear. Set
up machine on its edge and fold in upper legs.
The red swivel levers must engage again.
Swing machine to the rear and fold in the lower
legs. The red swivel levers must engage again.
Push in handles and set down machine.
Danger of crushing
Push in both table width extensions fully and
lock with the clamping levers.
Use the side handles (48) at the table to carry the
machine.
Caution!
Do not carry the machine at the guards, table
width extensions that are extended / not
locked, or operating elements!
Caution!
Carry the machine with two persons (weight)!
Mobile transport:
Pull out handle, turn it and engage it.
Pull or push saw with handle
Special case: Transport machine together with
MetaLoc.
The box can be placed on the table top and
fastened with the special belts, as shown, for
transporting.
Danger!
Prior to all servicing:
1.switch machine OFF;
2.Wait until the saw has come to a complete
stop.
3.Remove battery pack.
– Check to see that all safety devices are
operational again after each service.
– Replace defective parts, especially of safety
devices, only with genuine replacement parts.
Parts not tested and approved by the
manufacturer can cause unforeseen damage.
9
12
47
9. Transport
13
̞ʸʼʷÃÃ
646 7
10. Care And Maintenance
48
