ENGLISH en
21
– Repair and maintenance work other than
described in this section should only be carried
out by qualified specialists.
Danger!
With a damaged table insert there is a risk of
small parts getting stuck between table insert
and saw blade, blocking the saw blade.
Replace damaged table inserts immediately!

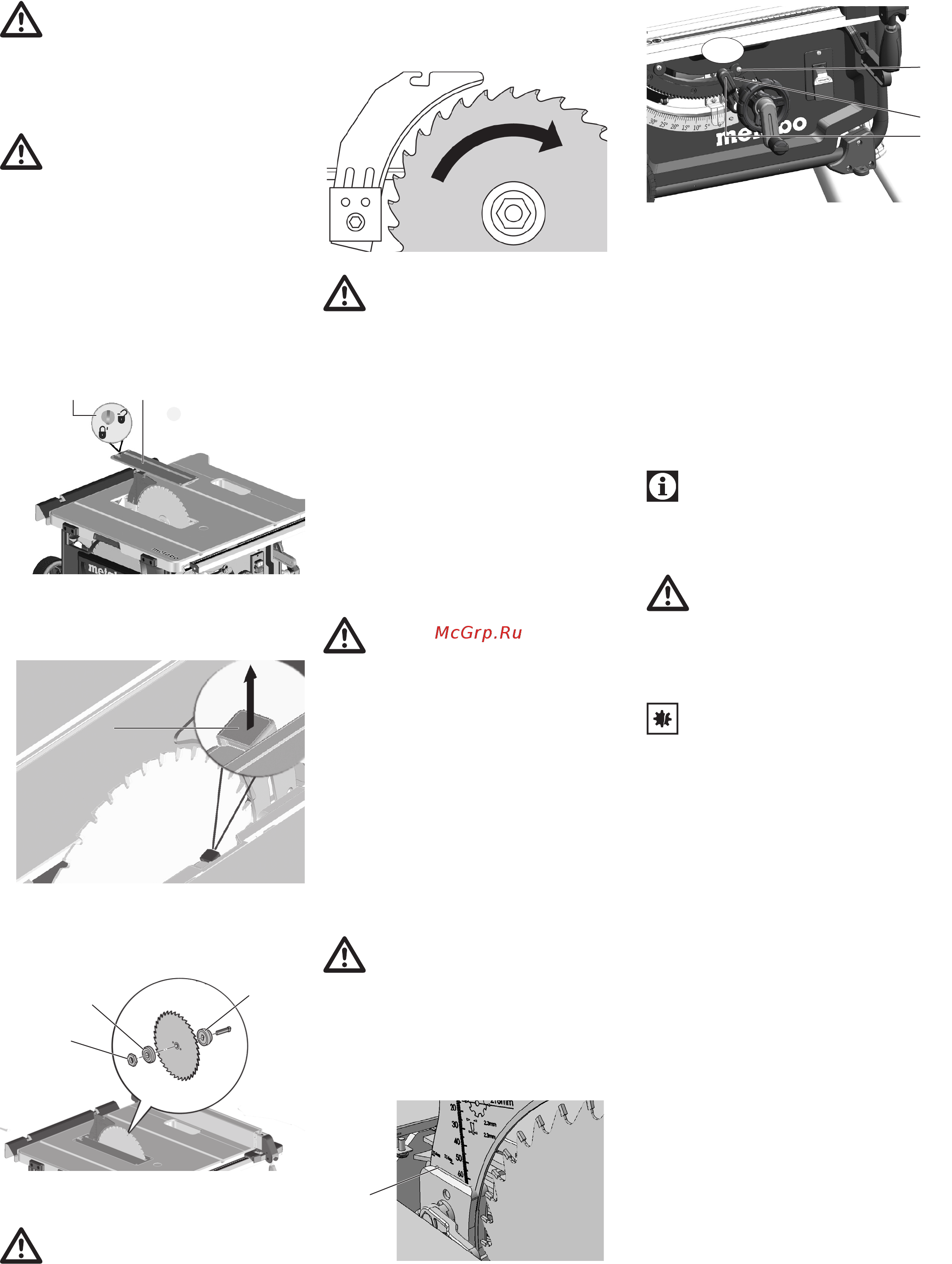

10.1 Saw blade change
Danger!
Directly after cutting the saw blade can be
very hot – burning hazard! Let a hot saw
blade cool down. Do not clean the saw blade
with combustible liquids.
Risk of injury, even with the blade at
standstill. Wear gloves when changing
blades.
When fitting a saw blade, observe the
direction of rotation!
1. Raise saw blade fully.
2. Remove blade guard (5).
3. Turn screw (40) anti-clockwise, lift table insert
(2) and remove.
4. Turn the clamping nut (50) of the saw blade
using an open-jawed spanner (20) and, at the
same time, pull the lever of the saw blade lock
(49) upwards , until it engages.
5. Hold the lever (49) firmly in position and
unscrews the clamping nut (50) clockwise.
6. Remove clamping nut (50), outer blade flange
(51) and saw blade from saw spindle.
7. Clean clamping surfaces of saw blade flange
(51) and (52) and saw blade.
Danger!
Do not use cleaning agents (e.g. to remove
resin residue) that could corrode the light
metal components of the saw; the stability of
the saw would be adversely affected.
8. Push inner saw blade flange (52) onto motor
shaft.
9. Put on a new saw blade (observe direction of
rotation!).
Danger!
Use only saw blades conforming to the
technical specifications stated and to
EN 847-1 – if unsuitable or damaged saw
blades parts are used, parts can be ejected
due to centrifugal force in an explosive-type
manner.
Do not use:
– saw blades which permissible maximum
speed is below the rated no-load speed of
the saw spindle (see “Technical Specifi-
cations”);
– saw blades made of high speed steel (HS
or HSS);
– Do not use any saw blades which have a
smaller cutting width or a thicker saw
blade body than the thickness of the
splitting wedge.
– Saw blades with visible damage;
– cut-off wheel blades.
Danger!
– Mount saw blade using only genuine
parts.
– Do not use loose-fitting reducing rings;
the saw blade could work loose.
– Saw blades have to be mounted in such
way that they do not wobble or run out of
balance and cannot work loose during
operation.
10.Slide on outer blade flange (51).
11.Screw on clamping nut (50) (left-handed
thread!). Turn clamping nut (50) with open-
jawed spanner (20) and, at the same time,
pull the lever of the saw blade lock (49)
upwards until it engages.
12.Hold lever (49) firmly in position and tighten
clamping nut hand-tight by turning anti-
clockwise.
Danger!
– Do not extend arbour bolt tightening
wrench.
– Do not tighten arbour bolt by hitting the
wrench.
13.Adjust the splitting wedge according to the
saw blade size (53).
(for splitting wedge setting, see 7.1)
14.Fasten table insert (2) and lock with screw
(40).
15.Attach blade guard (5).
10.2 Adjusting the blade tilt stop
1. Set the blade tilt stop lever (19) for the angle
range to 0° / 45°.
2. Lock the set angle of inclination by tightening
the clamping lever (18).
3. Check angle of inclination:
– 0° = at right angles to the saw table
– 45° with separate mitre square.
If these angles are not achieved exactly:
4. Release cross-head screw (54) at respective
cam disc and adjust cam plate until the blade
bevel angle in relation to the saw table is
exactly 0°,
(= right angles), or 45°, in the end positions.
5. Retighten cross-head screw at cam plate.
6. After adjusting the stop limitation, readjust
angle scale at front side if necessary.
Note:
To set the angle limit from -1.5° to 46.5°, the
angle limit stop (19) must be removed.
10.3 Machine storage
Danger!
Store the machine beyond the reach of
children. Store the machine such that it
cannot be put into operation by unauthorised
personnel and such that the stationary
machine cannot cause injury.
Caution!
Do not store the saw outdoors, in
unprotected areas or in damp or wet
locations.
10.4 Maintenance
Cleaning the Saw
Remove chips and dust with vacuum cleaner
and brush:
– from saw blade setting guide elements;
–from motor vent slots;
–chip case.
–Height adjustment
–Swivel guide
– Separating cyclone
Before switching ON
Visual check to see if
– Blade – splitting wedge distance 3 to 5 mm.
– Splitting wedge is in line with saw blade.
Visual check that the battery pack adapter is not
damaged; have defective parts replaced by an
electrician if necessary.
Every time the machine is switched off
Check whether the saw blade overrun exceeds
10 seconds; if the overrun is longer than this,
have the motor replaced by a qualified electrician.
Monthly (if used daily)
Remove chips with vacuum cleaner and brush;
lightly oil guide elements:
– Threaded rod and guide rods of blade rise and
fall mechanism;
–Swivel segments.
Every 150 hours of operation
Check all screwed joints, retighten if necessary.
240
49
50
51
52
53
54
19
18
45°
