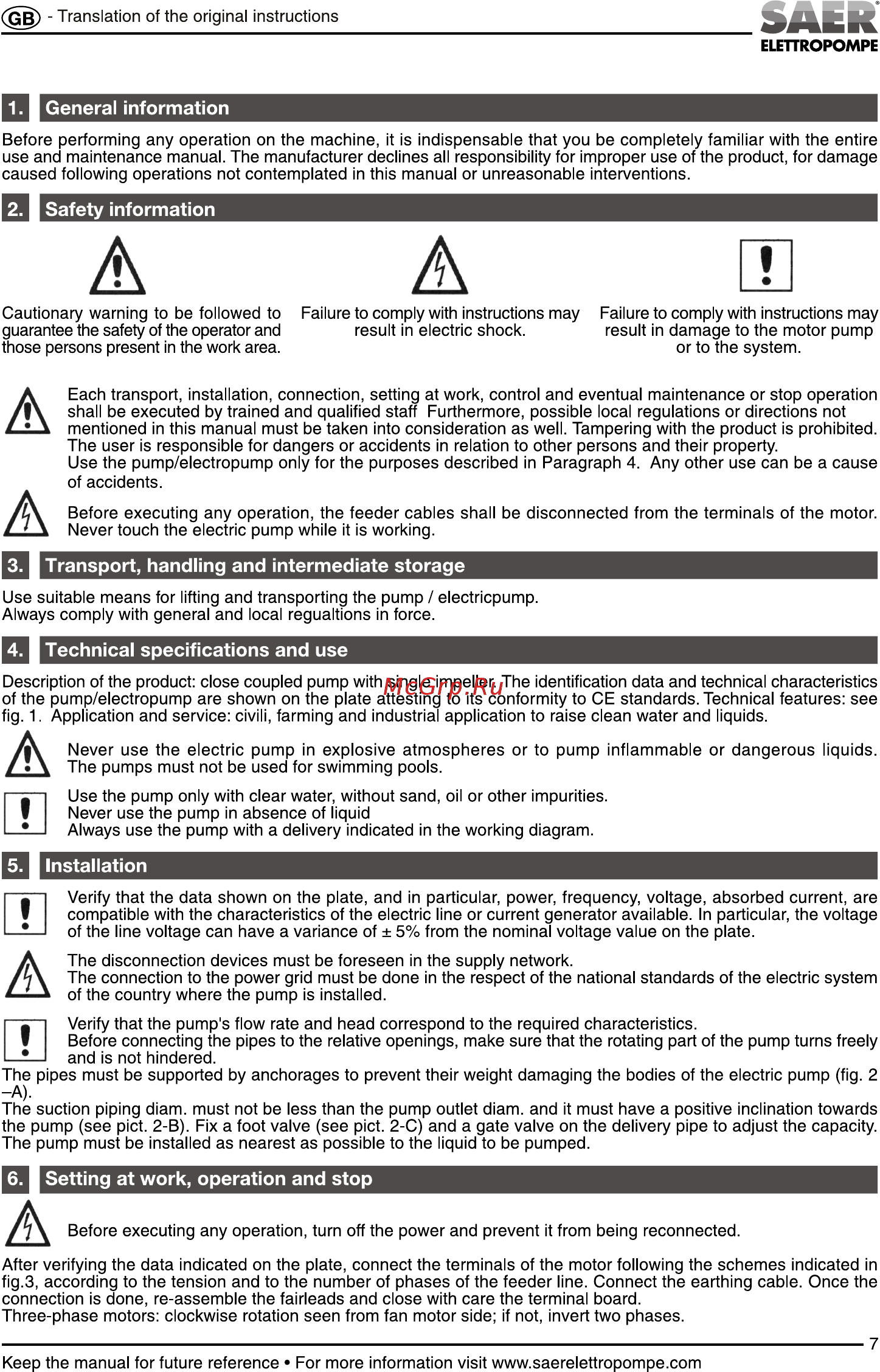

SAER jGB Translation of the original instructions ELETTROPOMPE General information Before performing any operation on the machine it is indispensable that you be completely familiar with the entire use and maintenance manual The manufacturer declines all responsibility for improper use of the product for damage caused following operations not contemplated in this manual or unreasonable interventions I 2 1 Safety information Cautionary warning to be followed to guarantee the safety of the operator and those persons present in the work area A Failure to comply with instructions may result in electric shock Failure to comply with instructions may result in damage to the motor pump or to the system Each transport installation connection setting at work control and eventual maintenance or stop operation shall be executed by trained and qualified staff Furthermore possible local regulations or directions not mentioned in this manual must be taken into consideration as well Tampering with the product is prohibited The user is responsible for dangers or accidents in relation to other persons and their property Use the pump electropump only for the purposes described in Paragraph 4 Any other use can be a cause of accidents Before executing any operation the feeder Never touch the electric pump while it is working cables shall be disconnected from the terminals of the motor El Transport handling and intermediate storage Use suitable means for lifting and transporting the pump electricpump Always comply with general and local regualtions in force Technical specifications and use Description of the product close coupled pump with single impeller The identification data and technical characteristics of the pump electropump are shown on the plate attesting to its conformity to CE standards Technical features see fig 1 Application and service civili farming and industrial application to raise clean water and liquids A Never use the electric pump in explosive atmospheres or to pump inflammable or dangerous liquids The pumps must not be used for swimming pools Use the pump only with clear water without sand oil or other impurities Never use the pump in absence of liquid Always use the pump with a delivery indicated in the working diagram Installation Verify that the data shown on the plate and in particular power frequency voltage compatible with the characteristics of the electric line or current generator available In of the line voltage can have a variance of 5 from the nominal voltage value on the plate absorbed current are particular the voltage The disconnection devices must be foreseen in the supply network The connection to the power grid must be done in the respect of the national standards of the electric system of the country where the pump is installed Verify that the pump s flow rate and head correspond to the required characteristics Before connecting the pipes to the relative openings make sure that the rotating part of the pump turns freely and is not hindered The pipes must be supported by anchorages to prevent their weight damaging the bodies of the electric pump fig 2 A The suction piping diam must not be less than the pump outlet diam and it must have a positive inclination towards the pump see pict 2 B Fix a foot valve see pict 2 C and a gate valve on the delivery pipe to adjust the capacity The pump must be installed as nearest as possible to the liquid to be pumped Setting at work operation and stop Before executing any operation turn off the power and prevent it from being reconnected After verifying the data indicated on the plate connect the terminals of the motor following the schemes indicated in fig 3 according to the tension and to the number of phases of the feeder line Connect the earthing cable Once the connection is done re assemble the fairleads and close with care the terminal board Three phase motors clockwise rotation seen from fan motor side if not invert two phases 7 Keep the manual for future reference For more information visit www saerelettropompe com
