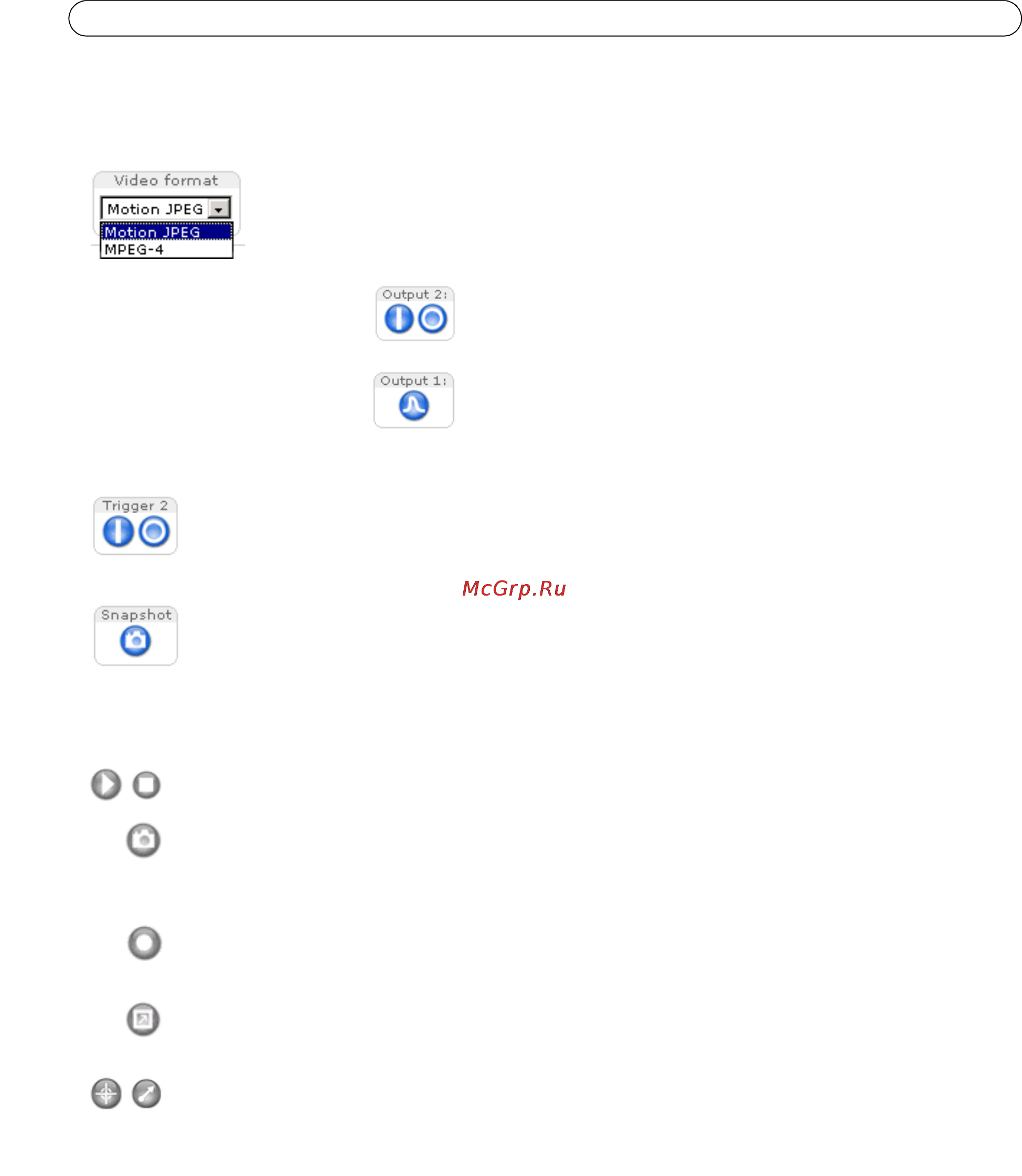

AXIS 212 PTZ/-V - The Live View Page
The Live View Page
Depending on whether or not the Live View page has been customized, the buttons described below may or may not be visible.
Note:
The snapshot function in MPEG-4 full screen mode will return the image view to the default live view page. Click the
View Full Screen button to return to Full Screen Mode.
The Video Format drop-down list allows the video format on the Live View page to be temporarily
changed.
The Action buttons can trigger an event directly from the Live View page. These are configured under Setup
> Live View Config > Layout.
The Snapshot button saves a snapshot of the video image currently being displayed. Right-click on the video
image to save it in JPEG format on your computer. This button is primarily intended for use when the AMC
viewer toolbar is not available.
The AMC (AXIS Media Control) viewer toolbar is only available for Microsoft Internet Explorer. It provides the following
buttons:
The Play/Stop button starts and stops the live video stream.
The Snapshot button saves a snapshot of the video image currently being displayed. The Snapshot function and
the target directory for saving snapshots can be configured from the AMC Control Applet in the Windows
Control Panel (Internet Explorer only).
The record button is used to record the current (MPEG-4) video stream. The location where the image file is
saved can be specified using the AMC control panel. To enable recording, Select Live View Config > Viewer
Settings > Enable recording button.
Click the View Full Screen button to make the video image fill the entire screen area. No other windows will be
visible. Press Esc (Escape) on the computer keyboard to exit full screen.
These buttons change the navigation mode. Selecting Center will move the camera view to center on the
position that was clicked. Joystick mode will move the camera in the direction indicated by a mouse click,
relative to the center of the image. The further from the center the image is clicked, the greater the movement.
These modes can also be selected by right-clicking in the image.
The Output buttons control the
output directly from the Live View
page. These buttons are configured
under Setup > Live View Config >
Layout.
Pulse - click this button to activate the output for a defined period of
time, for example, to switch on a light for 20 seconds.
Active/Inactive - click these buttons to manually start and stop a
connected device, for example, switch a light on/off.
