AXIS 212 PTZ/-V - The Live View Page
Pan/Tilt/Zoom controls

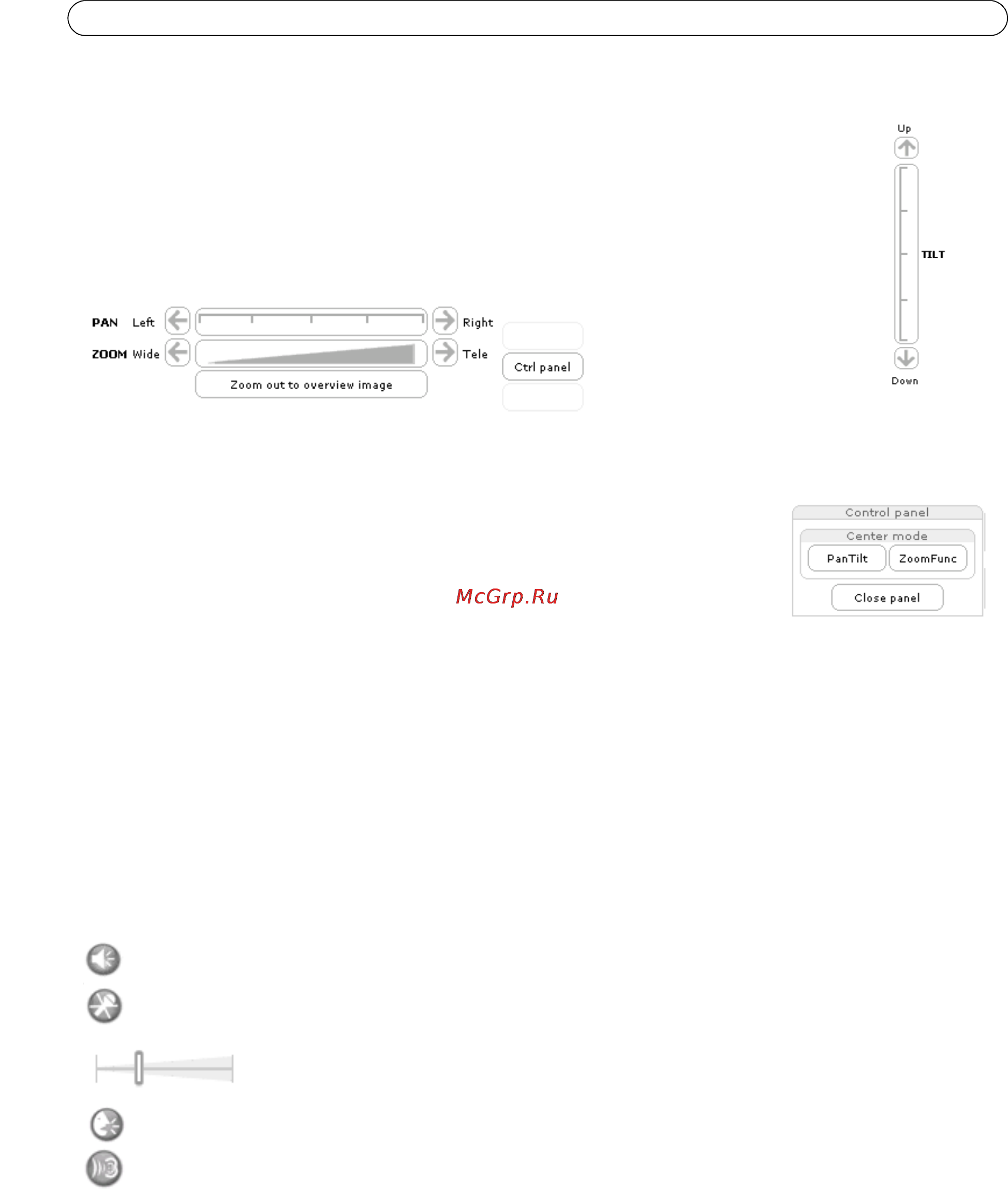

AXIS 212 PTZ/-V can be controlled by clicking in the image, or by clicking on the Pan/Tilt/Zoom bars on the
Live View page. These are enabled/disabled for specified users by the administrator under System Options >
Security > Users > User List.
Zoom out to overview image will set the camera to the minimum zoom position. Note that when in this
position, the camera cannot pan or tilt.
The control panel
Click the Ctrl panel button to display the control panel. The panel provides buttons for
switching between PanTilt and ZoomFunc when in Center mode. This controls whether the
camera should pan/tilt to the position in the image that was clicked. or whether it should zoom
directly in on that point.
The Control panel can also show your own shortcut buttons, which are configured from Setup >
PTZ Configuration > Advanced.
Note:
The scroll wheel on the mouse can also be used to control the zoom.
AMC audio controls
AXIS 212 PTZ/-V can transmit audio to clients using either the built-in microphone or a connected external microphone and
can play audio received from clients via a connected speaker. There are audio controls for controlling the microphone and the
client computer’s speaker output. These controls are only available when audio is enabled, see AXIS Media Control, on page 9
and Audio Settings, on page 19. See also the AMC User’s Manual for more information at:
http://www.axis.com/techsup/software/amc/
Note:
External microphones and speakers are optional items and are not included with the product.
Click the Speaker and Microphone buttons to switch the sound off and on for the speaker and microphone,
respectively.
Use the sliders to control the volume on the speaker and microphone. The volume can be set between
0 and 100.
When using Half-duplex mode, this button toggles between allowing you to speak and listen. The first icon indicates
that you can talk and the speaker connected to the camera will play your voice. The second indicates that you will
hear audio from the camera.
Simplex - Network Camera speaker only - the speaker connected to AXIS 212 PTZ/-V will play audio transmitted
from any web client. This mode requires you to use the push to talk button.
Simplex - Network Camera microphone only - transmits audio from AXIS 212 PTZ/-V to any web clients. This can be used in
remote monitoring, web attractions etc., to provide live audio from a monitored situation.
