Daikin EUWAC8FZW [14/26] Dimensional drawing centre of gravity
![Daikin EUWAC8FZW [14/26] Dimensional drawing centre of gravity](/views2/1657182/page14/bge.png)
3
1
7
• Applied Systems • Chillers
15
• Chillers • R-407C • EUWAC-FZW

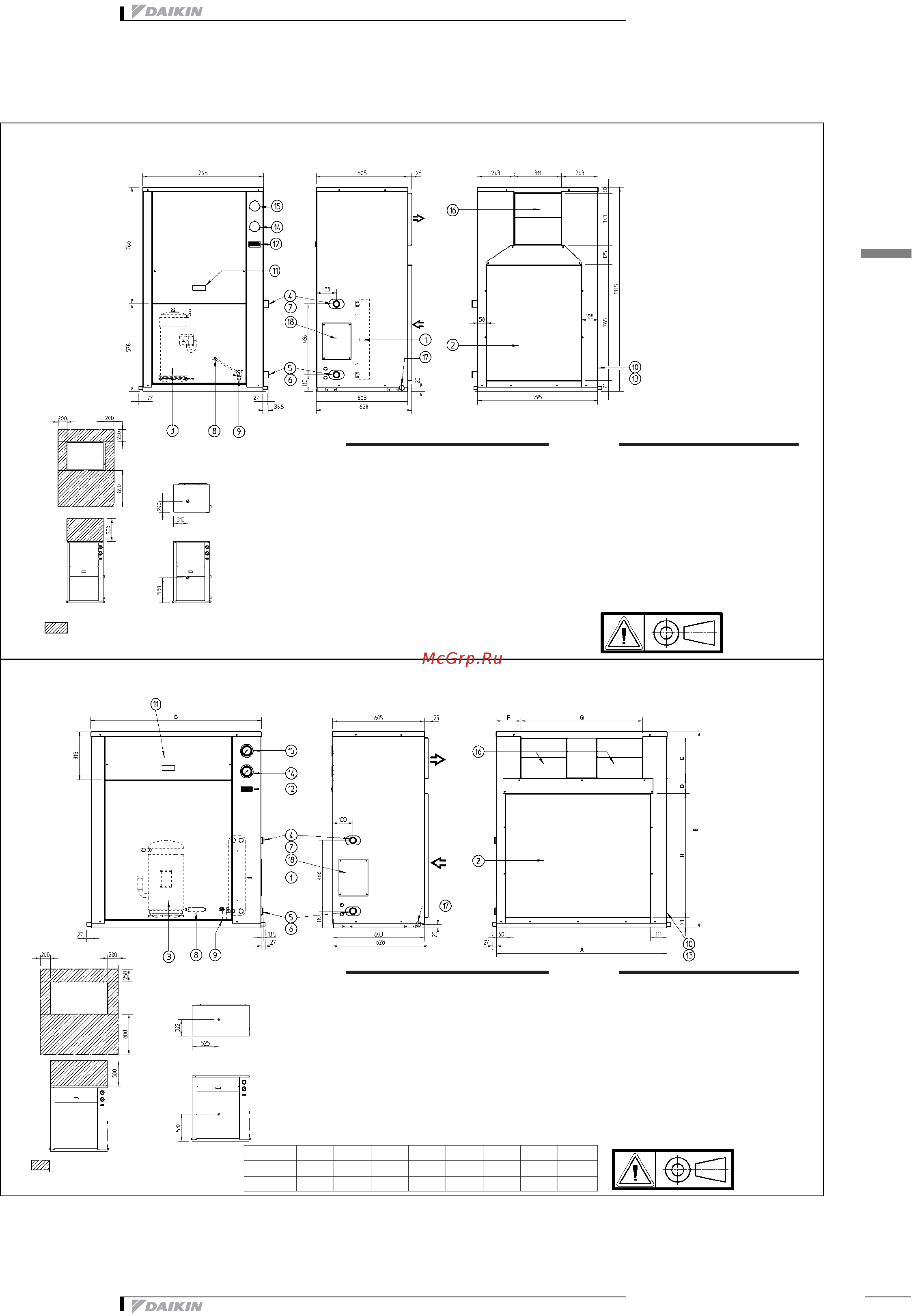

7 Dimensional drawing & centre of gravity
7 - 1 Dimensional drawing
3TW55054-1B
EUWAC5FZW
1 Evaporator
2 Condensor
3 Compressor
4 Chilled water in (FBSP 1″)
5 Chilled water out (FBSP 1″)
6 Leaving water temperature sensor
7 Entering water temperature sensor
8 Filter
9 Expansion valve
10 Power supply intake
11 Switch box
12 Digital display controller
13 Field wiring intake
14 Low pressure gauge
15 High pressure gauge
16 Fan
17 Drain pipe (J25)
18 Service plate
Required space around the unit for service
and air intake
Center of gravity
Air
Air
3TW55064-1B
EUWAC8-10FZW
1 Evaporator
2 Condensor
3 Compressor
4 Chilled water in (FBSP 1″)
5 Chilled water out (FBSP 1″)
6 Leaving water temperature sensor
7 Entering water temperature sensor
8 Filter
9 Expansion valve
10 Power supply intake
11 Switch box
12 Digital display controller
13 Field wiring intake
14 Low pressure gauge
15 High pressure gauge
16 Fan
17 Drain pipe (J25)
18 Service plate
Required space around the unit for
service and air intake
Center of gravity
Air
Item A B C D E F G H
8HP 1122 1290 1125 98 267 163 800 815
10HP 1272 1395 1275 127 292 170 936 857
Air
