Daikin EUWAC8FZW [15/26] Piping diagram
![Daikin EUWAC8FZW [15/26] Piping diagram](/views2/1657182/page15/bgf.png)
• Chillers • R-407C • EUWAC-FZW
1
8
• Applied Systems • Chillers
16

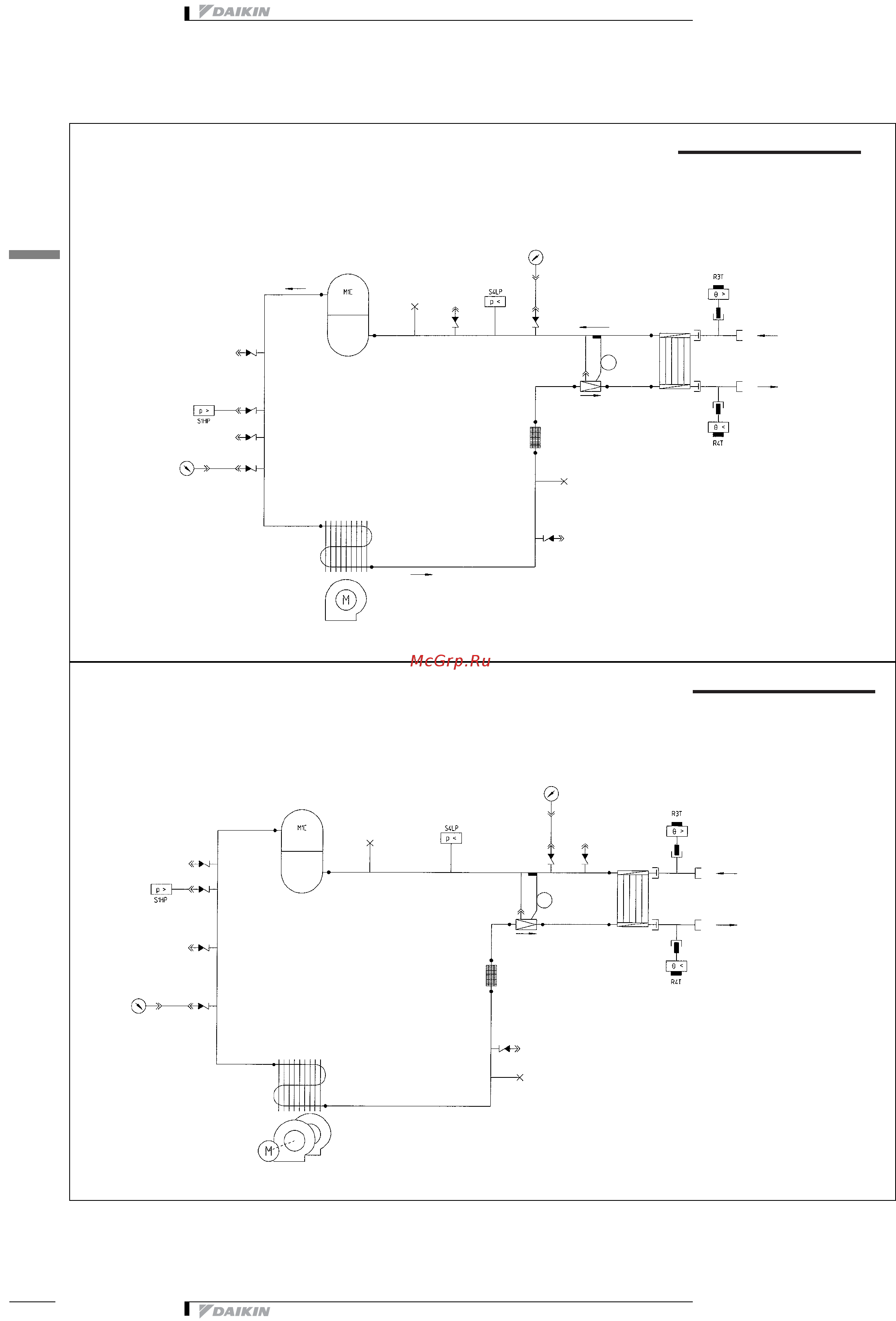

8 Piping diagram
3TW55055-1A
EUWAC5FZW
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
P Spinned pipe
M1C Compressor
S1HP High pressure switch
R3T Water inlet temp. sensor
R4T Water outlet temp. sensor
S4LP Low pressure switch
M11F Condenser fan motor
Low pressure gauge
High pressure
gauge
Evaporator
Condenser
Filter
Expansion valve
1’’ BSP Water outlet
1’’ BSP Water inlet
M11F
Check valve
Fanspeedcontrol
connection
Check valve
3TW55065-1A
EUWAC8-10FZW
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
P Spinned pipe
M1C Compressor
S1HP High pressure switch
R3T Water inlet temp. sensor
R4T Water outlet temp. sensor
S4LP Low pressure switch
M11F Condenser fan motor
Low pressure gauge
High pressure
gauge
Condenser
Filter
Expansion valve
1’’ BSP Water outlet
1’’ BSP Water inlet
Check valve
Fanspeedcontrol
connection
Check valve
Evaporator
M11F
Check valve
